HS016-9 16-Core Optical Termination Closure IP65 FTTH Splice Box with 2×1:8 Splitters myhopshun
Product Description
What makes this terminal box stand out with its “mid-span cable entry + dual splitter” capability?
Most 16-core terminal boxes only support end-entry cabling and accommodate a single splitter. The HS016-9 features a mechanical seal and a mid-span entry design, allowing the feeder cable to pass through the center of the box while branching off—enabling splitting without cutting the main cable, which is crucial for expanding existing backbone networks. It supports two 1×8 splitter modules, offering flexible configurations for either 1×16 or dual 1×8 outputs, allowing a single box to serve two different network topologies.

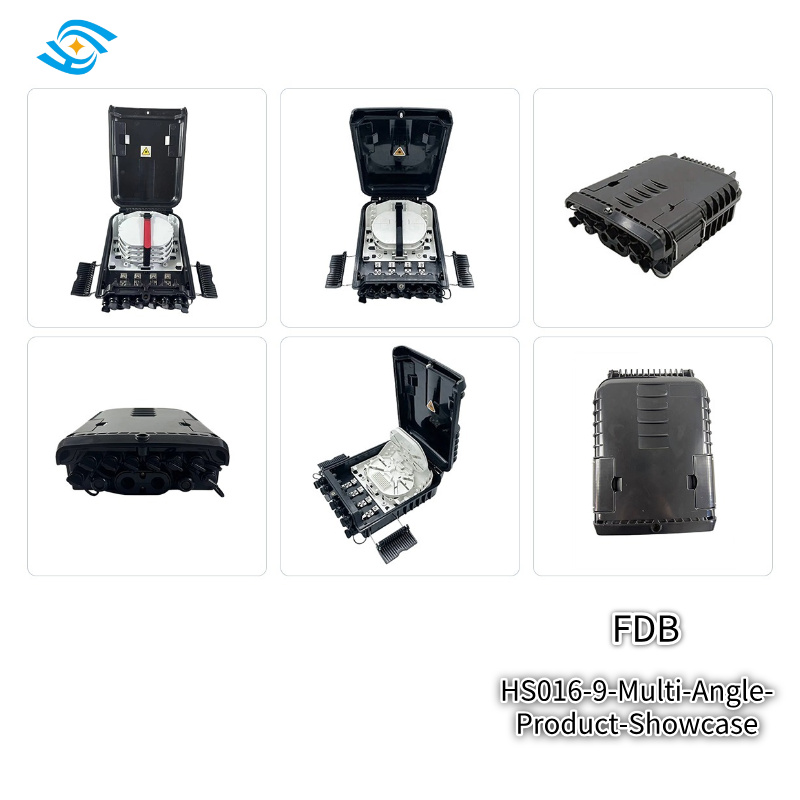

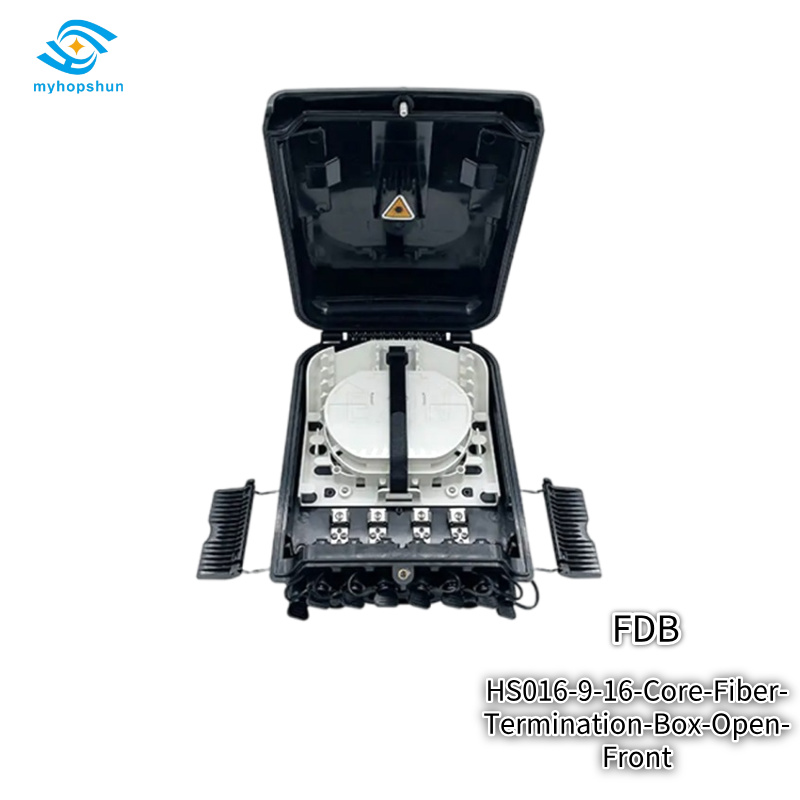

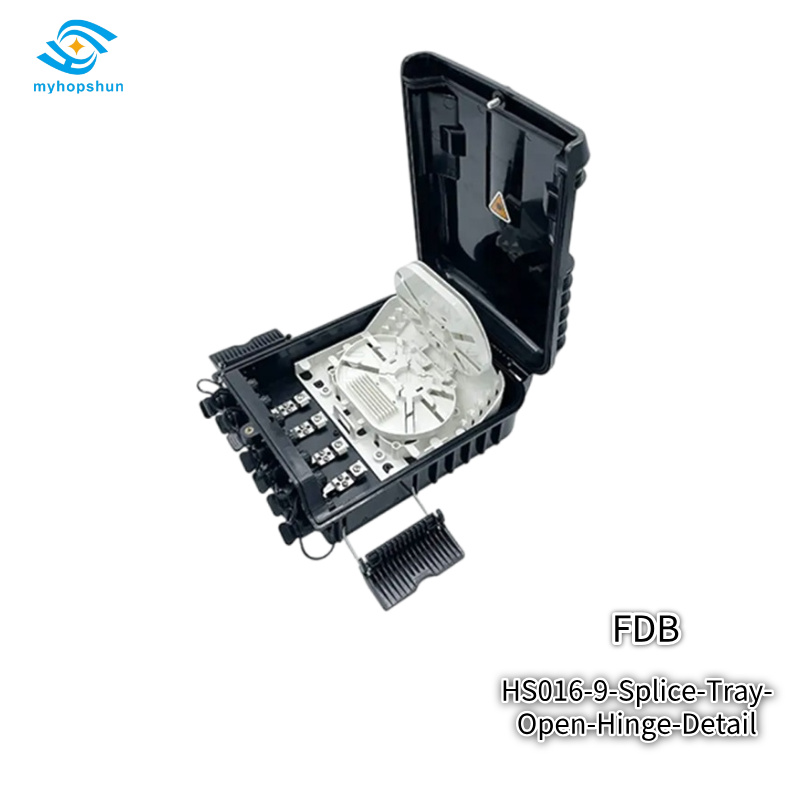

Multi-layer hinged splice trays: White, circular splice trays are hinged on one side, allowing each layer to be flipped open independently for access. It supports up to two layers, each accommodating 16-core splicing. This design prevents fiber stacking, provides ample working space, and maintains a fiber bend radius of ≥40mm.

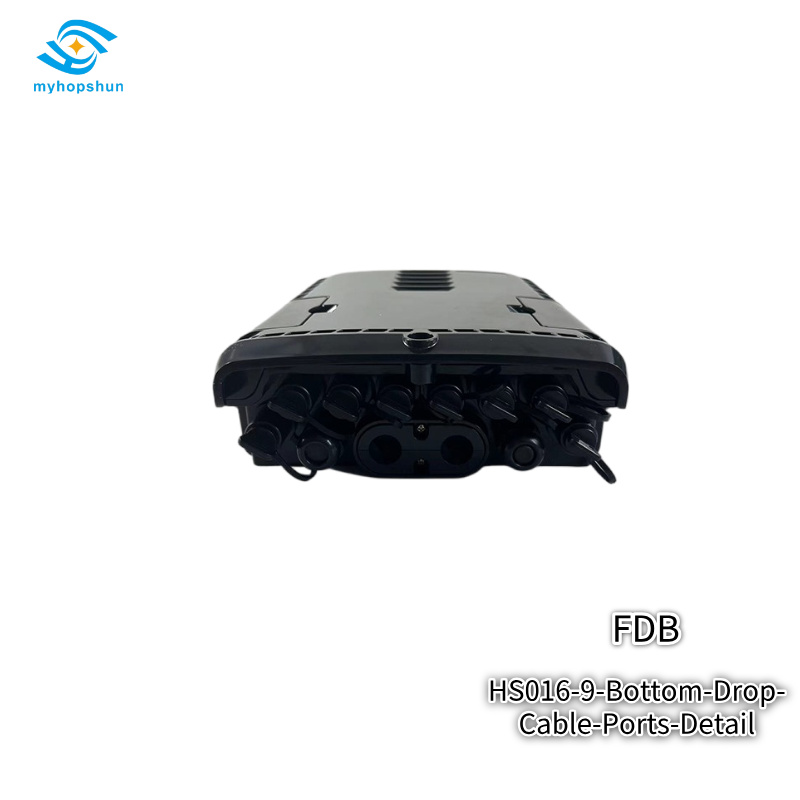

16-port drop cable output: A row of black waterproof connectors at the bottom supports up to 16 drop cable outputs, compatible with either round (4.5–5.3mm) or flat/drop (2.0×3.0mm) cables.
Independent input/distribution ports: The oval port contains four openings—two for 8–15mm main feeder cables and two for 5–8mm distribution cables—ensuring physical separation between the main and distribution cables.
All-stainless steel hardware: Internal components utilize stainless steel plates and rust-resistant bolts and nuts, ensuring corrosion resistance during long-term outdoor use.
Mechanical seal + latching system: A dual-sealing structure combining screws and latches, along with an IP65 protection rating, ensures stable operation in harsh outdoor environments.

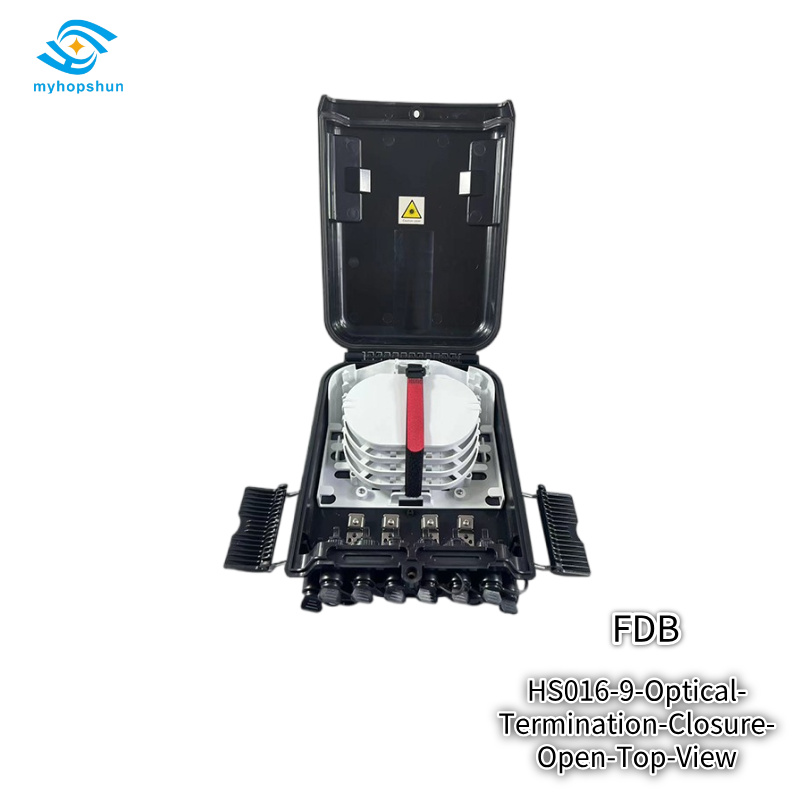

Flip-top lid: A compact design paired with a flip-top lid ensures ease of operation and comprehensive functionality. Environmental and Optical Performance
Operating temperature: -40 to +80°C
Insertion loss: ≤0.2 dB (1310 nm & 1550 nm)
Adapter type: SC & LC
Protection rating: IP65
Transmission ports: 16 cores
Key Application Scenarios
High-density splitting nodes in FTTH access networks.
Termination points for feeder cables and drop cables in ODN networks.
Optical communication systems, LANs, and fiber-optic broadband access networks.
Capacity expansion projects requiring mid-span cable entry or dual-splitter configurations.
Specification
| Parameter | Technical Specification |
|---|---|
| Model | HS016-9 |
| Product Type | Optical Termination Closure (16-Core FTTx Splice Box) |
| Dimensions (L×W×H) | 290 × 210 × 80 mm |
| Material | Reinforced Thermoplastic (Black) |
| Applicable Environment | Indoor / Outdoor |
| Installation Method | Wall-mounted / Pole-mounted |
| Cable Type | FTTH Cable |
| Input Cable Diameter | 2 ports for cables 8–15 mm |
| Distribution Cable Diameter | 2 ports for cables 5–8 mm |
| Drop Cable Compatibility | Flat cables: 16 ports with 2.0 × 3.0 mm |
| Operating Temperature | -40℃ ~ +80℃ |
| IP Protection Degree | IP65 |
| Adapter Type | SC & LC |
| Insertion Loss | ≤0.2 dB (1310nm & 1550nm) |
| Port of Transmission | 16 Fibers |
| Max Splice Capacity | 2 trays × 16 fusions = 32 fusions |
| Adapter Tray Capacity | Up to 16 positions |
| Splitter Capacity | Up to 2 × 1×8 splitters |
| Fiber Bend Radius Control | ≥ 40 mm |
| Sealing Method | Mechanical seal (screws + buckles) |
| Metal Parts | Stainless steel plate, anti-rusting bolts & nuts |
| Mid-Span Cable Entry | Supported |
Faq
Q1: What is the HS016-9 used for?
A: It is an optical termination closure (16-core FTTx splice box) used as a distribution and termination point between feeder cables and drop cables in FTTx networks.
Q2: How many drop cables does it support?
A: Up to 16 drop cables, compatible with flat cables (2.0×3.0mm) and round cables (4.5~5.3mm).
Q3: Does it support splitters?
A: Yes. It supports up to 2 × 1×8 splitters, which can be combined for 1×16 or dual 1×8 output topologies.
Q4: What is the maximum splice capacity?
A: Up to 2 splicing trays with 16 fusions each, plus an adapter tray with up to 16 positions.
Q5: Does it support mid-span cable entry?
A: Yes. The mechanical seal structure supports mid-span cable entry, allowing feeder cables to pass through without being cut.
Q6: What is the input cable diameter range?
A: 2 ports for cables 8–15mm, and 2 ports for cables 5–8mm.
Q7: What is the fiber bend radius?
A: ≥40 mm, ensuring low signal loss.
Q8: What material are the internal parts made of?
A: All stainless steel plate with anti-rusting bolts and nuts.
Q9: What is the operating temperature range?
A: -40℃ to +80℃.
Q10: Is it suitable for outdoor use?
A: Yes. It has IP65 protection and supports both indoor and outdoor wall/pole mounting.
