Fibre optic patch cord

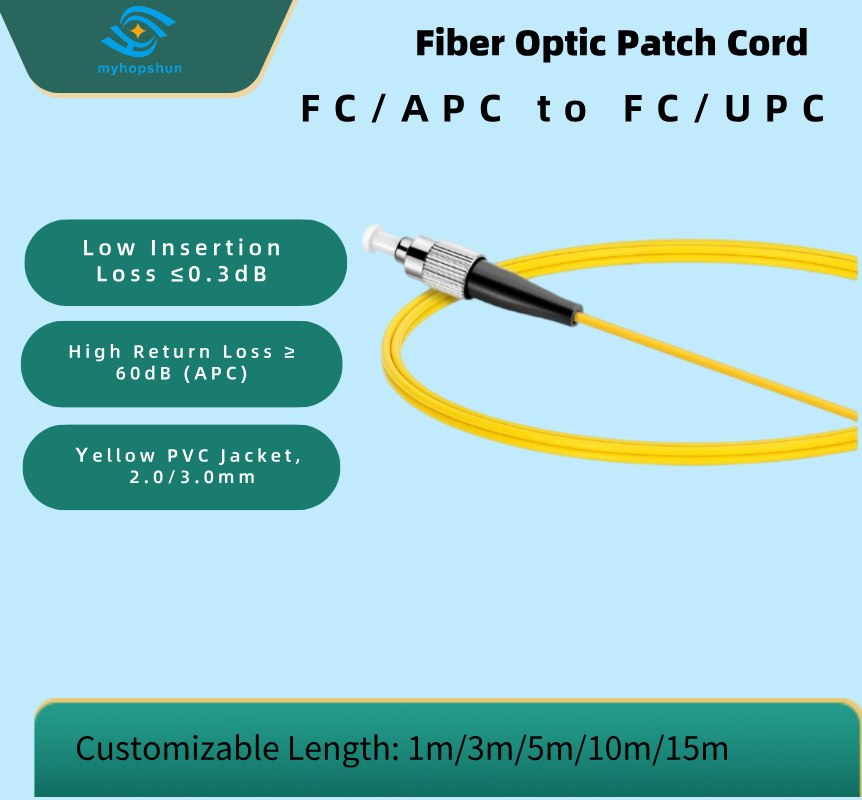

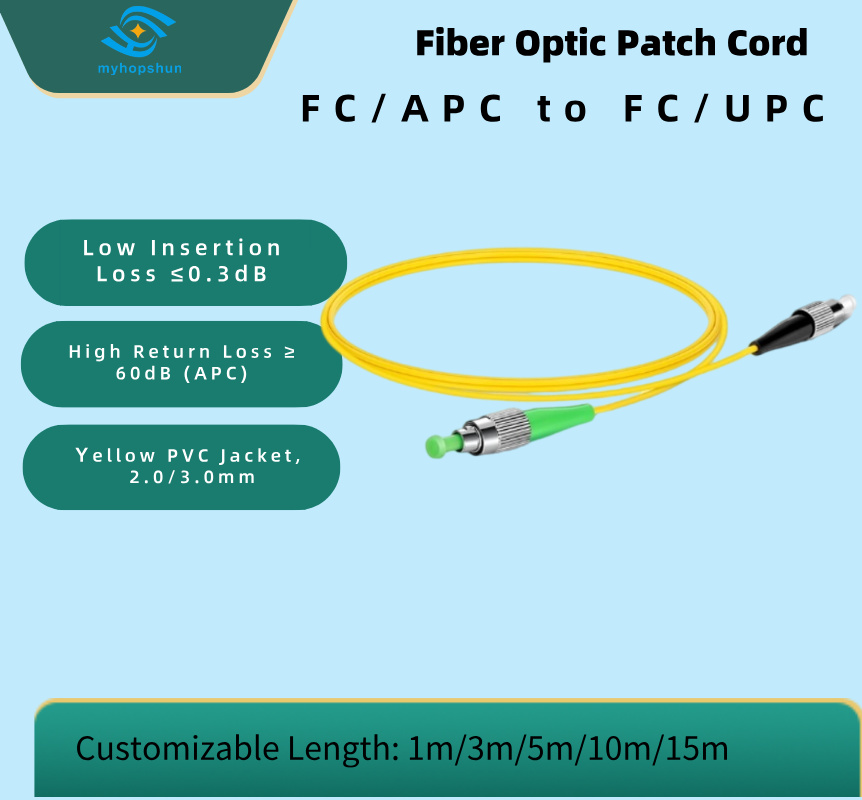

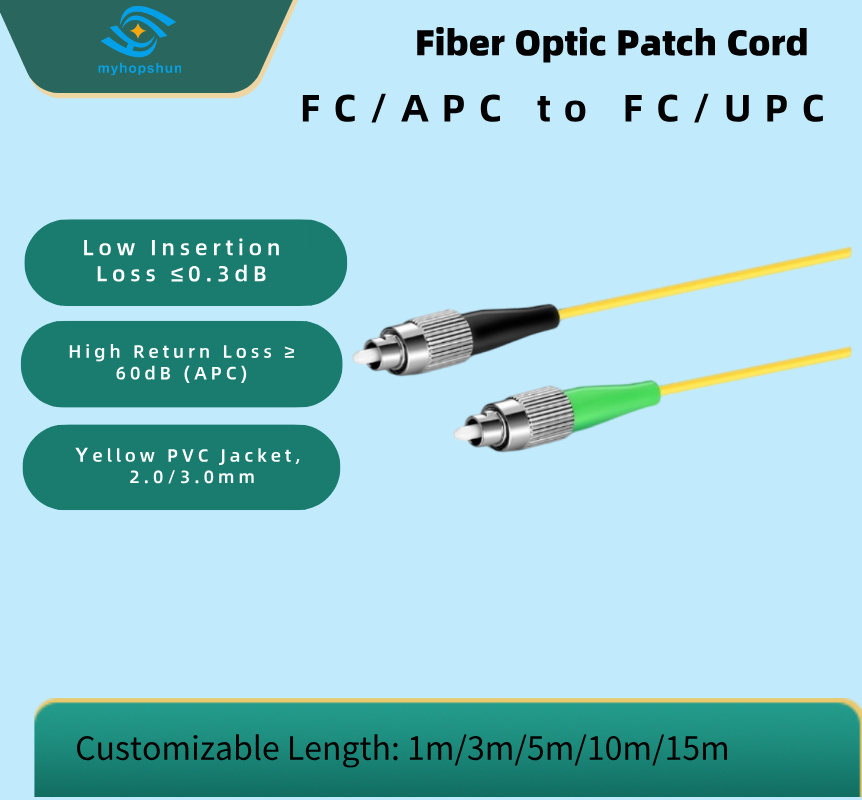

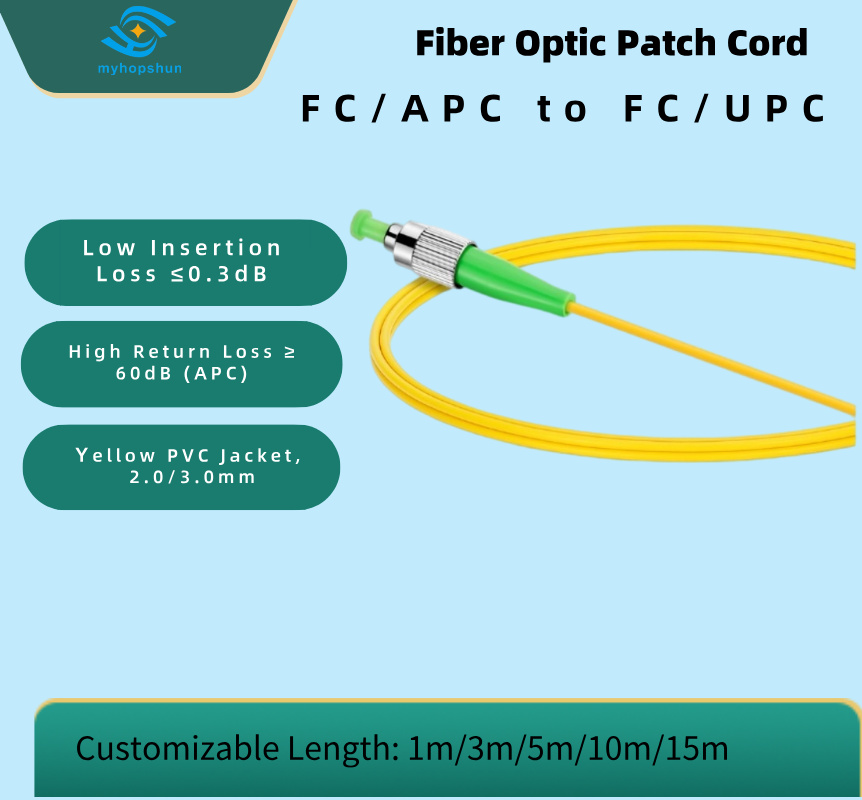

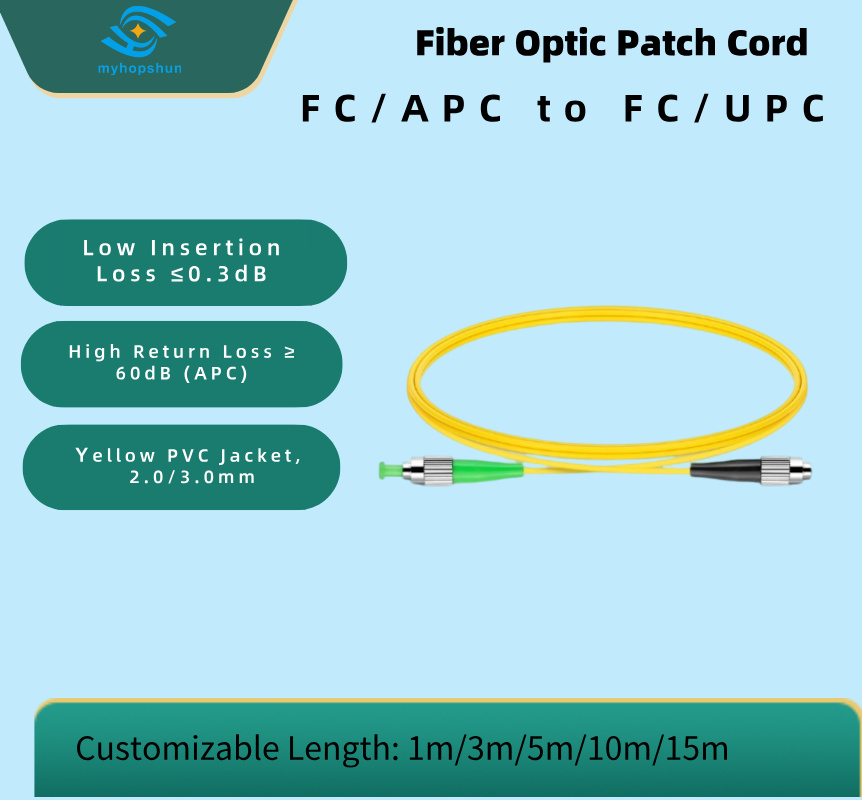

FC APC-FC UPC SM Simplex
Product Description
Key Advantages
Cross-face compatibility, solving connection challenges
One end features an FC/APC 8-degree beveled face, effectively suppressing reflected light with a return loss of ≥55dB, making it suitable for return loss-sensitive systems such as CATV and PON.
The other end features an FC/UPC ultra-planar face, with insertion loss as low as ≤0.3dB, compatible with the vast majority of standard optical equipment interfaces. Precisely addresses the challenge of connecting ‘APC equipment to UPC equipment’, eliminating the need for additional adapters and providing a one-step solution.
Single-mode fibre, worry-free long-distance transmission
Utilises high-quality G.652D/G.657A1 single-mode fibre (OS1/OS2 compatible), supporting high-speed transmission from 1Gbps to 100Gbps.
Low attenuation and low dispersion characteristics ensure distortion-free and lossless signal transmission over long distances, meeting the performance requirements of both backbone and access networks.
Robust, durable, stable and reliable
Yellow LSZH (low-smoke, zero-halogen) flame-retardant outer sheath, offering abrasion resistance, resistance to ageing and corrosion, ensuring safe and durable indoor cabling.
High-precision ceramic ferrules with end faces polished using specialist equipment ensure perfect fibre-to-fibre alignment, minimising signal loss.
FC threaded connector design provides a secure, non-loosening connection with strong vibration resistance, making it suitable for both frequent plugging and unplugging in equipment rooms and long-term fixed installations.
Wide Range of Applications
Cabling between racks in mobile equipment rooms and data centres
FTTx and PON network connections for optical modems, OLTs and splitters
Optical transmission systems for broadcasting (CATV), security surveillance and industrial control
Upgrades and expansions of enterprise campus networks, school networks and hospital networks
Flexible Specifications, Customised to Your Needs
Standard lengths available: 1m/2m/3m/5m/10m-50M; custom lengths can be provided to meet specific project requirements.
Cable diameters available: 2.0mm/3.0mm, meeting flexibility and mechanical strength requirements for various cabling environments
Specification
Brand: myhopshun Ferrule: High-Performance Ceramic Ferrule
Model No.: 001 Performance: Insertion Loss ≤0.3dB, Return Loss ≥50dB
Product Name: FC-FC Fiber Optic Patch Cord Specifications: FC-FC Single-Mode 9/125
Type: Single-Mode Simplex After-Sales: Sincere Service, Quality Assured
| Connector | ReturnLoss (dB) |
Insertion Loss (dB) |
Repeatability (dB) |
Mating Cycles | Operating Temperature (℃) |
Tensile Strength (N) |
| PC (SM) | ≥45 | ≤0.2 (Typical) ≤0.3 (Max) | ≤0.1 | ≥1000 / ≥500 | -20℃ ~ 85℃ | ≥90 (Φ3) |
| UPC (SM) | ≥50 | ≤0.2 (Typical) ≤0.3 (Max) | ≤0.1 | ≥1000 / ≥500 | -20℃ ~ 85℃ | ≥70 (Φ2) |
| APC (SM) | ≥60 | ≤0.2 (Typical) ≤0.3 (Max) | ≤0.1 | ≥1000 / ≥500 | -20℃ ~ 85℃ | ≥70 (Φ2) |
