Fibre optic patch cord

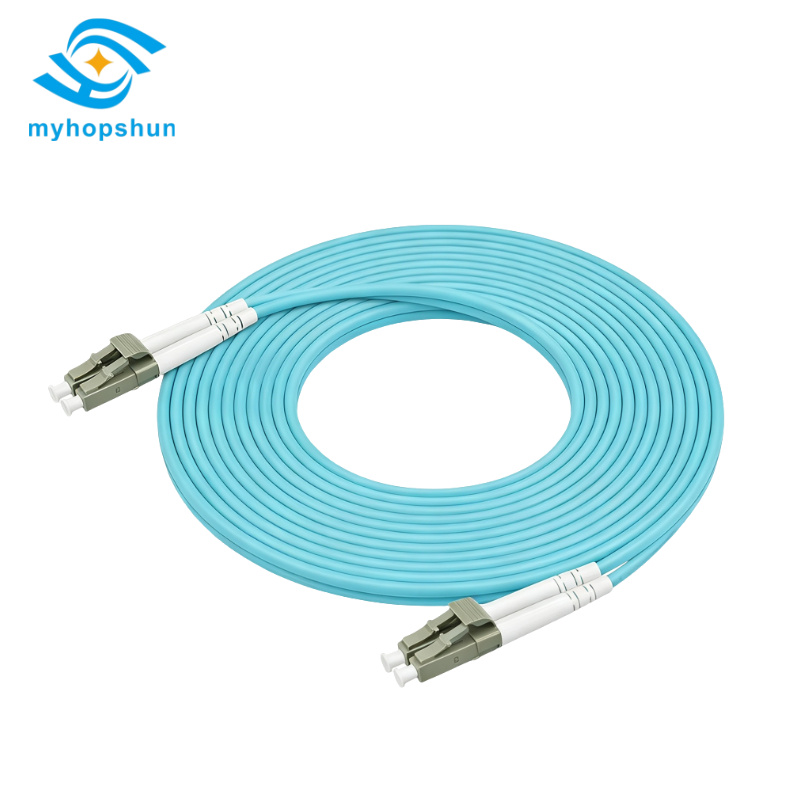

LC to LC OM3 Duplex Fiber Optic Patch Cord, 10 Gigabit 50/125μm Aqua Jumper Cable
Professional LC-LC OM3 multimode fiber patch cord built for stable 10G network transmission. Adopts high-quality ceramic ferrules to ensure low insertion loss and outstanding signal performance. Widely applied in data centers, server rooms, enterprise LAN and optical communication systems. Custom lengths and bulk orders are supported.
Product Description
Our OM3 duplex fiber patch cord with LC connectors delivers reliable high-speed data transmission for 10G Ethernet networks. With standard 50/125μm fiber core and durable aqua outer jacket, this cable features precise polishing technology to minimize signal loss. It is a reliable choice for commercial networking, data center cabling and optical device connection. We offer flexible length options and wholesale service for global buyers
Specification
| Parameter | Details |
| Product Name | LC-LC OM3 Multimode Fiber Optic Patch Cord |
| Connector Type | LC UPC to LC UPC (Duplex) |
| Fiber Type | OM3 Multimode, 50/125μm |
| Jacket Color | Aqua (OM3 Standard) |
| Jacket Material | PVC (LSOH optional) |
| Cable Diameter | 3.0mm (customizable) |
| Insertion Loss | ≤ 0.3dB (typical ≤ 0.2dB) |
| Return Loss | ≥ 50dB |
| Operating Wavelength | 850nm / 1300nm |
| Supported Bandwidth | 10Gbps up to 300m (10GBase-SR) |
| Operating Temperature | -20℃ ~ +70℃ |
| Mating Durability | ≥ 1000 times |
| Available Lengths | 0.5m, 1m, 2m, 3m, 5m, 10m (custom lengths supported) |
| Application | Data centers, enterprise networks, SFP/SFP+ transceivers, 10G Ethernet |
