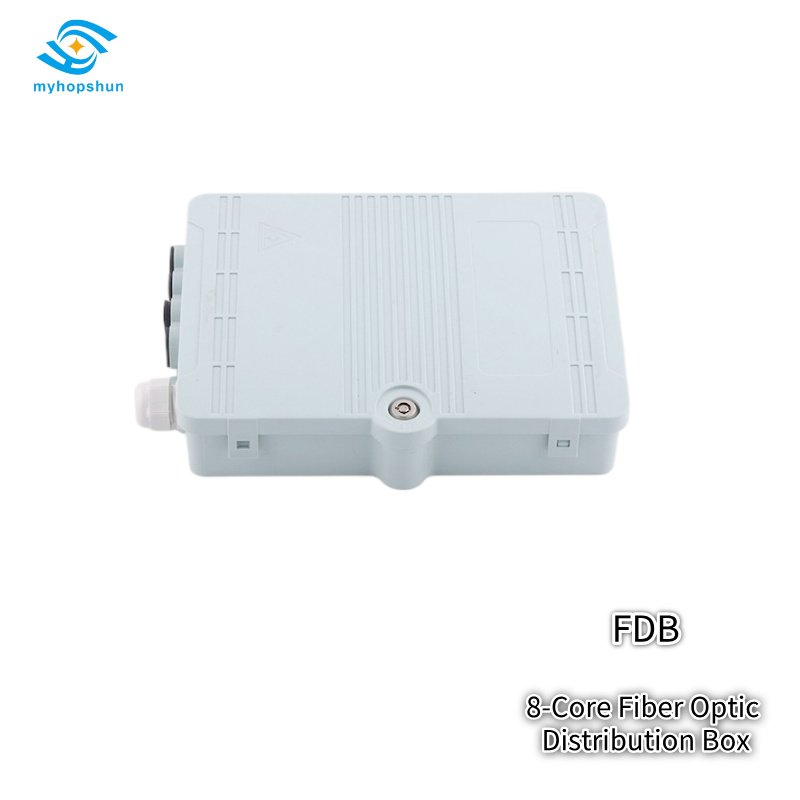

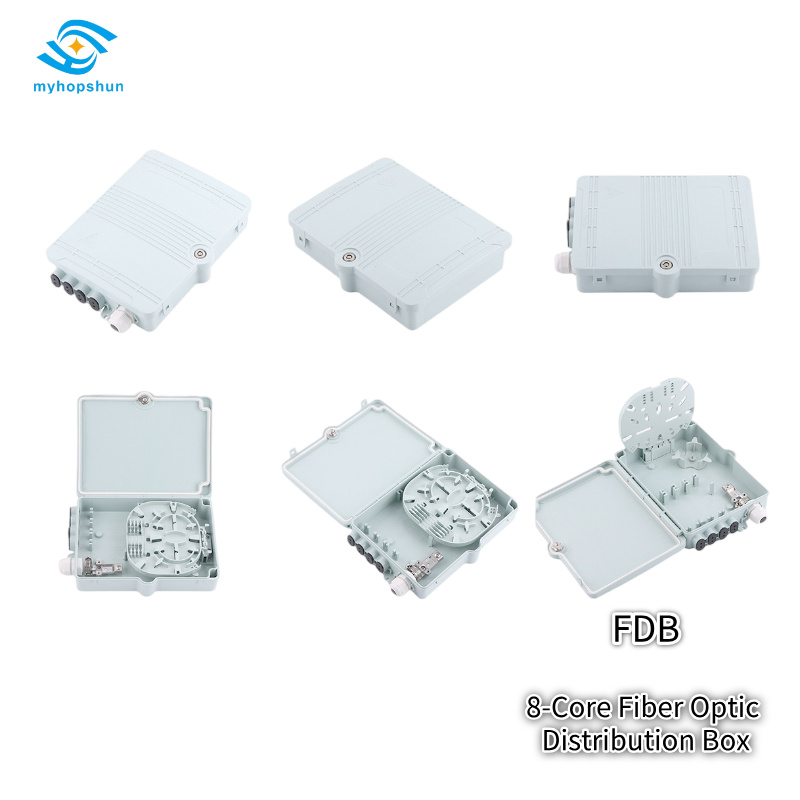

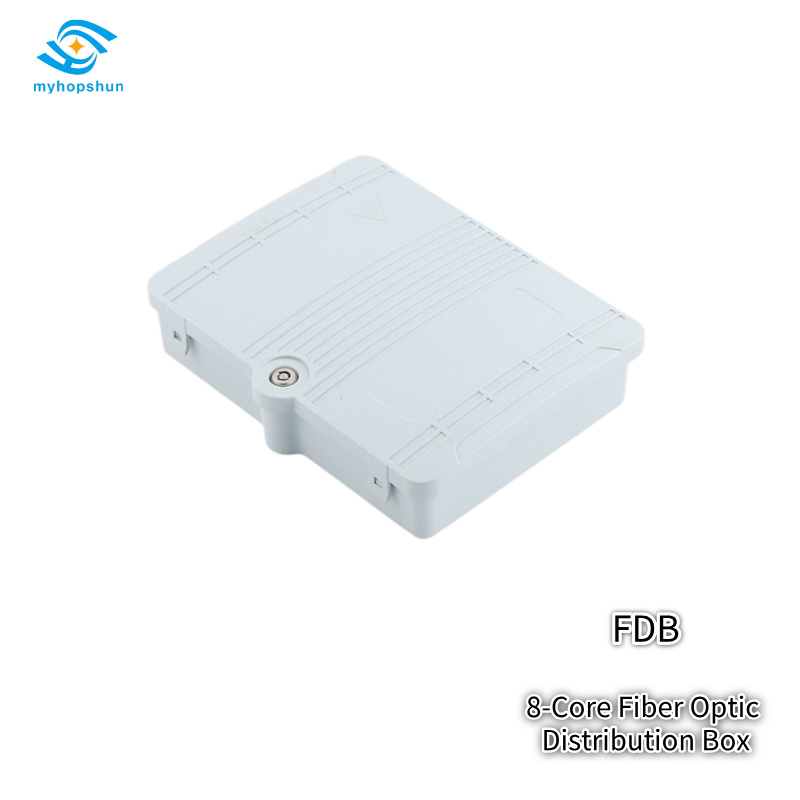

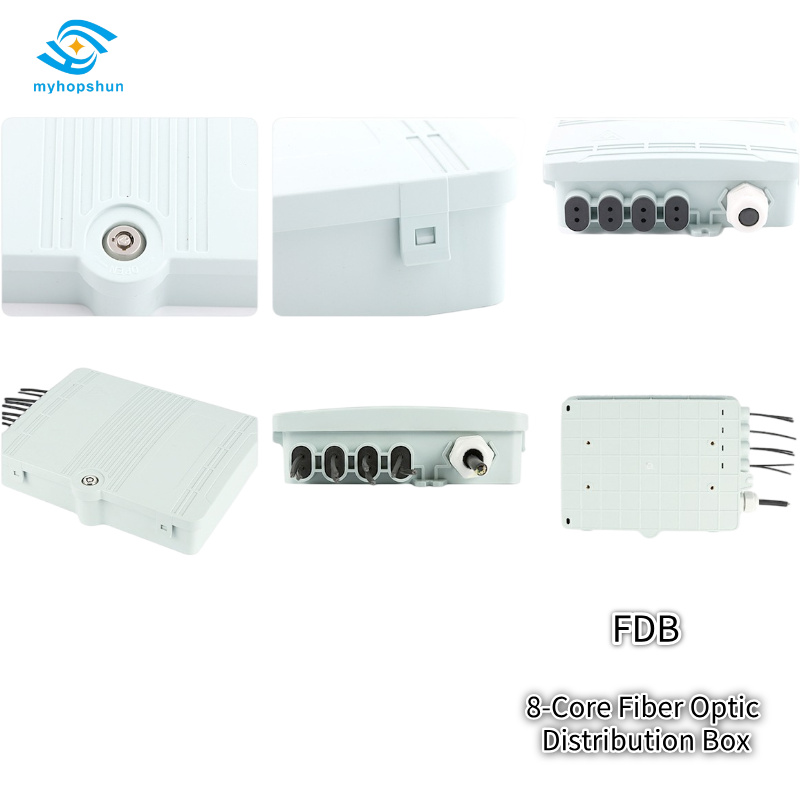

HS-002B Indoor Fiber OpticIndoor Fiber Optic Wall-Mount Box 8Core SC/LC Termination Box Indoor Fiber Optic
Product Description
The HS-002B is a fiber optic rosette box designed specifically for indoor FTTH applications. Serving as a termination point for incoming fiber cables and patch cords, it integrates fiber splicing, termination, storage, and cable connection capabilities. The unit features a flush-mount frame design, a protective cover with a dust-proof structure, and an IP65 protection rating. Its unique internal splice tray and cable management posts ensure that fibers maintain an optimal bend radius. Supporting SC simplex or LC duplex adapters with a maximum capacity of 8 fibers, it is widely used in residential settings or enterprise workspace subsystems.
An “Invisible” Fiber Manager for Indoor Workspaces
Unlike outdoor distribution boxes, the HS-002B is designed to provide neat, precise fiber management within indoor environments. It utilizes a flush-mount frame design, making installation and removal extremely simple. The cover features a protective door and dust-proof structure; while maintaining an IP65 protection rating, it also balances indoor aesthetics with practicality.
Broad Cable Compatibility: It is compatible with 5m, 10m, and 20m transparent fiber cables. It supports 125μm fiber diameters (G.652 & G.657) and accommodates tight-buffered cladding diameters of 250μm and 900μm. It handles both simplex and duplex applications with ease.

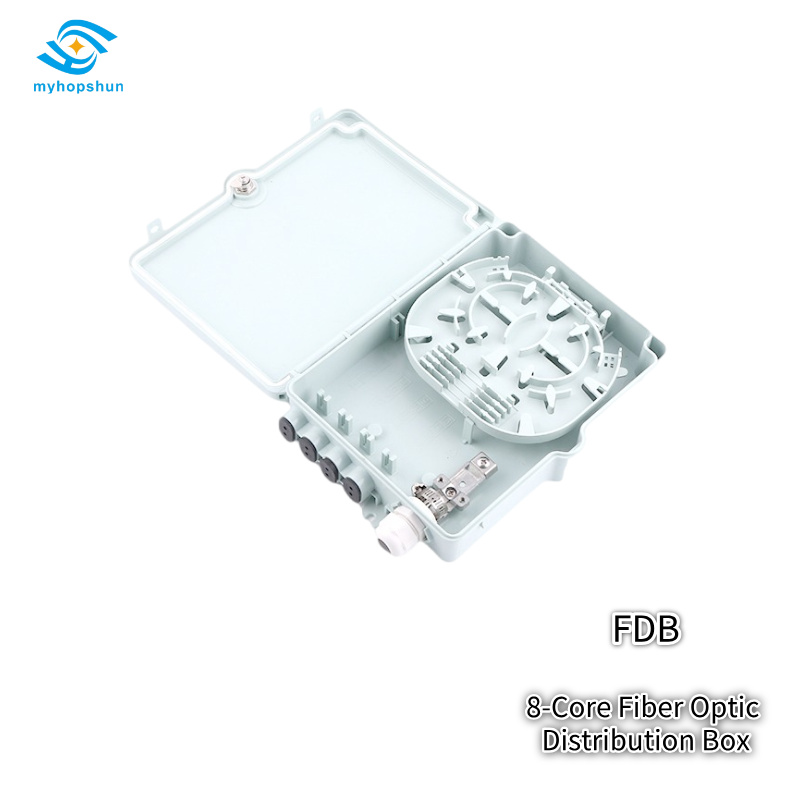

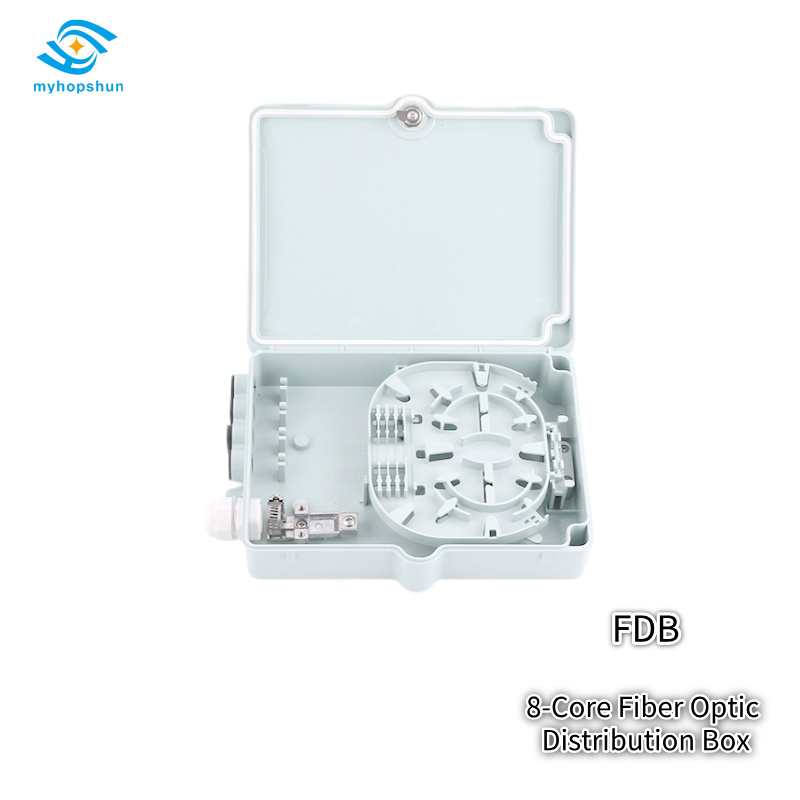

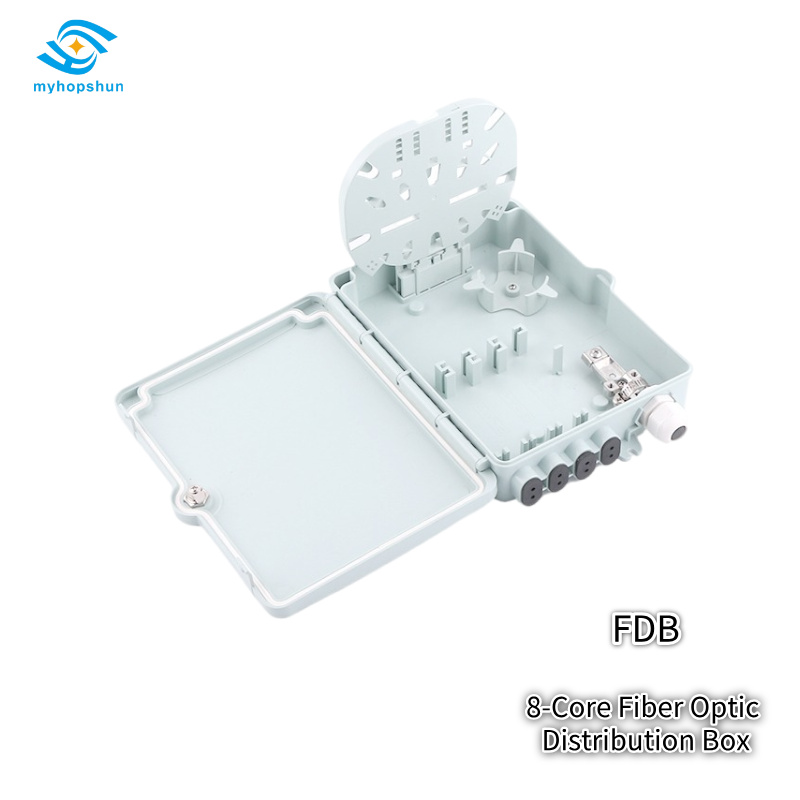

Flexible Adapter Options: Supports SC simplex or LC duplex adapters with a maximum capacity of 8 fibers (8 SC/FC ports). Integrated internal splice trays and cable management posts ensure that incoming cables and pigtails are routed separately without interference.
FAQ
Q1: What is the HS-002B used for?
A: It is an indoor FTTH fiber optic wall-mount termination box (fiber rosette box), used as a termination point between incoming drop cable and patch cord in home or office workspace subsystems.
Q2: What is the maximum capacity of the HS-002B?
A: It supports up to 8 cores, with SC simplex or LC duplex adapters (8 SC/FC output).
Q3: What is the insertion loss of this box?
A: ≤0.2 dB at both 1310nm and 1550nm.
Q4: What cables are compatible with the HS-002B?
A: It is compatible with 5m, 10m, and 20m transparent optical cables, supporting 125μm fiber (G.652 & G.657) and 250μm/900μm tight-buffered cladding.
Q5: Is it suitable for outdoor use?
A: It is primarily designed for indoor FTTH applications. It has an IP65 protection rating but is not intended for long-term outdoor exposure.
Q6: What is the working temperature?
A: -40℃ to +85℃.
Key Application Scenarios
Indoor terminal box for FTTH (Fiber to the Home).
Workspace subsystems in homes, offices, or enterprises.
Indoor fiber termination points requiring discreet and tidy cabling.
Specification
| Parameter | Technical Specification |
|---|---|
| Model | HS-002B |
| Product Type | Fiber Rosette Box (Indoor FTTH Terminal Box) |
| Dimensions (L×W×H) | 213 × 163 × 47 mm |
| Max Capacity | 8 Cores |
| Adaptor Type | SC Simplex or LC Duplex |
| Output | 8 SC / FC |
| Application Cable | 5m / 10m / 20m transparent optical cable |
| Fiber Diameter | 125μm (G652 & G657) |
| Tight Cladding Diameter | 250μm & 900μm |
| Mode of Application | Single mode & Duplex mode |
| Tensile Strength | >50 N |
| End-use Temperature | -40 ~ +85 ℃ |
| Insertion Loss | ≤0.2 dB (1310nm & 1550nm) |
| Protection Level | IP65 |
