HS096-25 Dome FOSC 96-Core Fiber Optic Splice Closure IP68 5-Port ADSS/OPGW/FTTx myhopshun
Product Description
Why is the 96-core medium-capacity Dome FOSC the optimal choice for the ODN aggregation layer?
In FTTx, ODN, ADSS, and OPGW fiber optic networks, aggregation layer nodes require greater capacity than terminal nodes (12–24 cores) but do not need the massive volume of backbone nodes (144–288 cores). The 96-core medium-capacity Dome FOSC perfectly bridges this gap, offering ample splicing space while maintaining a reasonable size and weight.
The HS096-25 features a medium-sized design (435×190mm), reserving sufficient space for 96-core splicing (or up to 288 cores for ribbon fiber). It includes an air pressure test valve for convenient post-installation airtightness checks. An earthing device provides effective lightning protection and passes the DC 15kV withstand voltage test. Booklet-style splice trays allow each tray to be flipped open independently for operation, maintaining a fiber bend radius of ≥30mm to ensure low signal loss.

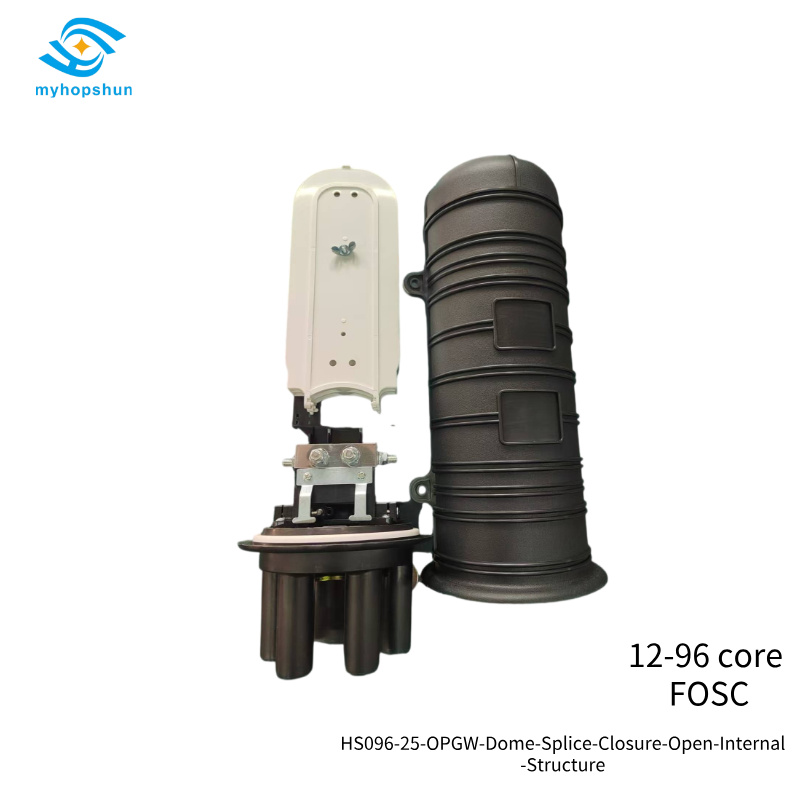

Dome-style structure: A black cylindrical housing with a plastic clamp-locking mechanism at the top, ensuring an IP68 seal.
5 universal cable ports: The base features 5 universal ports accommodating cables with diameters of Φ8–Φ25mm. Three small ports accommodate single Φ16mm cables, while one large port accommodates either one Φ25mm cable or two Φ21mm cables.

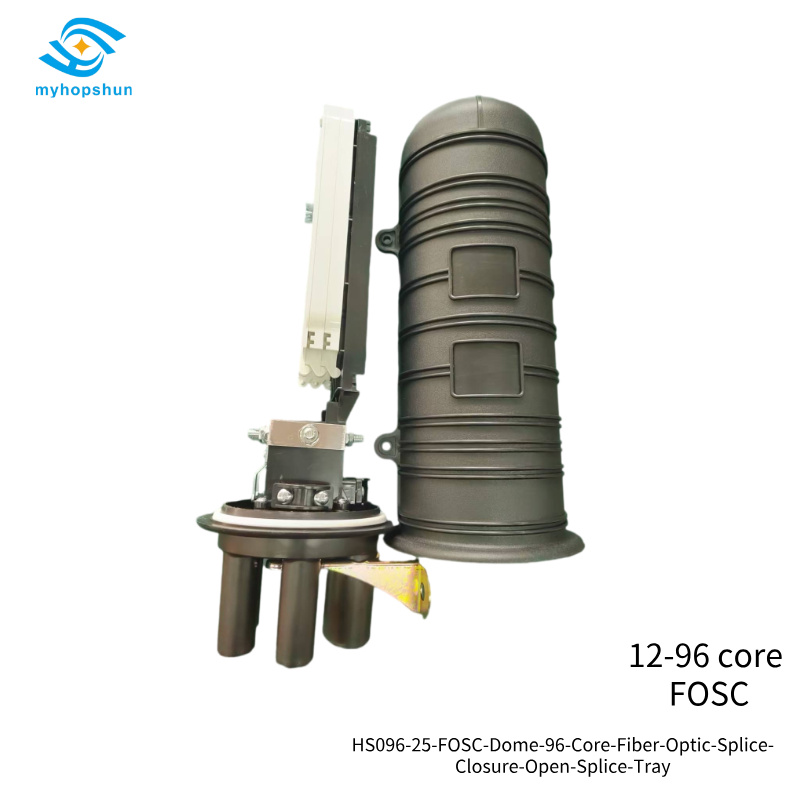

Booklet-style splice trays: White splice trays that flip open like the pages of a book; each tray holds 12 or 24 cores, with a maximum capacity of 6 trays (for loose-tube/bundled fiber).
Plastic clamp lock + metal mounting bracket: An external plastic clamp combined with a metal clamp and mounting bracket ensures IP68 protection and supports aerial installation. Heat-shrink sealed cable entry: Uses a heat-shrink sealing method and accommodates optical cables with diameters of Φ8–Φ25 mm.
Air pressure test valve + grounding terminal: Enables airtightness testing; provides lightning protection and passes the DC 15 kV withstand voltage test. Re-openable design: Can be reopened after installation, facilitating future capacity expansion and maintenance.
Fiber bend radius ≥30mm: Ensures low signal loss.
Environmental and Performance Parameters
Dimensions: 435 × 190 mm (Height × Diameter)
Weight: 2350 – 2600 g (depending on configuration)
Material: High-quality engineering plastic
Color: Black
Maximum capacity (loose tube/bundle): 96 fibers
Maximum capacity (ribbon): 288 fibers
Fibers per tray: 12 or 24 fibers (loose tube/bundle) / 6 ribbons
Maximum number of trays: 6 trays (loose tube/bundle) / 4 trays (ribbon)
Port configuration: 5 universal cable entry/exit ports
Cable diameter: Φ8 – Φ25 mm
Protection rating: IP68 ⭐
Cable entry sealing: Heat-shrink sealing
Housing sealing: Silicone gasket + plastic clamp ring
Operating temperature: -40°C to +65°C
Fiber bend radius: ≥30mm
Air pressure test valve: Included ⭐
Grounding device: Included ⭐
Withstand voltage test: DC 15kV/1min (no breakdown, no flashover) ⭐
Insulation resistance: ≥2×10⁴ MΩ ⭐
Key Application Scenarios
Medium-capacity fusion splicing node at the FTTx/ODN aggregation layer (up to 96 fibers for loose tube/bundle, 288 fibers for ribbon).
Straight-through or branching connections for ADSS and OPGW overhead cables.
Splice protection for HDPE duct cables and direct-buried cables.
Long-term damp environments such as underground utility tunnels, cable ducts, and handholes (IP68).
Specification
| Parameter | Technical Specification |
|---|---|
| Model | HS096-25 (also known as GHG-701) |
| Product Type | Dome Fiber Optic Splice Closure (FOSC) |
| Dimensions (H × Diameter) | 435 mm × 190 mm |
| Weight | 2350 – 2600 g (depending on configuration) |
| Max Capacity (Bunchy) | 96 Cores |
| Max Capacity (Ribbon) | 288 Cores |
| Port Configuration | 5 pieces (universal in/out ports) |
| Cable Diameter | Φ8 – Φ25 mm |
| Fiber per Tray | 12 or 24 (bunchy) / 6 pieces (ribbon) |
| Max Number of Trays | 6 (bunchy) / 4 (ribbon) |
| Color | Black |
| Material | Quality Engineering Plastics |
| Protection Level | IP68 |
| Sealing of Inlet/Outlet | Heat-shrinkable sealing |
| Sealing of Shells | Silicone rubber + Plastic hoop |
| Splice Tray Type | Booklet-Style Flip Trays |
| Fiber Bend Radius | ≥30 mm |
| Working Temperature | -40℃ ~ +65℃ |
| Air Pressure Test Valve | Yes |
| Earthing Deriving Device | Yes |
| Voltage Resistance | DC 15KV/1min, no breakdown or flashover |
| Insulation Resistance | ≥2×10⁴ MΩ |
| Reusable | Yes, can be reopened and reused |
| Installation Method | Aerial (ADSS/OPGW) / HDPE Duct / Direct Buried / Wall / Handhole |
Package Information
| Parameter | Technical Specification |
|---|---|

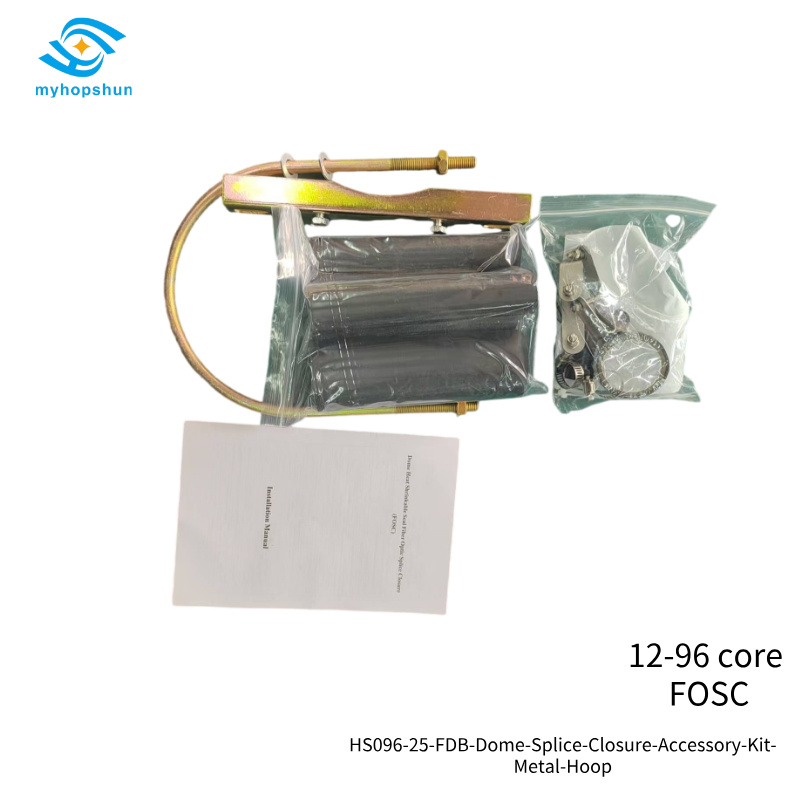

| Standard Accessories | Heat-shrink sleeves, nylon ties, heat-shrink fixing sleeves, branching clip, earthing wire, desiccant, labeling paper, special wrench, metal hoop (for wall/pole mounting), buffer tube, aluminum foil |
| Installation Manual | Included |
Faq
Q1: What is the HS096-25 used for?
A: It is a 96-core Dome FOSC (Fiber Optic Splice Closure) used for optical fiber connection and protection in FTTx, ODN, ADSS, and OPGW networks. Suitable for aerial, underground, wall-mounting, duct-mounting, and handhole-mounting.
Q2: Is it a Dome or Inline closure?
A: It is a Dome (cap-style) closure, which uses top sealing instead of side sealing for better water resistance, especially in underground and flooded environments.
Q3: What is the protection level?
A: IP68 — the highest protection rating, suitable for long-term water immersion in manholes, HDPE duct banks, and underground environments.
Q4: What is the maximum capacity?
A: 96 cores (bunchy) or up to 288 cores (ribbon), with 12–24 fibers per tray (bunchy) or 6 pieces per tray (ribbon). Max 6 trays (bunchy) or 4 trays (ribbon).
Q5: What is the port configuration?
A: 5 universal ports. Cable diameter Φ8–Φ25mm. Three small ports fit single Φ16mm cables; one large port fits one Φ25mm cable, two Φ21mm cables, or multiple smaller cables.
Q6: What material is the enclosure made of?
A: Quality engineering plastics, with good anti-erosion against acid, alkali, and salt; anti-aging; and reliable mechanical structure.
Q7: How is it sealed?
A: Triple sealing system — shells are sealed with silicone rubber and locked with plastic hoops; inlet/outlet ports use heat-shrinkable sealing.
Q8: What is the fiber bend radius?
A: ≥30 mm, ensuring low signal loss.
Q9: Does it come with an air pressure test valve?
A: Yes, it features an air pressure test valve for sealing tests after installation. Injected air pressure of 100KPa±5Kpa, immersed in water for 15 minutes without bubbles, and no pressure change over 24 hours.
Q10: Can it be reopened after installation?
A: Yes, the product can be reopened and reused after installation, making it convenient for future expansion.
Q11: What is the box size and weight?
A: Box size 435×190mm (H×Diameter); weight 2350–2600g (depending on configuration).
Q12: What is the working temperature range?
A: -40℃ to +65℃.
Q13: Is it compatible with ADSS and OPGW cables?
A: Yes, the 5 ports and Φ8–Φ25mm cable diameter range are compatible with ADSS, OPGW, and other standard FTTx cables.
Q14: What is included in the standard accessories?
A: Heat-shrink sleeves, nylon ties, heat-shrink fixing sleeves (single & mass), branching clip, earthing wire, desiccant, labeling paper, special wrench, metal hoop (for wall/pole mounting), buffer tube, and aluminum foil.
