Why is the Inline FOSC the best choice for straight-through fiber optic cable splicing?
In FTTx, ODN, ADSS, and OPGW networks, backbone cables often require straight-through splicing rather than branching. Compared to dome-style closures, inline (horizontal) closures feature a lateral sealing structure, making them easier for technicians to handle in confined spaces (such as inside HDPE conduits or on narrow utility poles).
Made from ABS/PP materials, the unit is resistant to acid, alkali, and salt corrosion as well as aging, making it suitable for long-term outdoor use. Weighing only 2.4 kg, it is the lightest closure available—allowing for single-person installation without the need for lifting equipment. Booklet-style splice trays allow each tray to be flipped open independently, maintaining a fiber bend radius of ≥40mm to ensure low signal loss.

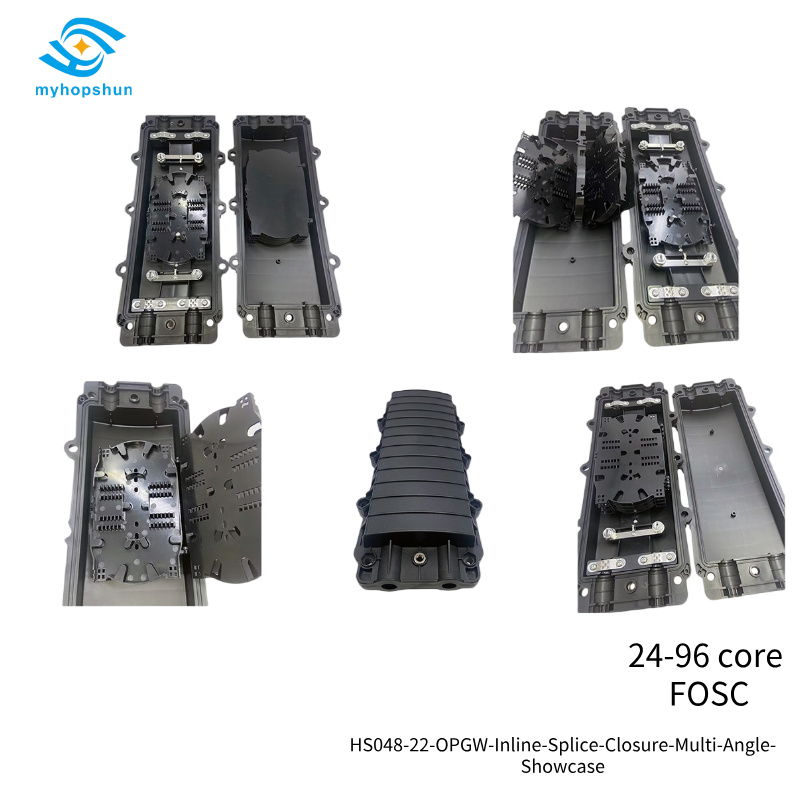

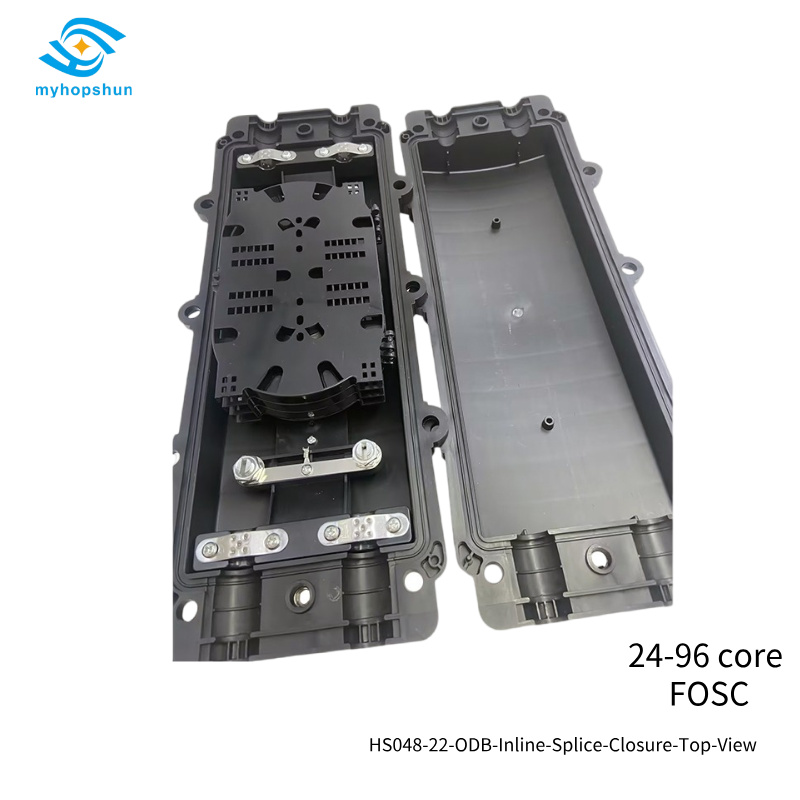

Inline Horizontal Structure: An elongated black housing with a metal clamp locking mechanism at the top, ensuring an IP68 seal.

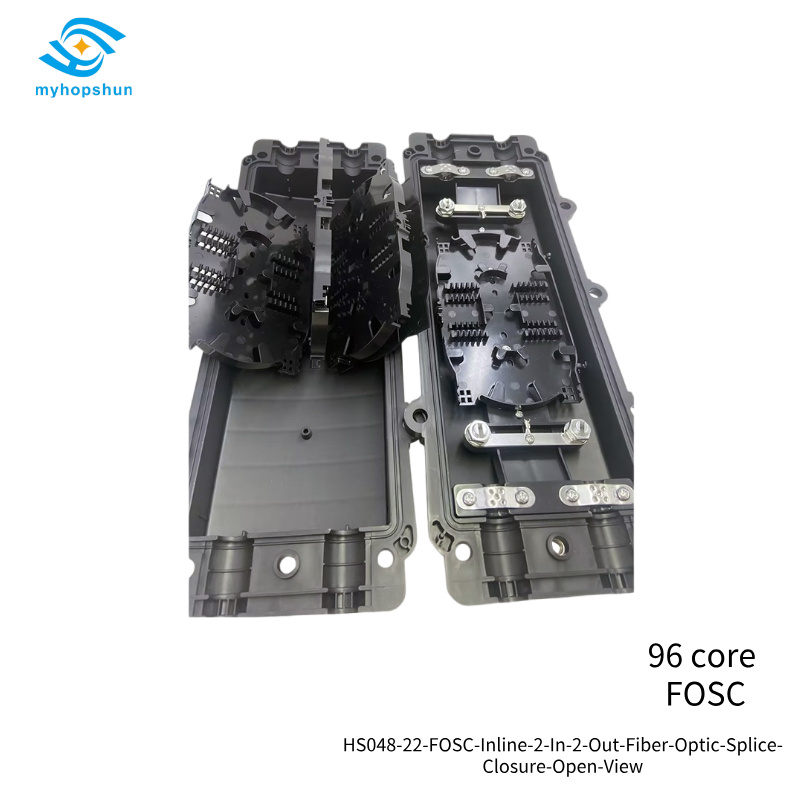

2-In/2-Out Ports: The bottom features two main cable entry ports and two exit ports, all equipped with rubber sealing plugs.

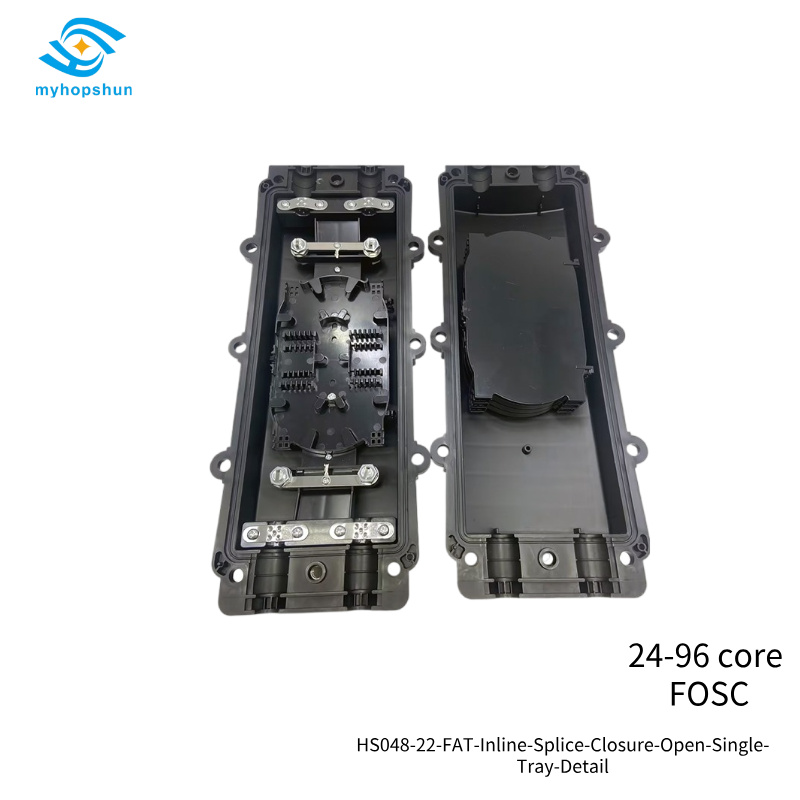

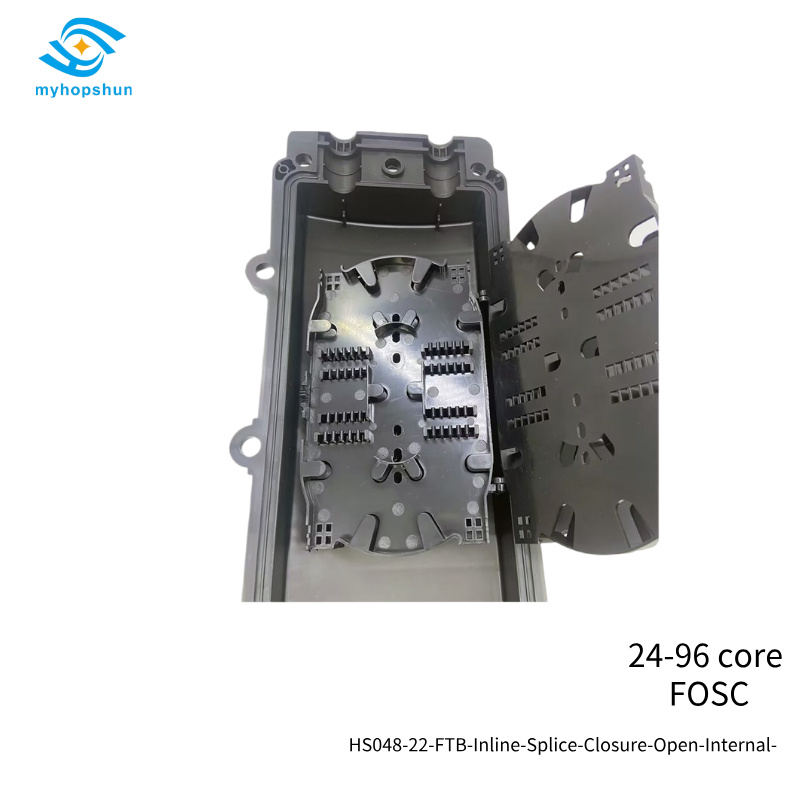

Booklet-Style Splice Trays: Black splice trays that flip open like the pages of a book; each tray holds 24 fibers, with a maximum of 4 trays providing a total capacity of 96 fibers.
Metal Clamp & Silicone Seal: An external metal clamp locks the upper and lower covers together, working with a silicone gasket to achieve IP68 protection.
Rubber Cable Port Seals: Cable entry ports utilize rubber seals, accommodating cable diameters ranging from 8mm to 17.5mm.
Re-openable Design: The unit can be reopened after installation, facilitating future capacity expansion and maintenance.
Fiber Bend Radius ≥40mm: Ensures low signal loss. Environmental and Performance Specifications
Dimensions: 480 × 155 × 110 mm
Weight: Approx. 2.4 kg
Material: ABS/PP
Color: Black
Maximum Capacity: 96 cores (Nominal capacity: 96 cores; configured as 4 trays × 24 cores/tray)
Cores per Tray: 24 cores (single-fiber)
Maximum Number of Trays: 4
Port Configuration: 2-in/2-out
Cable Entry Diameter: 8–17.5 mm
Ingress Protection: IP68 ⭐
Cable Entry Seal: Rubber seal
Housing Seal: Silicone seal
Operating Temperature: -40°C to +80°C
Fiber Bending Radius: ≥40 mm
Key Application Scenarios
Straight-through fusion splicing nodes for FTTx/ODN backbone cables.
Straight-through connections for ADSS and OPGW aerial cables.
Splice protection for HDPE conduit and direct-buried cables.
Long-term damp environments such as underground utility tunnels and manholes (IP68 rated).
Space-constrained environments requiring single-person installation (weighs only 2.4 kg).
Specification
| Parameter | Technical Specification |
|---|---|
| Model | HS048-22 |
| Product Type | Inline Fiber Optic Splice Closure (FOSC) |
| Dimensions | 480 × 155 × 110 mm |
| Weight | About 2.4 kg |
| Max Capacity | 96 Cores |
| Port Configuration | 2 In / 2 Out |
| Cable Diameter | 8–17.5 mm |
| Fiber per Tray | 24 (single core) |
| Max Number of Trays | 4 |
| Max Number of Fibers | 96 (single core) |
| Color | Black |
| Material | ABS/PP |
| Protection Level | IP68 |
| Sealing of Inlet/Outlet | Rubber seal |
| Sealing of Shells | Silicone rubber |
| Splice Tray Type | Booklet-Style Flip Trays |
| Fiber Bend Radius | ≥40 mm |
| Working Temperature | -40℃ ~ +80℃ |
| Reusable | Yes, can be reopened and reused |
| Installation Method | Overhead (ADSS/OPGW) / HDPE Duct / Direct Buried |
Package Information
| Parameter | Technical Specification |
|---|---|
| Packing Quantity | 6 sets / carton |
| Carton Size | 52.5 × 36.5 × 37 cm |
| Gross Weight | 15.5 kg / carton |
Faq
Q1: What is the HS048-22 used for?
A: It is a 96-core Inline FOSC (Fiber Optic Splice Closure) used for optical fiber connection and protection in FTTx, ODN, ADSS, and OPGW networks. Suitable for overhead, HDPE duct, and direct-buried installations.
Q2: Is it an Inline or Dome closure?
A: It is an Inline (horizontal) closure, which uses side sealing and is more suitable for straight-through splicing and narrow space installation.
Q3: What is the protection level?
A: IP68 — the highest protection rating, suitable for long-term water immersion in manholes, HDPE duct banks, and underground environments.
Q4: What is the maximum capacity?
A: 96 cores, with 24 fibers per tray and up to 4 trays.
Q5: What is the port configuration?
A: 2 input ports and 2 output ports. Cable diameter 8–17.5mm.
Q6: What material is the enclosure made of?
A: ABS/PP (Acrylonitrile Butadiene Styrene / Polypropylene), offering acid-alkali-salt resistance, anti-aging, and reliable mechanical structure.
Q7: How is it sealed?
A: Double sealing system — shells are sealed with silicone rubber and locked with metal hoops; inlet/outlet ports use rubber seals.
Q8: What is the fiber bend radius?
A: ≥40 mm, ensuring low signal loss.
Q9: Can it be reopened after installation?
A: Yes, the product can be opened again and reused after installation, making it convenient for future expansion.
Q10: What is the box size and weight?
A: Box size 480×155×110mm; weight about 2.4kg.
Q11: What is the working temperature range?
A: -40℃ to +80℃.
Q12: Is it compatible with ADSS and OPGW cables?
A: Yes, the 8–17.5mm cable ports are compatible with ADSS, OPGW, and other standard FTTx cables.
Q13: What is the packing information?
A: 6 sets per carton; carton size 52.5×36.5×37cm; gross weight 15.5kg per carton.
