HS032-14 Fiber Distribution Box 32-Core Splitter Splice IP55 Large-Capacity FTTx Terminal myhopshun

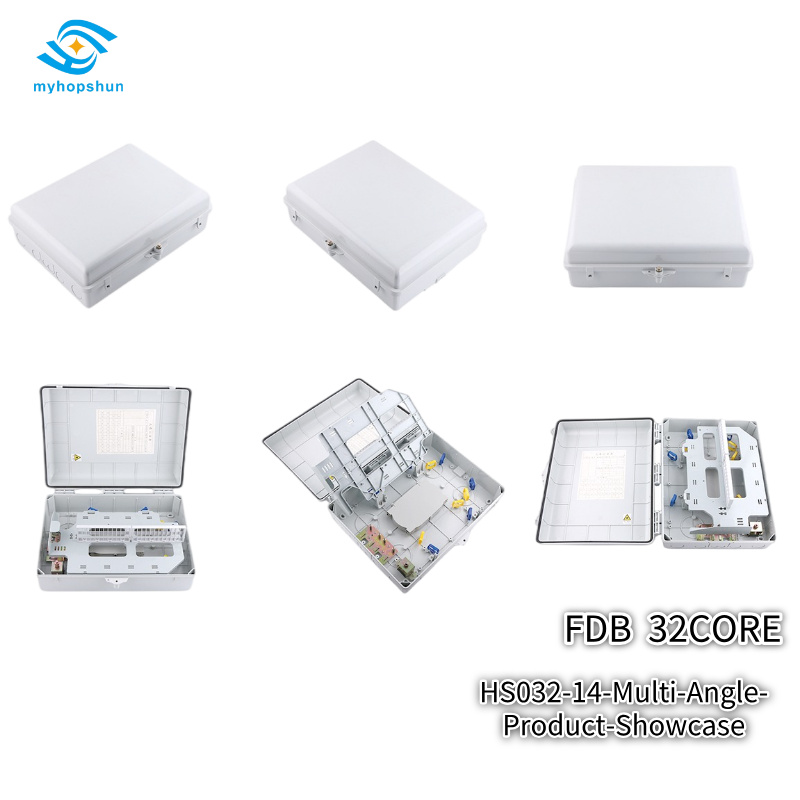

Product Description
Why is the “32-core + IP55 large-format enclosure” configuration ideal for backbone nodes in large campuses?
At backbone network points or aggregation sites serving multiple buildings within a large campus, distribution boxes must handle both 32-core splitting and 32-core splicing simultaneously. Standard distribution boxes often have cramped interiors, leading to non-compliant fiber bend radii and disorganized cable routing. The HS032-14 features an extra-large 410×370×130mm enclosure, providing ample space for 32-core splitting and splicing; this ensures every fiber maintains a compliant bend radius, significantly reducing signal attenuation.
With an IP55 protection rating, the enclosure is suitable for sheltered outdoor environments (such as under eaves, outside equipment rooms, or beneath pole-mounted rain shields). It utilizes a butterfly-style metal latch that allows for one-handed operation by maintenance personnel, offering greater efficiency than traditional screw-based locks.

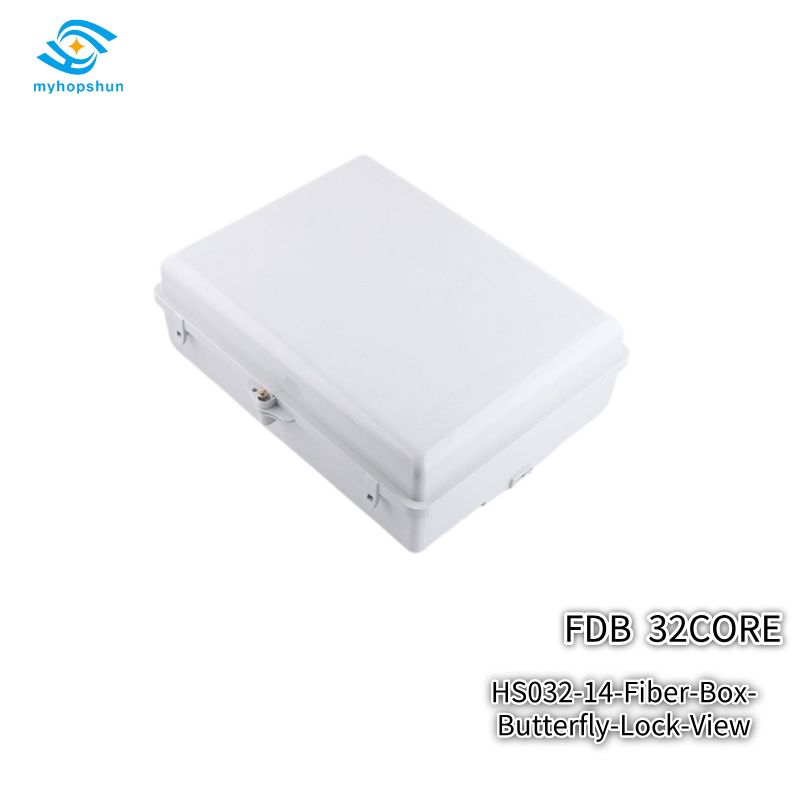

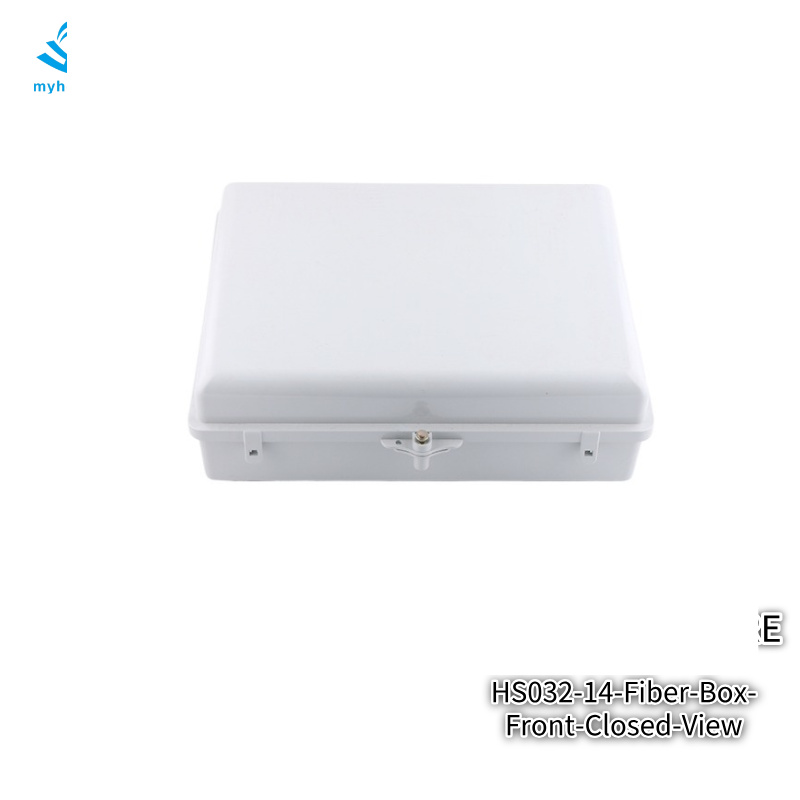

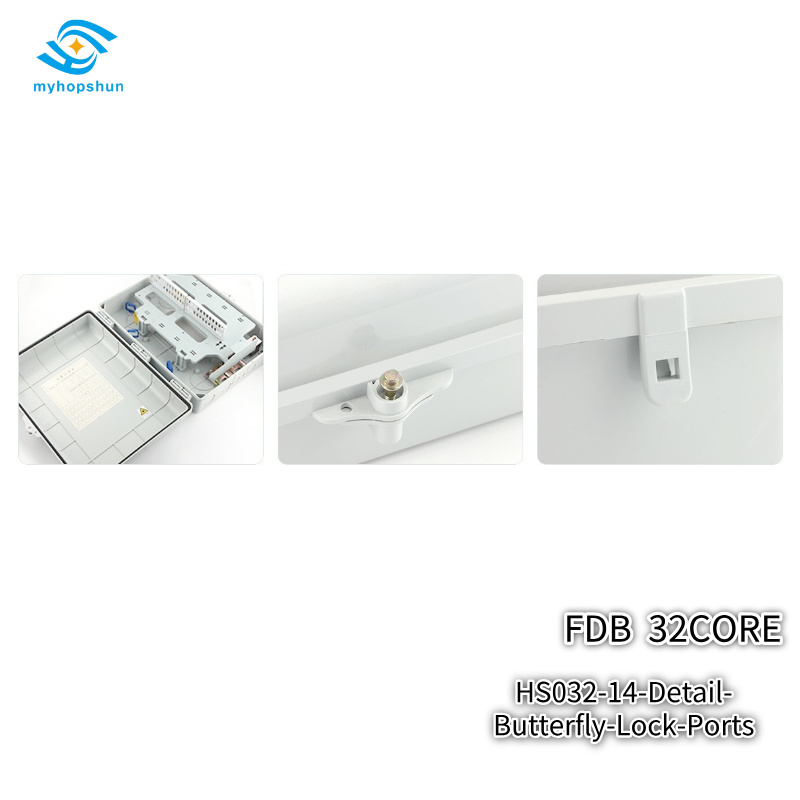

Butterfly-style metal latch: A butterfly-style metal latch on the front allows the unit to be opened or closed by simply turning the butterfly screw; this design is more secure and tamper-resistant than traditional key or knob locks.

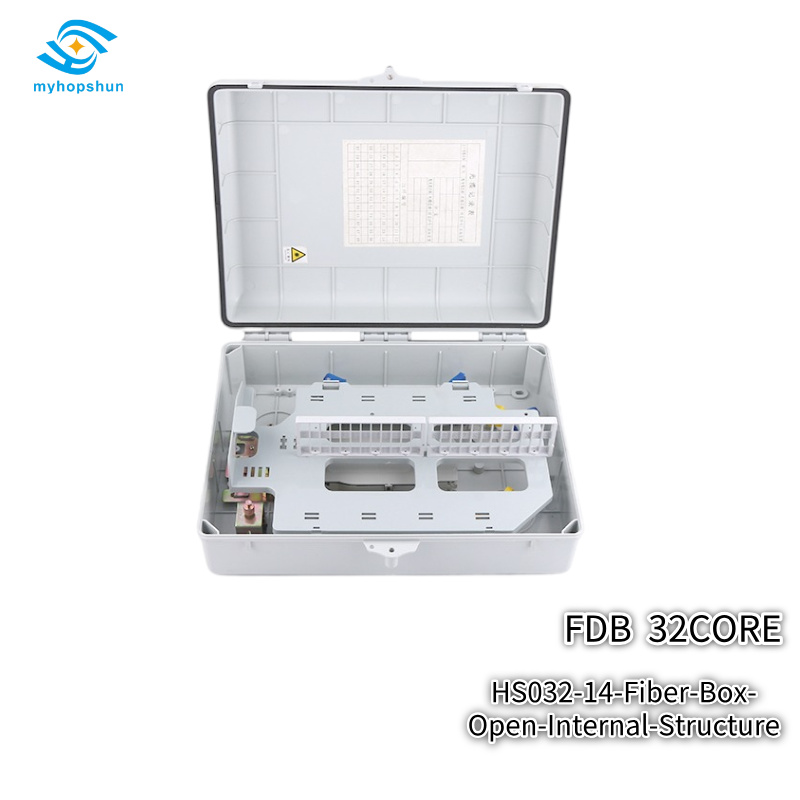

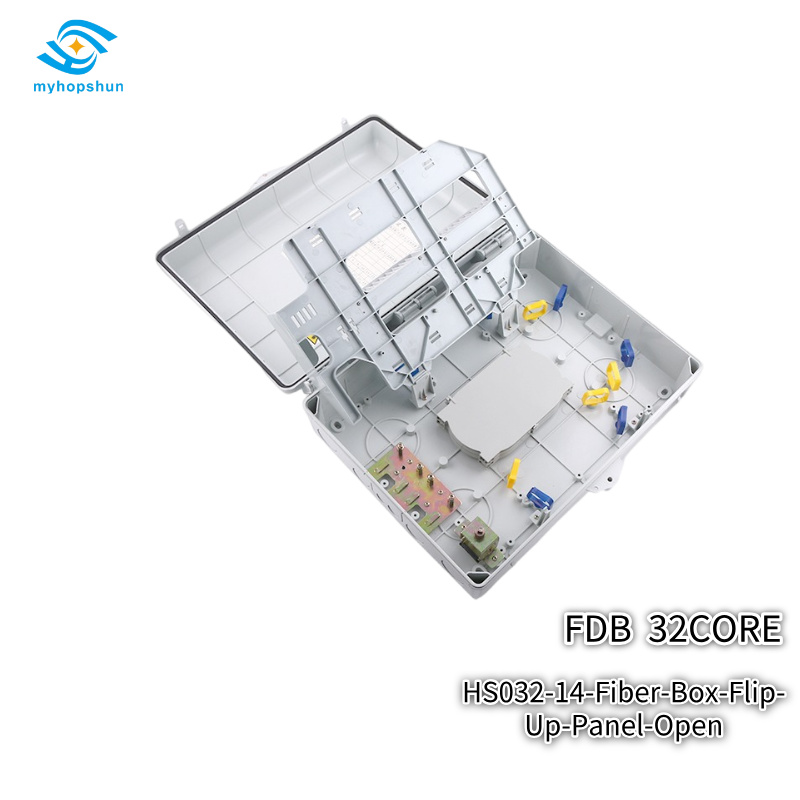

Flip-style distribution panel: Opening the lid reveals a white flip-style distribution panel that lifts upward to expose the feeder cable storage area at the bottom. Feeder cables can be routed through dedicated channels, facilitating easy maintenance and capacity expansion.

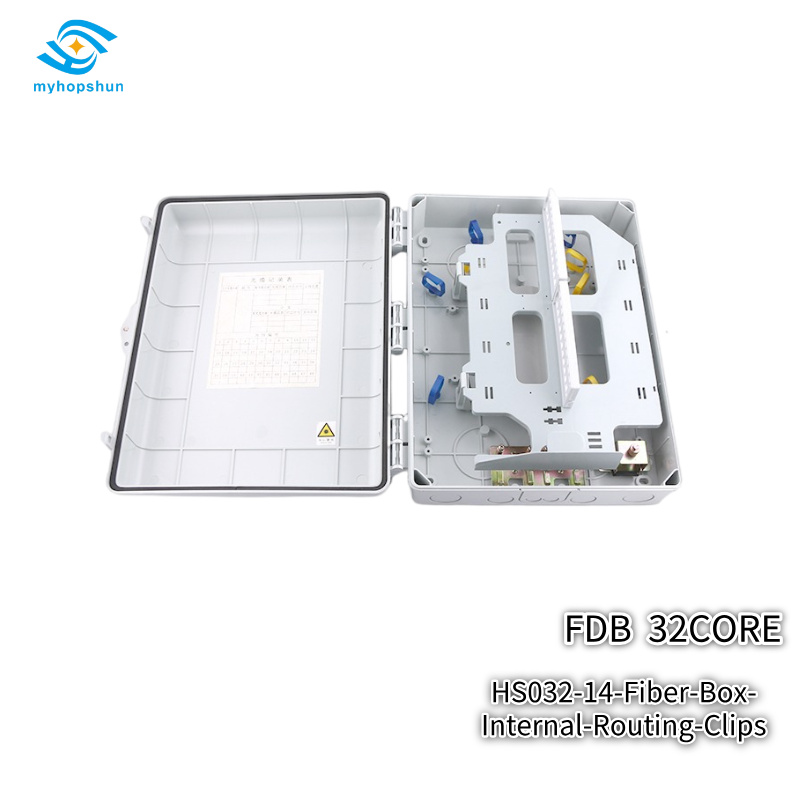

Blue and yellow cable management clips: Internal blue and yellow plastic clips help installers quickly distinguish between feeder cables, pigtails, and patch cords, minimizing routing errors.
Installation record sheet: A record sheet is affixed to the inside of the lid, featuring fields for user ID, date, installer name, fiber number, and more, facilitating future network asset tracking.
Snap-in SC adapters: The design utilizes snap-in SC adapters, allowing for replacement without the need for welding or complex tools.
Multi-port bottom cable entry: Multiple circular cable entry ports at the bottom allow for flexible cable access based on the actual number of cables used.
Dual mounting options: Supports both wall-mounted and pole-mounted configurations, suitable for indoor and outdoor use. Environmental and Optical Performance
Operating temperature: -40°C to +85°C
Relative humidity: ≤85% (+30°C)
Atmospheric pressure: 70 kPa to 106 kPa
Insertion loss: ≤0.2 dB
UPC return loss: ≥50 dB
APC return loss: ≥60 dB
Key Application Scenarios
Large campus backbone networks (up to 32-core splitting/splicing).
Aggregation nodes for multiple buildings.
Carrier-grade ODN network deployment.
Sheltered outdoor environments (IP55).
Specification
| Parameter | Technical Specification |
|---|---|
| Model | HS032-14 |
| Product Type | Fiber Distribution Box |
| Dimensions (A×B×C) | 410 × 370 × 130 mm |
| Installation Size (A×B) | 340 × 258 mm |
| Max Splitter Capacity | 32 |
| Max Splice Capacity | 32 |
| Material | PC + ABS (Wet-proof, water-proof, dust-proof, anti-aging) |
| Protection Level | IP55 |
| Adapter Type | Cassette Type SC |
| Installation Method | Wall-mounted / Pole-mounted (Indoor & Outdoor with shelter) |
| Cable Routing Type | Cup-joint supported |
| Lock Type | Butterfly Metal Lock |
| Accessories | User Manual ×1, Key ×1, Accessories Bag ×1, Easy Pole Ring ×2 (Optional), M6×20mm Bolt ×2 (Optional) |
Environmental & Optical Performance
| Parameter | Technical Specification |
|---|---|
| Working Temperature | -40℃ ~ +85℃ |
| Relative Humidity | ≤85% (+30℃) |
| Atmospheric Pressure | 70KPa ~ 106Kpa |
| Insertion Loss | ≤ 0.2 dB |
| UPC Return Loss | ≥ 50 dB |
| APC Return Loss | ≥ 60 dB |
Faq
Q1: What is the HS032-14 used for?
A: It is a large-capacity fiber distribution box used as a termination point for feeder cable and drop cable in FTTx communication networks.
Q2: What is the maximum capacity?
A: Up to 32 splitters and 32 splices.
Q3: What is the protection level?
A: IP55. It is suitable for sheltered outdoor environments such as under eaves or in equipment rooms.
Q4: What type of lock does it use?
A: A butterfly metal lock, which is more secure and tamper-resistant than traditional knob or screw locks.
Q5: What is the box size and installation size?
A: Box size 410×370×130mm; installation size 340×258mm.
Q6: What adapter type does it support?
A: Cassette type SC adapters, easy to install and replace.
Q7: Does it support cup-joint cable placement?
A: Yes, the feeder cable can be placed in a cup-joint way.
Q8: What is the internal routing feature?
A: The interior features blue and yellow routing clips to help installers quickly identify feeder cable, pigtail, and patch cord paths.
Q9: What is the insertion loss?
A: ≤0.2dB.
Q10: What is the working temperature range?
A: -40℃ to +85℃, relative humidity ≤85% (+30℃).
Q11: What accessories are included?
A: User Manual ×1, Key ×1, Accessories Bag ×1, Easy Pole Ring ×2 (optional), M6×20mm Bolt ×2 (optional).
Related Product: HS024-13 High-Density Fiber Distribution Box with 24 Independent Drop Cable Ports
