HS024-12 Fiber Distribution Box 24-Core Splitter Splice IP65 Large-Capacity FTTx Terminal myhopshun
Product Description
Why is the “24-core splitting + large-format enclosure” a key choice for outdoor backbone nodes?

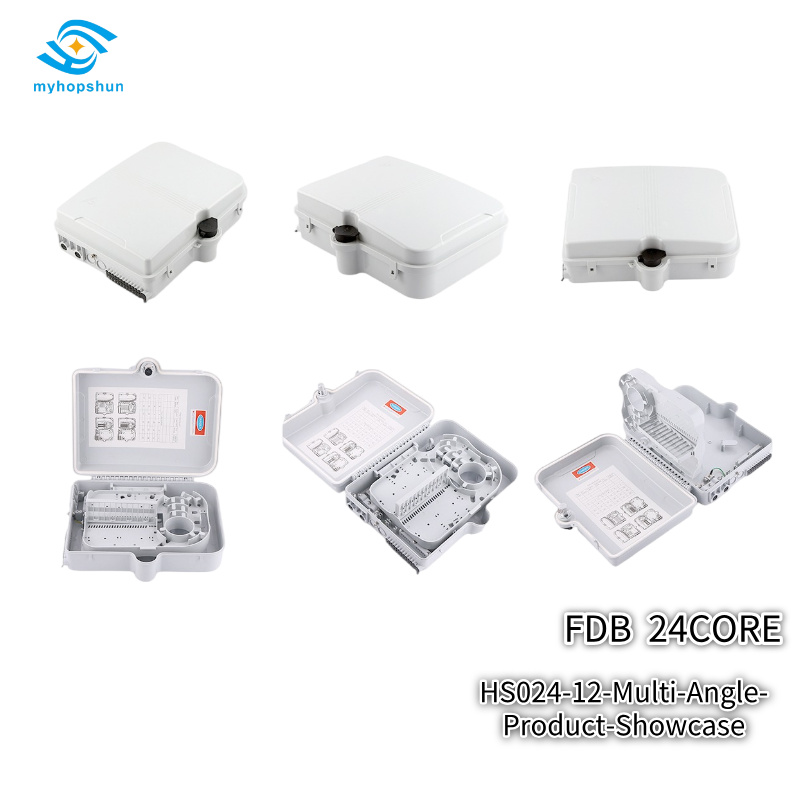

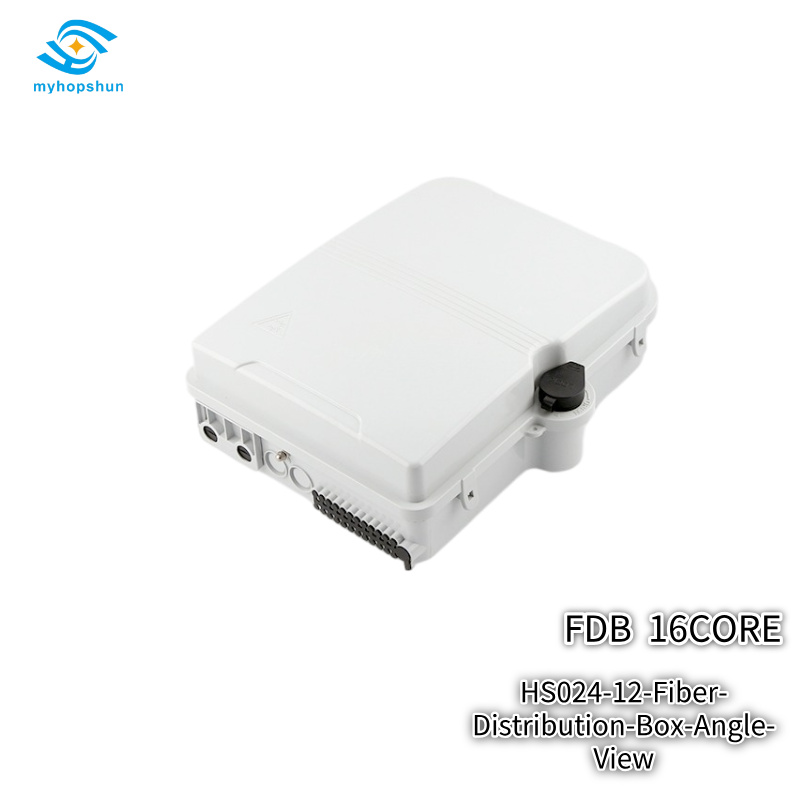

At campus backbone networks or aggregation nodes serving multiple buildings, distribution boxes must handle both optical splitting and fusion splicing simultaneously. Standard distribution boxes often lack sufficient capacity or have cramped interiors that compromise the fiber bending radius. The HS024-12 features a spacious 320×275×115mm enclosure, providing ample room for 24-core splitting and 24-core splicing; this ensures every fiber maintains a compliant bending radius, thereby minimizing signal attenuation. Equipped with a rotary knob lock, it allows for one-handed opening and closing, making it ideal for scenarios requiring frequent maintenance.
Dual-version configuration to suit varying density requirements
The HS024-12 is available in two versions:
HS024-12A: 24-core splitting / 24-core splicing – suitable for high-density aggregation nodes
HS024-12B: 16-core splitting / 16-core splicing – suitable for medium-density access nodes
With a unified form factor and two configuration options, operators can use the same enclosure model to meet diverse deployment needs, simplifying inventory management.

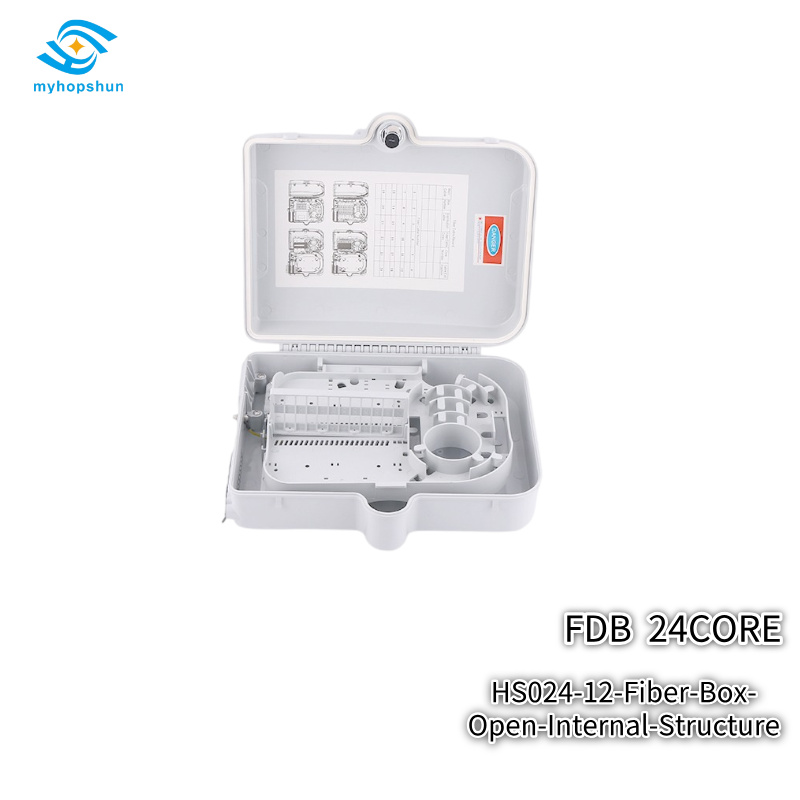

Flip-style distribution panel: Upon opening the lid, the white flip-style distribution panel can be lifted upward to reveal the feeder cable storage area at the bottom. Feeder cables can be routed through dedicated ports using a loop-through method, making maintenance and capacity expansion highly convenient.

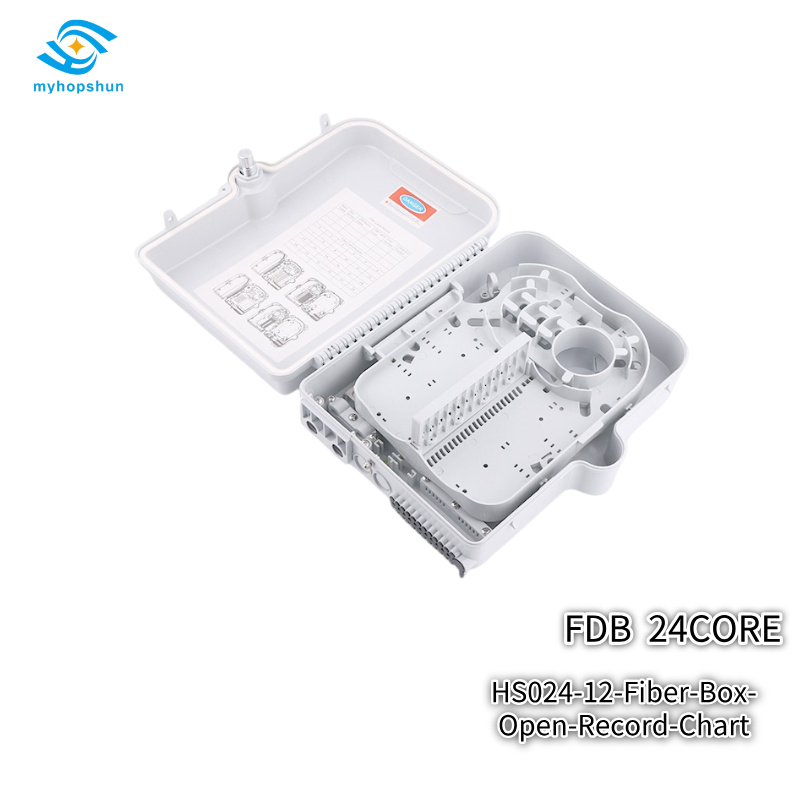

Installation record sheet: A record sheet is affixed to the inside of the lid, featuring fields for user ID, date, installer name, fiber ID, and more, facilitating future network asset traceability.

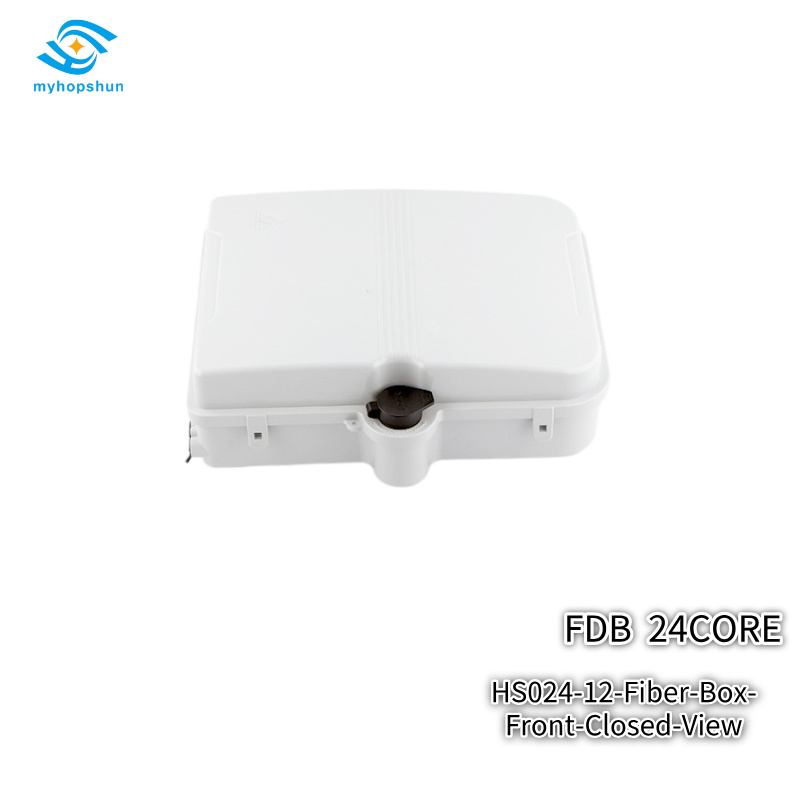

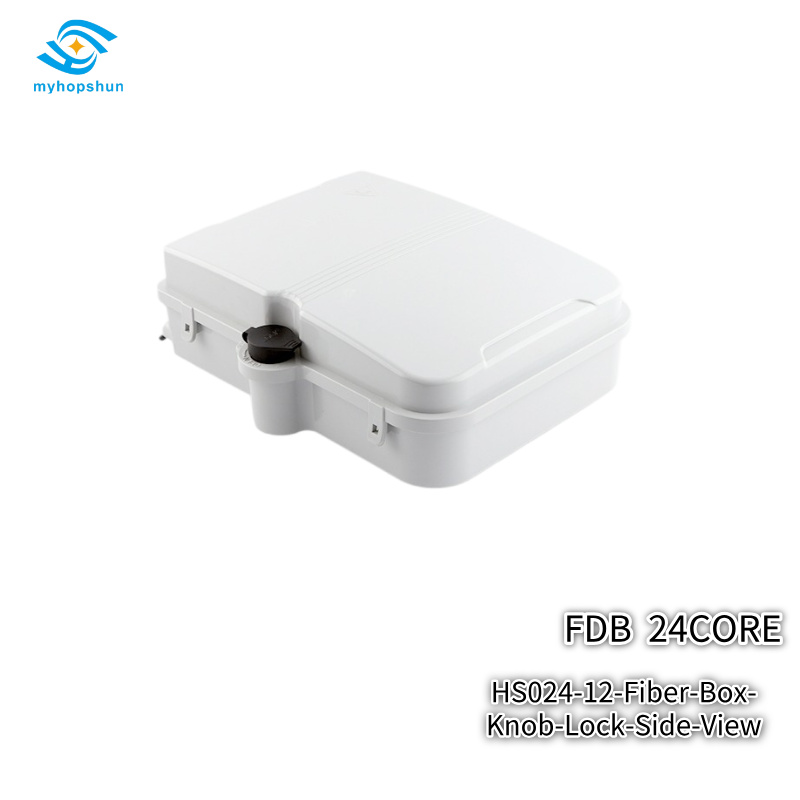

Rotary knob lock: The front features a black rotary knob lock (marked “LOCK/OPEN”); it opens and closes with a simple twist, offering greater speed and convenience than traditional key locks.
SC snap-in adapters: Designed for snap-in SC adapter installation, allowing for adapter replacement without welding or complex tools, which maximizes maintenance efficiency.

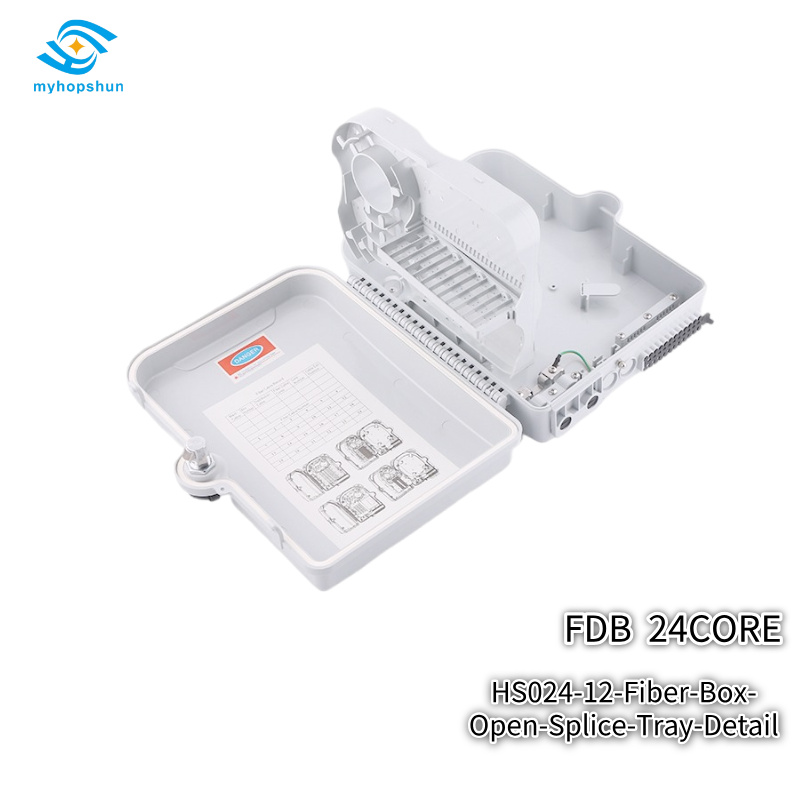

Independent routing channels: Separate pathways are provided for feeder cables, pigtails, and patch cords to prevent interference and ensure proper fiber bending radii. High-capacity internal layout: Spacious interior accommodating 24-fiber splice trays and 24-fiber splitters, ensuring organized cable management.
Optional pole-mounting rings: Compatible with “Easy pole rings” (set of 2) for pole installation.
Environmental and Optical Specifications
Operating temperature: -40°C to +85°C
Relative humidity: ≤85% (+30°C)
Atmospheric pressure: 70 kPa to 106 kPa
Insertion loss: ≤0.2 dB
UPC return loss: ≥50 dB
APC return loss: ≥60 dB
Mating durability: >1,000 cycles
Lightning Protection Specifications
Insulation resistance: ≥2 MΩ / 500 V (DC)
Dielectric strength: ≥3,000 V (DC)/min; no breakdown or flashover
Key Application Scenarios
High-density outdoor FTTx splitting and aggregation nodes (up to 24-fiber splitting capacity).
Campus backbone networks and aggregation points for multi-building complexes.
Carrier-grade ODN network deployment.
Indoor/outdoor wall-mounting or pole-mounting.
Specification
| Parameter | Technical Specification |
|---|---|
| Model | HS024-12 (Available in HS024-12A / HS024-12B) |
| Product Type | Fiber Distribution Box |
| Dimensions (A×B×C) | 320 × 275 × 115 mm |
| Installation Size (D×E) | 190 × 298 mm |
| Max Capacity — Version A | 24 Splitter / 24 Splice |
| Max Capacity — Version B | 16 Splitter / 16 Splice |
| Material | PC + ABS (Wet-proof, water-proof, dust-proof, anti-aging) |
| Protection Level | IP65 |
| Adapter Type | Cassette Type SC |
| Installation Method | Wall-mounted / Pole-mounted (Indoor & Outdoor) |
| Cable Routing Type | Cup-joint supported |
| Accessories | User Manual ×1, Key ×1, Accessories Bag ×1, Easy Pole Ring ×2 (Optional) |
Environmental & Optical Performance
| Parameter | Technical Specification |
|---|---|
| Working Temperature | -40℃ ~ +85℃ |
| Relative Humidity | ≤85% (+30℃) |
| Atmospheric Pressure | 70KPa ~ 106Kpa |
| Insertion Loss | ≤ 0.2 dB |
| UPC Return Loss | ≥ 50 dB |
| APC Return Loss | ≥ 60 dB |
| Mating Cycles | > 1000 times |
Thunder-Proof Technical Data
| Parameter | Technical Specification |
|---|---|
| Insulation Resistance | ≥ 2 MΩ / 500V (DC) |
| Withstand Voltage | ≥3000V (DC)/min, no puncture, no flashover |
Faq
Q1: What is the HS024-12 used for?
A: It is a large-capacity fiber distribution box used as a termination point for feeder cable and drop cable in FTTx communication networks.
Q2: What is the difference between HS024-12A and HS024-12B?
A: HS024-12A supports up to 24 splitter / 24 splice; HS024-12B supports up to 16 splitter / 16 splice. Both share the same enclosure.
Q3: What is the maximum capacity?
A: Up to 24 splitters and 24 splices in the HS024-12A version.
Q4: What adapter type does it support?
A: Cassette type SC adapters, easy to install and replace.
Q5: What is the mating cycle life of the adapters?
A: >1000 times, significantly higher than typical 500-cycle boxes, making it ideal for nodes with frequent user activation and maintenance.
Q6: What is the insertion loss?
A: ≤0.2dB.
Q7: What is the grounding withstand voltage?
A: ≥3000V (DC)/min between the grounding device and enclosure, no puncture or flashover.
Q8: What are the box dimensions and installation size?
A: Box size 320×275×115mm; installation size 190×298mm.
Q9: Is it suitable for outdoor use?
A: Yes. It has IP65 protection and supports wall-mounted or pole-mounted installation for both indoor and outdoor use.
Q10: Does it come with pole mounting accessories?
A: Easy pole rings (×2) are available as an option.
