HS016-11 Fiber Distribution Box 32-Core LC Capacity IP65 FTTx Terminal with Knob Lock myhopshun
Product Description
Why is the “15-component modular structure + rotary knob lock” better suited for high-frequency maintenance scenarios?
In carrier-grade FTTx networks, distribution boxes require maintenance far more frequently than in standard applications. The HS016-11 features a modular internal design comprising 15 components—ranging from the lid, locking sleeve, and gasket to the splice tray, adapter mount, and heat-shrink tube holder. Each component can be replaced independently, eliminating the need to discard the entire unit. Paired with a rotary knob lock, the unit allows for one-handed opening and closing by O&M personnel, offering greater efficiency than traditional screw locks or padlocks. This significantly reduces the time required for individual maintenance tasks, particularly in campus networks requiring frequent subscriber service activation.
Three capacity versions covering 16 to 32 cores
The HS016-11 addresses varying density requirements through three versions (A, B, and C):
HS016-11A: 16 SC / 16 LC – Suitable for standard density
HS016-11B: 12 SC / 24 LC – Suitable for mixed deployment
HS016-11C: 16 SC / 32 LC – Suitable for ultra-high-density nodes (supports cup-joint method)

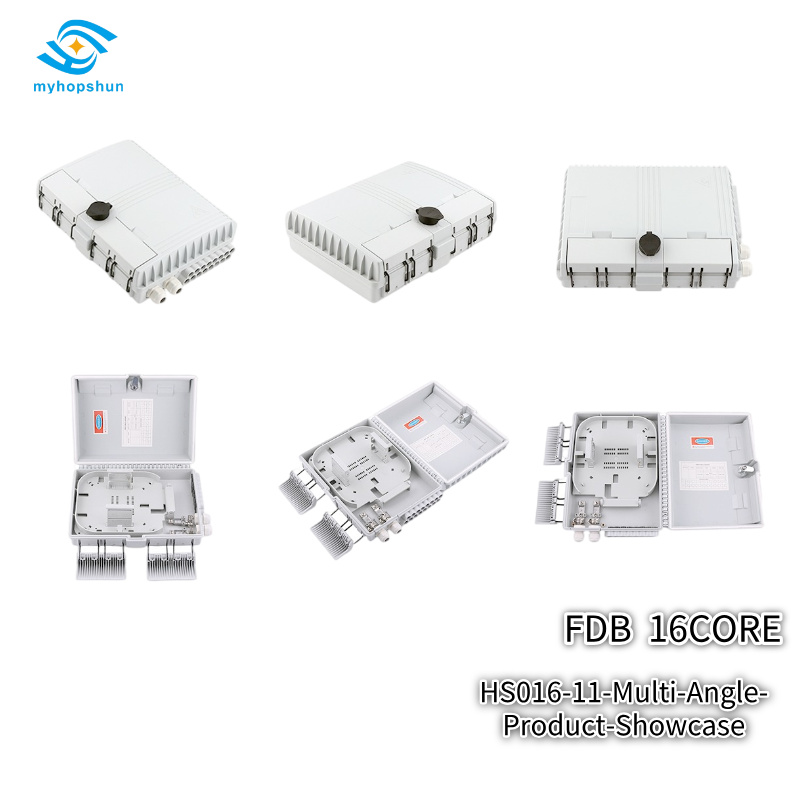

Design highlights revealed in actual photos

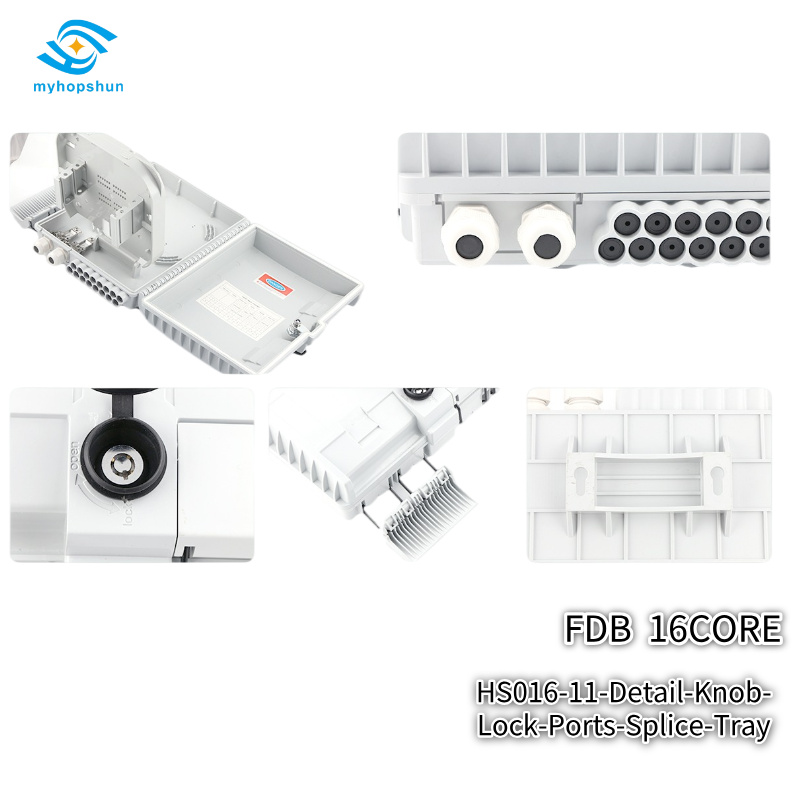

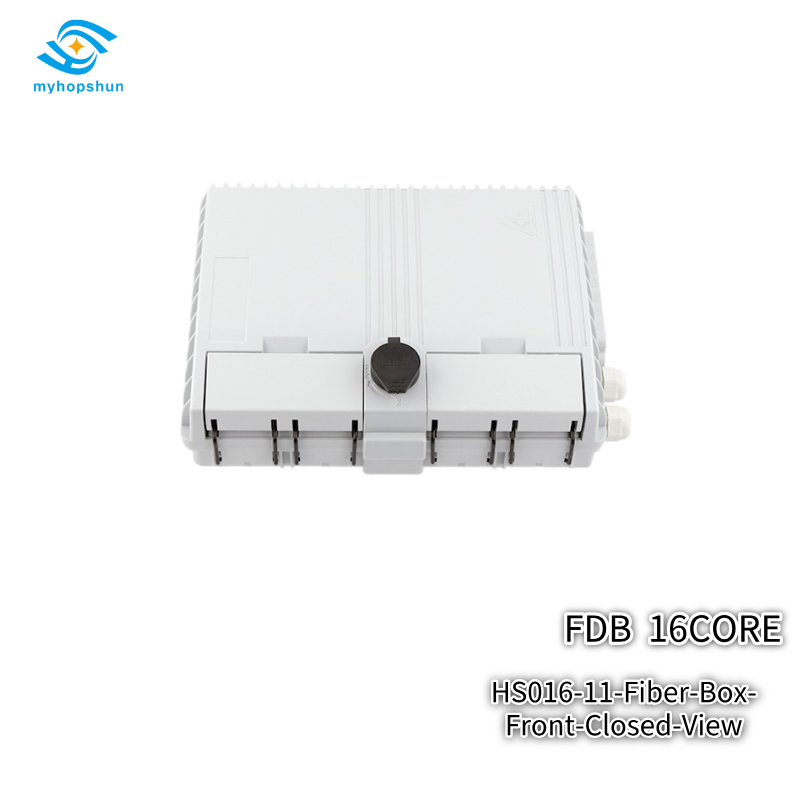

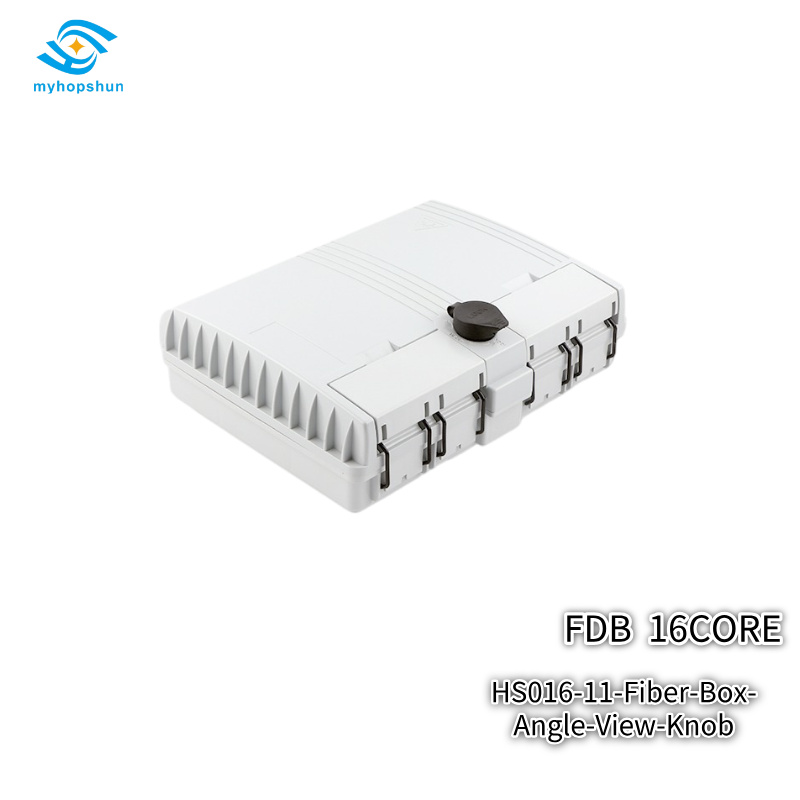

Rotary knob lock: Features a black rotary knob on the front (marked “LOCK/OPEN”); simply rotate to open or close—faster than traditional key locks.

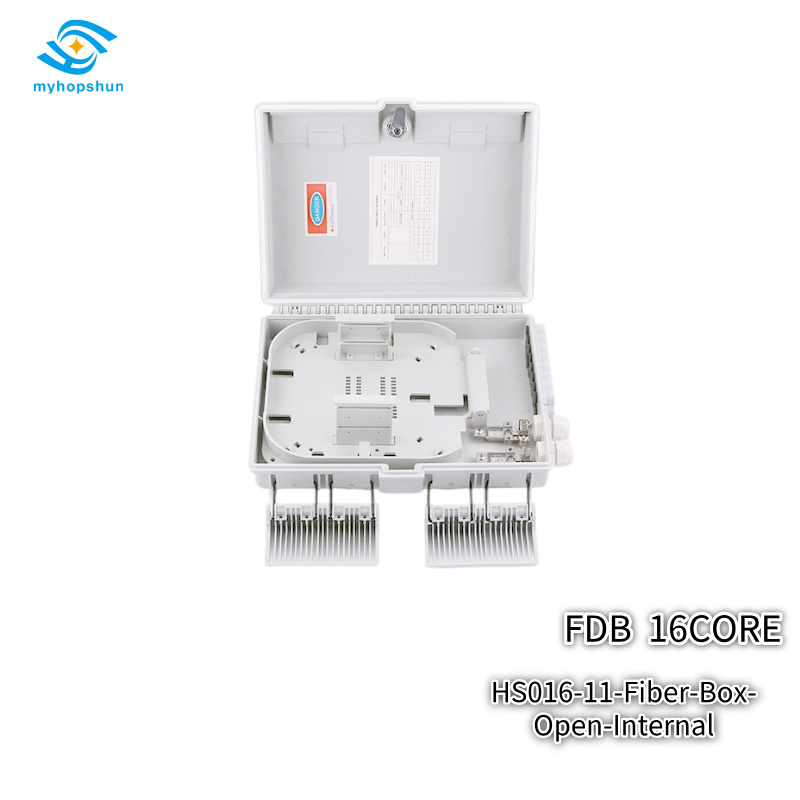

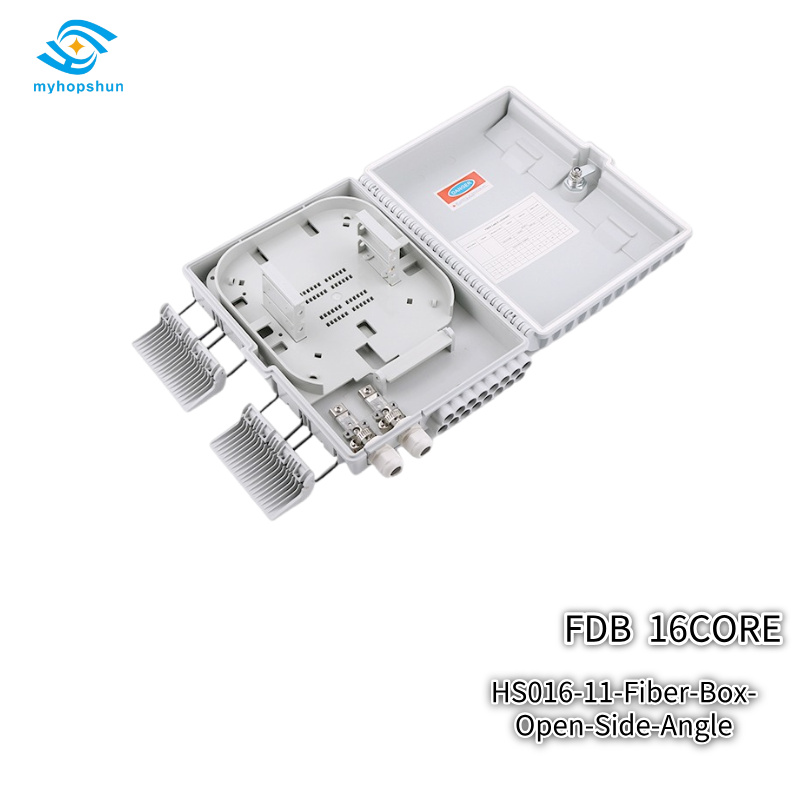

15-component modular structure: Clear internal layout comprising: 1. Lid 2. Locking sleeve 3. Lock 4. Gasket 5. Splice tray 6. Adapter mount 7. Adapter 8. Lid latch bracket 9. Lid latch 10. Base 11. Cable strength member anchor 12. Connector (optional) 13. Lock panel 14. PLC mounting slot 15. Heat-shrink tube holder.

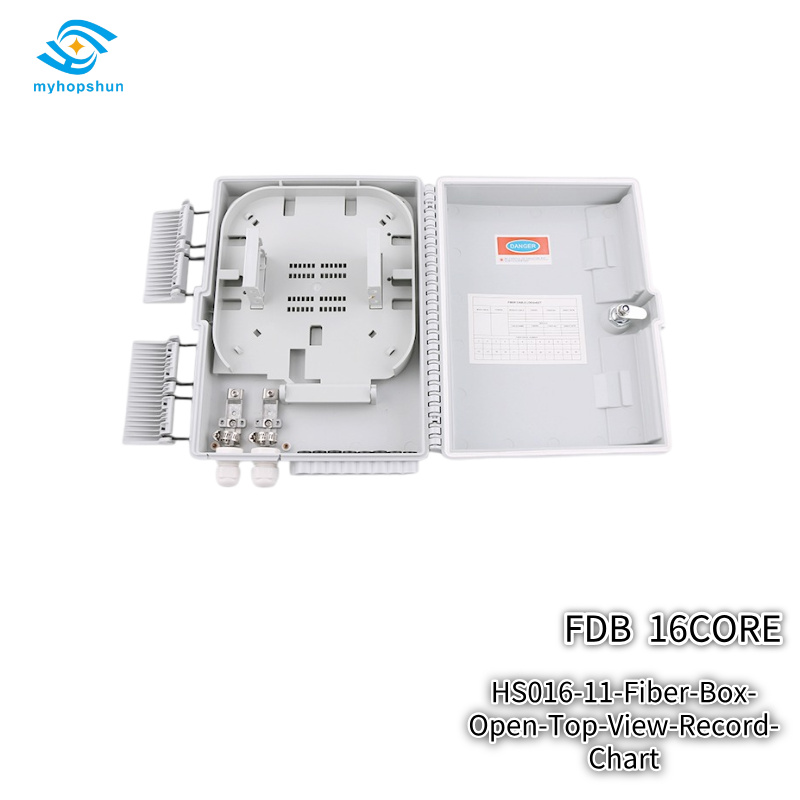

Dual cabling methods: Versions A and B utilize the “non-cup-joint” (standard routing) method, while Version C supports dual modes: “non-cup-joint” and “cup-joint.” Installation Record Chart: A “Fiber Cable Record” chart is affixed to the inside of the lid, featuring fields for subscriber ID, date, installer, fiber ID, etc.
Independent Bottom Ports: Two large white ports plus a row of black dust plugs, allowing for flexible cable entry based on actual requirements.
Side Metal Latches: Enhance the enclosure’s seal to ensure IP65-rated protection.
Environmental and Optical Specifications
Operating Temperature: -40°C to +85°C
Relative Humidity: ≤85% (+30°C)
Atmospheric Pressure: 70 kPa to 106 kPa
Insertion Loss: ≤0.2 dB
UPC Return Loss: ≥50 dB
APC Return Loss: ≥60 dB
Key Application Scenarios
High-density FTTx splitting nodes (up to 32 LC cores).
Campus networks requiring frequent subscriber activation or maintenance.
Carrier-grade ODN network deployments.
Indoor/outdoor wall-mounted or pole-mounted installations.
Specification
| Parameter | Technical Specification |
|---|---|
| Model | HS016-11 (Available in HS016-11A / HS016-11B / HS016-11C) |
| Product Type | Fiber Distribution Box |
| Dimensions (A×B×C) | 250 × 190 × 72 mm (A/B); 293 × 219 × 84 mm (C) |
| Installation Size (D×E) | 130 × 82 mm (A/B); 155 × 82 mm (C) |
| Max Capacity — Version A | 16 SC / 16 LC |
| Max Capacity — Version B | 12 SC / 24 LC |
| Max Capacity — Version C | 16 SC / 32 LC ⭐ |
| Material | PC + ABS (Wet-proof, water-proof, dust-proof, anti-aging) |
| Protection Level | IP65 |
| Adapter Type | Cassette Type SC |
| Installation Method | Wall-mounted / Pole-mounted (Indoor & Outdoor) |
| Cable Routing Type | Not cup-joint (A/B); Not cup-joint / cup-joint (C) |
| Internal Components | 15 modular components (lid, lock coat, lock, seal gasket, splice tray, adapter holder, adapter, lid lock bracket, lid lock clip, base, cable strengthen mount, joint, lock panel, PLC mounting, hot tube fixer) |
| Accessories | User Manual ×1, Key ×1, Accessories Bag ×1, Easy Pole Ring ×2 (Optional), M6×20mm Bolt ×2 (Optional) |
Environmental & Optical Performance
| Parameter | Technical Specification |
|---|---|
| Working Temperature | -40℃ ~ +85℃ |
| Relative Humidity | ≤85% (+30℃) |
| Atmospheric Pressure | 70KPa ~ 106Kpa |
| Insertion Loss | ≤ 0.2 dB |
| UPC Return Loss | ≥ 50 dB |
| APC Return Loss | ≥ 60 dB |
Faq
Q1: What is the HS016-11 used for?
A: It is a fiber distribution box used as a termination point for feeder cable and drop cable in FTTx communication networks.
Q2: What versions are available?
A: Three versions: HS016-11A (16 SC / 16 LC), HS016-11B (12 SC / 24 LC), and HS016-11C (16 SC / 32 LC, cup-joint compatible).
Q3: What is the maximum capacity?
A: Up to 32 LC or 16 SC in the HS016-11C version.
Q4: What is the internal structure like?
A: It features a 15-component modular structure including lid, lock coat, lock, seal gasket, splicing flap plate, adapter holder, adapter, lid lock joint bracket, lid lock clip, base, cable strengthen mount layer, joint (optional), lock panel, PLC mounting position, and hot tube fixer.
Q5: What type of lock does it use?
A: A rotating knob lock (marked LOCK/OPEN) for quick single-hand operation.
Q6: Does it support cup-joint cable placement?
A: Yes, the HS016-11C version supports cup-joint feeder cable placement; A and B versions support standard routing.
Q7: What is the insertion loss?
A: ≤0.2dB.
Q8: What are the box dimensions?
A: HS016-11A/B: 250×190×72mm; HS016-11C: 293×219×84mm.
Q9: Is it suitable for outdoor use?
A: Yes. It has IP65 protection and supports wall-mounted or pole-mounted installation for both indoor and outdoor use.
Q10: What is the working temperature range?
A: -40℃ to +85℃, relative humidity ≤85% (+30℃).
