HS016-10 Fiber Distribution Box 16-Core IP65 FTTx Terminal with 3 Versions myhopshun
Product Description
Why is the “three-version + max 32-core LC” configuration key to high-density FTTx deployment?
In campus networks or multi-tenant buildings, a single distribution box often needs to accommodate varying user densities and network topologies. The HS016-10 series covers a capacity range of 16 to 32 cores through three versions (A, B, and C):
HS016-10A: 16 SC / 16 LC – suitable for standard-density access
HS016-10B: 12 SC / 24 LC – suitable for mixed SC and LC deployment
HS016-10C: 16 SC / 32 LC – suitable for ultra-high-density nodes
Operators can use different versions of the same enclosure to cover scenarios ranging from low to high density, thereby simplifying inventory management and reducing procurement costs.

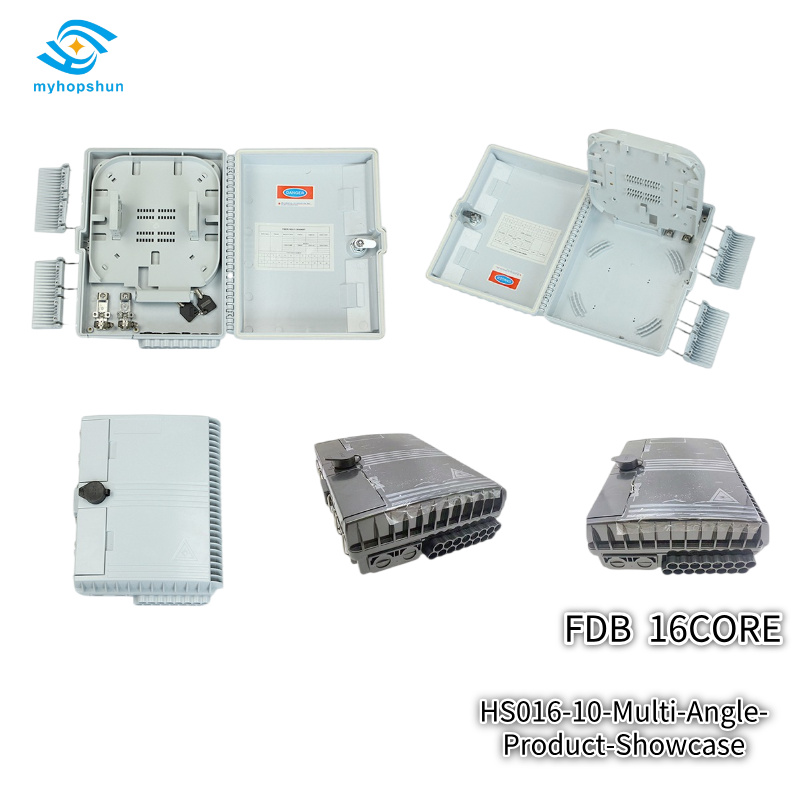

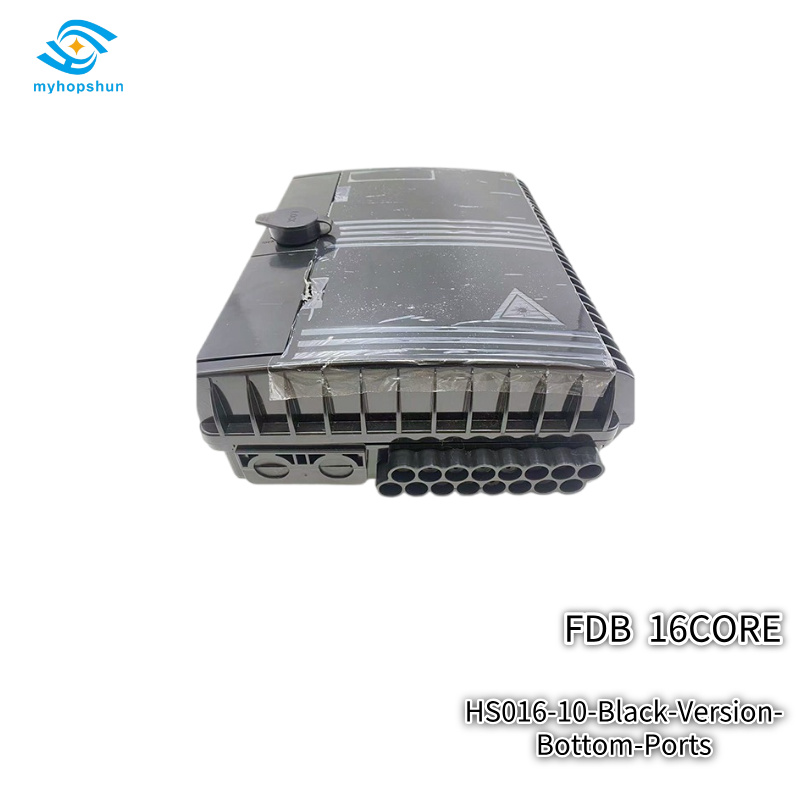

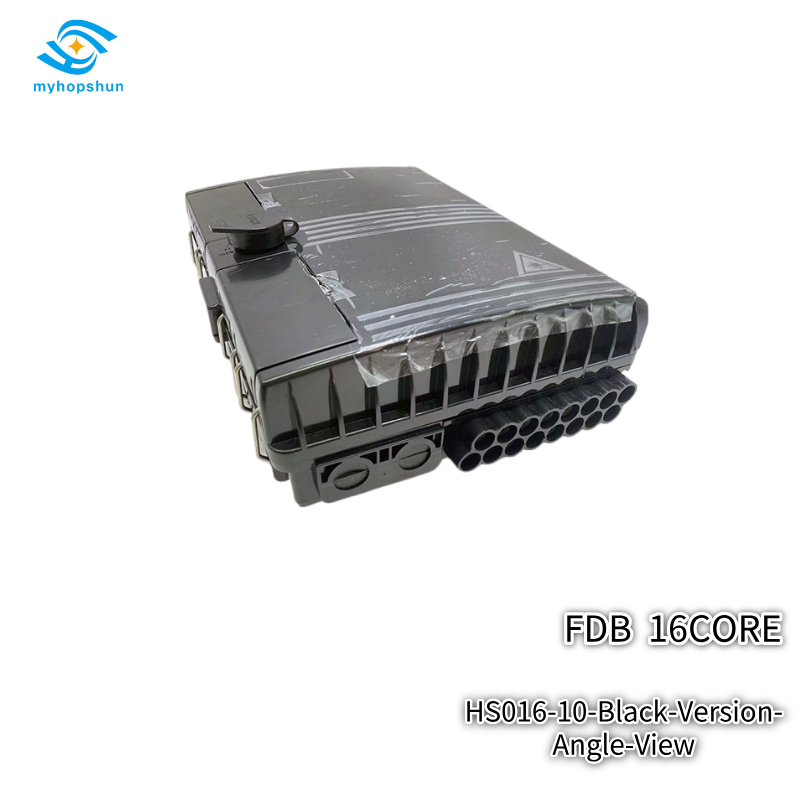

Design highlights revealed in actual photos

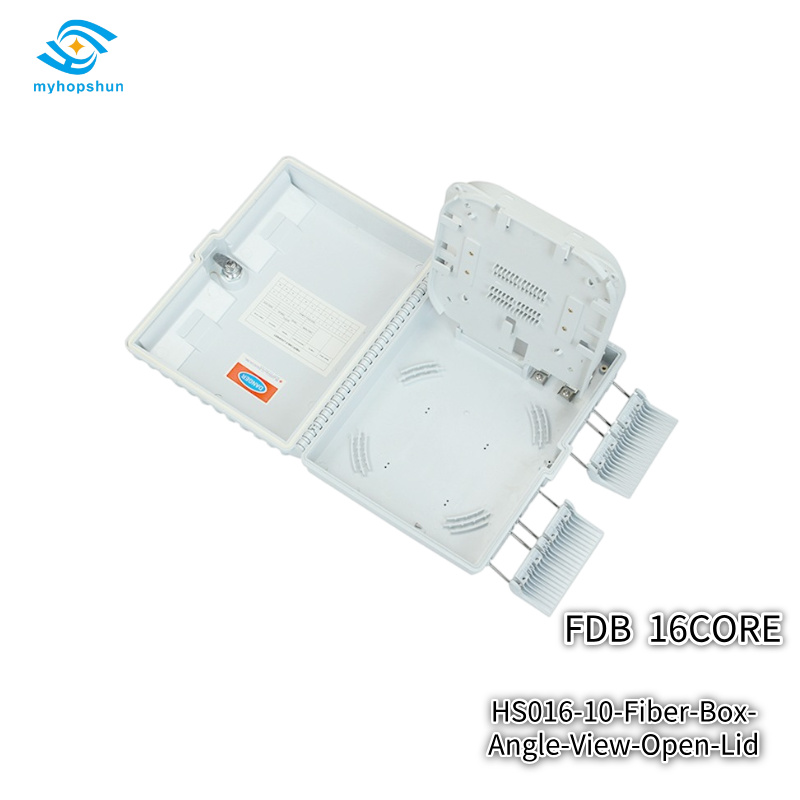

Flip-style distribution panel: Upon opening the lid, the white flip-style distribution panel can be lifted upwards to reveal the feeder cable storage area at the bottom. Feeder cables can be routed through dedicated ports using a loop-through method (supported by the HS016-10C), making maintenance and capacity expansion extremely convenient.

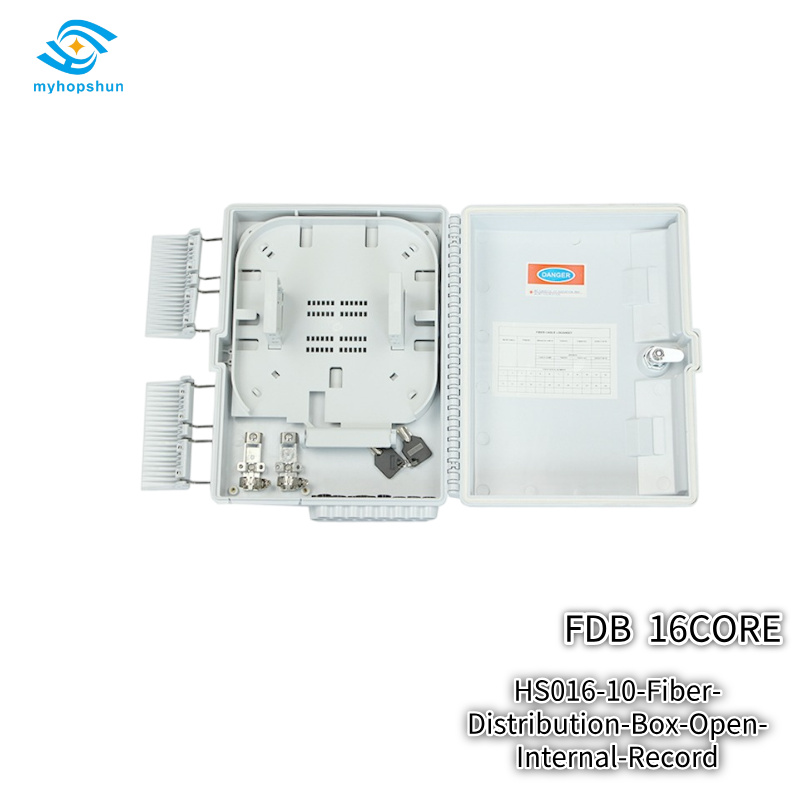

Installation record chart: A “Fiber Cable Record” chart is affixed to the inside of the lid, featuring fields for user ID, date, installer, fiber number, etc., facilitating future network asset traceability.
“DANGER” laser warning label: A red “DANGER” laser warning label is affixed to the inside of the lid, complying with international safety standards for FTTx equipment.
SC snap-in adapters: Features a snap-in SC adapter design; adapters can be replaced without splicing or complex tools, ensuring high maintenance efficiency.
Independent routing channels: Cables, pigtails, and patch cords have separate routing paths to prevent interference and ensure proper fiber bend radii.
Security lock: Equipped with a side-mounted key lock to prevent unauthorized access.
Optional pole-mounting rings: Optional “Easy pole ring” set (2 rings + 2 M6×20mm bolts) available for pole-mounted installations. Environmental and Optical Performance
Operating temperature: -40°C to +85°C
Relative humidity: ≤85% (+30°C)
Atmospheric pressure: 70 kPa to 106 kPa
Insertion loss: ≤0.2 dB
UPC return loss: ≥50 dB
APC return loss: ≥60 dB
Key Application Scenarios
High-density FTTx splitting nodes (up to 32 LC ports).
Drop points for campus networks and multi-user buildings.
Carrier-grade ODN network deployments.
Indoor/outdoor wall-mounted or pole-mounted installations.
Specification
| Parameter | Technical Specification |
|---|---|
| Model | HS016-10 (Available in HS016-10A / HS016-10B / HS016-10C) |
| Product Type | Fiber Distribution Box |
| Dimensions (A×B×C) | 250 × 190 × 72 mm (A/B); 293 × 219 × 84 mm (C) |
| Installation Size (D×E) | 130 × 82 mm (A/B); 155 × 82 mm (C) |
| Max Capacity — Version A | 16 SC / 16 LC |
| Max Capacity — Version B | 12 SC / 24 LC |
| Max Capacity — Version C | 16 SC / 32 LC ⭐ |
| Material | PC + ABS (Wet-proof, water-proof, dust-proof, anti-aging) |
| Protection Level | IP65 |
| Adapter Type | Cassette Type SC |
| Installation Method | Wall-mounted / Pole-mounted (Indoor & Outdoor) |
| Cable Routing Type | Not cup-joint (A/B); Not cup-joint / cup-joint (C) |
| Accessories | User Manual ×1, Key ×1, Accessories Bag ×1, Easy Pole Ring ×2 (Optional), M6×20mm Bolt ×2 (Optional) |
Environmental & Optical Performance
| Parameter | Technical Specification |
|---|---|
| Working Temperature | -40℃ ~ +85℃ |
| Relative Humidity | ≤85% (+30℃) |
| Atmospheric Pressure | 70KPa ~ 106Kpa |
| Insertion Loss | ≤ 0.2 dB |
| UPC Return Loss | ≥ 50 dB |
| APC Return Loss | ≥ 60 dB |
Faq
Q1: What is the HS016-10 used for?
A: It is a fiber distribution box used as a termination point for feeder cable and drop cable in FTTx communication networks.
Q2: What versions are available?
A: Three versions: HS016-10A (16 SC / 16 LC), HS016-10B (12 SC / 24 LC), and HS016-10C (16 SC / 32 LC, cup-joint compatible).
Q3: What is the maximum capacity?
A: Up to 32 LC or 16 SC in the HS016-10C version.
Q4: What adapter type does it support?
A: Cassette type SC adapters, easy to install and replace.
Q5: Does it support cup-joint cable placement?
A: Yes, the HS016-10C version supports cup-joint feeder cable placement; A and B versions support standard routing.
Q6: What is the insertion loss?
A: ≤0.2dB.
Q7: What are the box dimensions?
A: HS016-10A/B: 250×190×72mm; HS016-10C: 293×219×84mm.
Q8: Is it suitable for outdoor use?
A: Yes. It has IP65 protection and supports wall-mounted or pole-mounted installation for both indoor and outdoor use.
Q9: Does it come with pole mounting accessories?
A: Easy pole rings (×2) and M6×20mm bolts (×2) are available as options.
Q10: What is the working temperature range?
A: -40℃ to +85℃, relative humidity ≤85% (+30℃).
