HS008-18 FDB ODB FAT FTB 8-Core ABS Fiber Distribution Box RoHS IP65 FTTx Terminal with Accessory Kit myhopshun
Product Description
Why are “ABS material,” “RoHS compliance,” and a “complete accessory kit” essential requirements for FTTH projects in Europe?
In European and some North American markets, RoHS environmental compliance is a mandatory threshold for telecommunications equipment procurement. The HS008-18 is constructed from ABS material (RoHS compliant), ensuring water resistance, dust resistance, and aging resistance while meeting EU environmental directive requirements.
Crucially, this product comes with a complete accessory kit straight from the factory—including four 4mm×40mm screws, four M6 expansion bolts, six 3mm×10mm cable ties, eight heat-shrink tubes, three hose clamps, and a key. Installation teams can begin work immediately upon arrival without needing to source additional parts, making it ideal for large-scale FTTH field deployments.

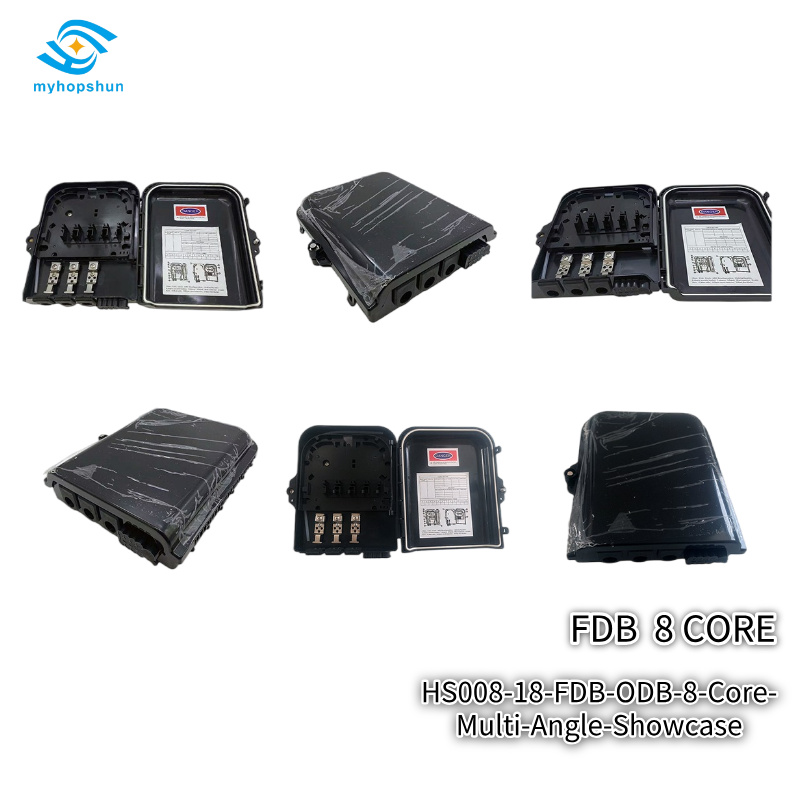

Design highlights revealed in actual product photos
Complete accessory kit: Standard factory inclusion of screws, expansion bolts, cable ties, heat-shrink tubes, hose clamps, and a key—no extra purchasing required.

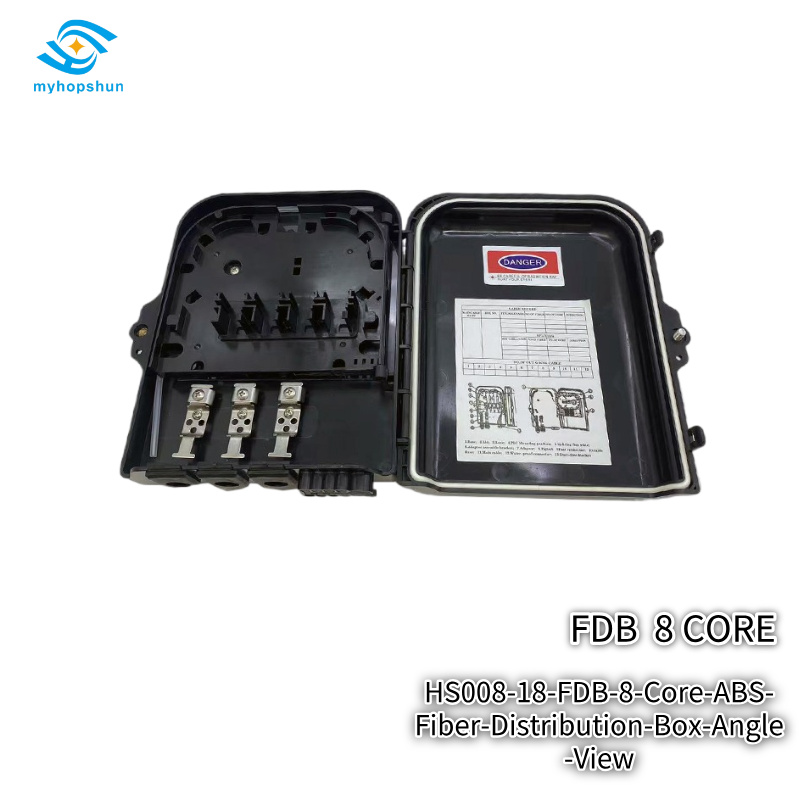

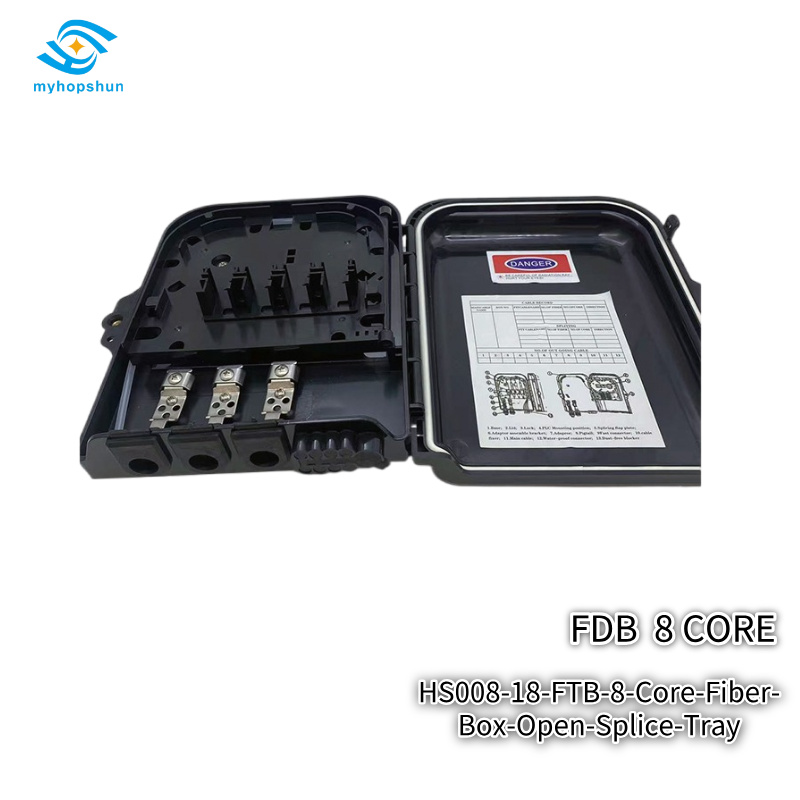

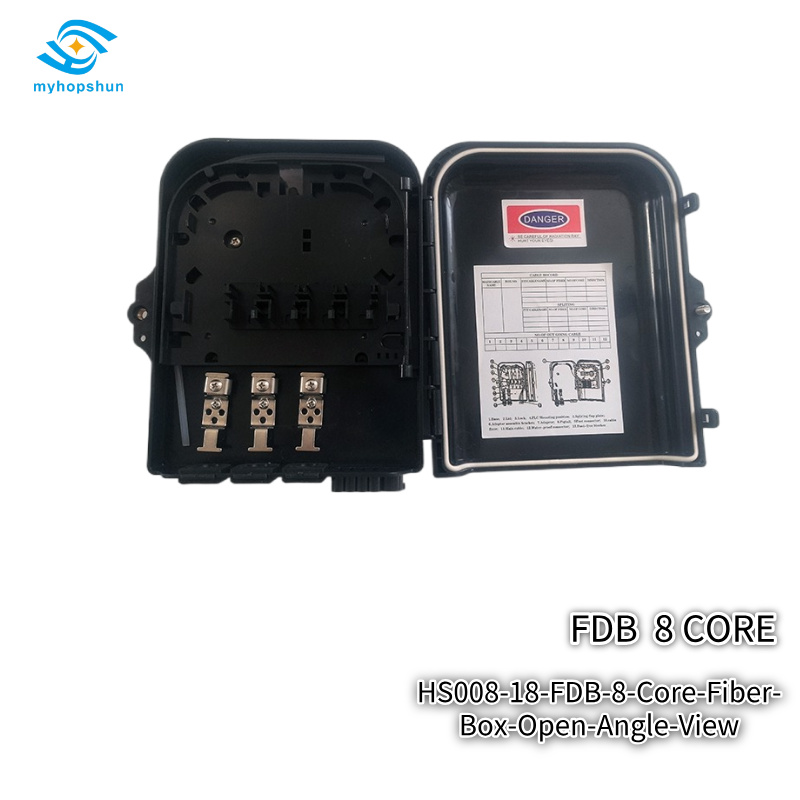

Flip-style distribution panel: Opening the lid allows the distribution panel to be flipped upward, revealing the feeder cable storage area beneath. Feeder cables can be routed through dedicated ports using a loop-through method.

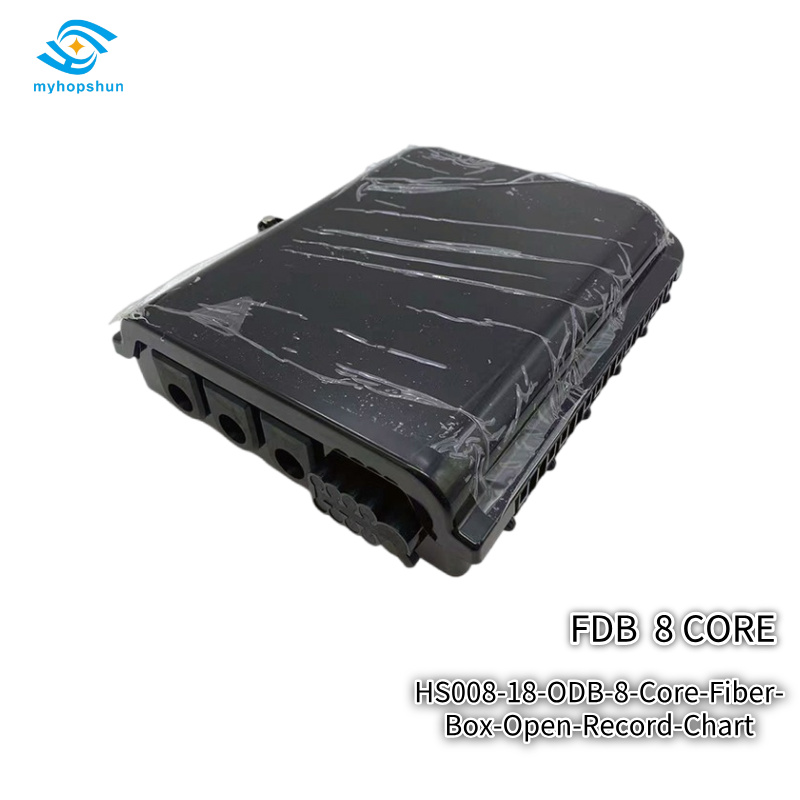

Installation record chart: A “Fiber Cable Record” chart is affixed to the inside of the lid, featuring fields for subscriber ID, date, installer name, fiber number, etc.

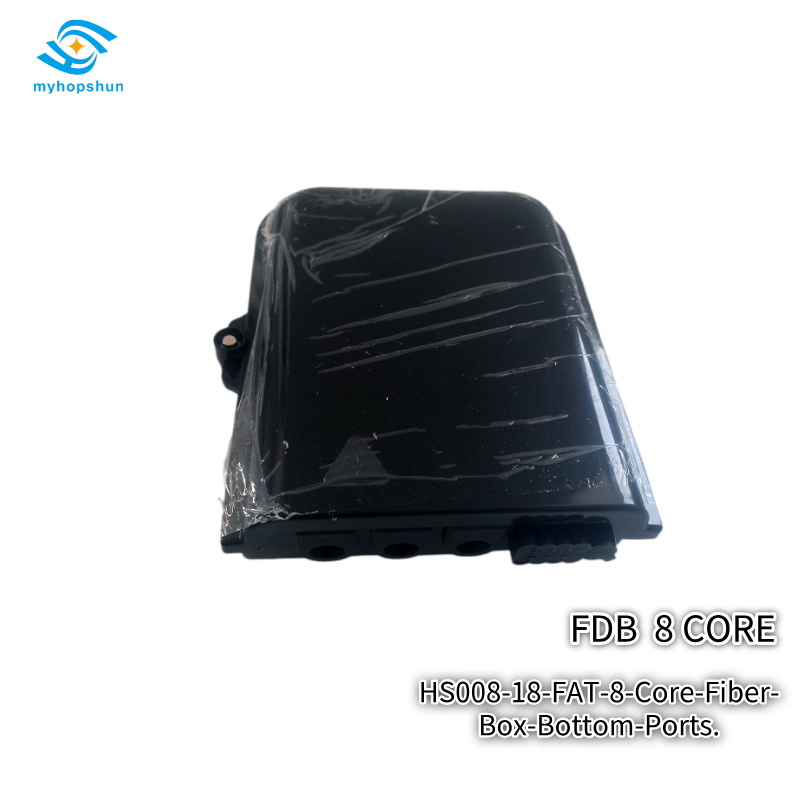

3-in/8-out cable ports: The bottom features 3 input ports and 8 output ports, compatible with 5–10mm cables.
SC snap-in adapters: Designed for snap-in SC adapter installation; replacing adapters requires no welding or complex tools.
Independent routing channels: Separate pathways for feeder cables, pigtails, and patch cords ensure no signal interference.
Dual mounting options: Supports both wall-mounted and pole-mounted installations. Environmental and Performance Specifications
Dimensions: 230 × 195 × 54.5 mm
Weight: 0.55 kg
Material: ABS (moisture-proof, waterproof, dustproof, aging-resistant; RoHS compliant)
Maximum Capacity: 8-fiber splicing (1 splice tray, 8 fibers per tray)
Adapter Capacity: Up to 8 SC adapters
Cable Ports: 3 inputs / 8 outputs
Compatible Cables: 2×3mm indoor FTTH drop cables + outdoor figure-8 self-supporting cables (5–10mm cable ports)
Mounting Method: Wall-mounted / Pole-mounted
Protection Rating: IP65
Key Application Scenarios
Projects requiring European RoHS compliance.
Large-scale FTTH field installations (saves time on accessory procurement).
Scenarios requiring support for both indoor drop cables and outdoor figure-8 cables.
Indoor/outdoor wall or pole mounting.
Specification
| Parameter | Technical Specification |
|---|---|
| Model | HS008-18 |
| Product Type | 8-Core ABS Fiber Distribution Box (FDB / ODB / FAT / FTB) |
| Dimensions (A×B×C) | 230 × 195 × 54.5 mm |
| Weight | 0.55 kg |
| Max Capacity | 8 Fibers (1 tray, 8 cores/tray) |
| Max SC Adapters | 8 pcs |
| Material | ABS (Wet-proof, water-proof, dust-proof, anti-aging, RoHS compliant) |
| Protection Level | IP65 |
| Ports | 3 In / 8 Out |
| Cable Compatibility | 2×3mm indoor FTTH drop cable & outdoor figure-8 self-supporting drop cable (5-10mm cable ports) |
| Adapter Type | Cassette Type SC |
| Installation Method | Wall-mounted / Pole-mounted (Indoor & Outdoor) |
| Cable Routing Type | Cup-joint supported |
| Accessories | 4× Screw 4mm×40mm, 4× Expansion Bolt M6, 6× Cable Tie 3mm×10mm, 8× Heat-Shrink Sleeve 1.0mm×3mm×60mm, 3× Hose Clamp, 1× Key, 1× User Manual, 1× Accessories Bag |
Faq
Q1: What is the HS008-18 used for?
A: It is an 8-core ABS fiber distribution box (also known as FDB, ODB, FAT, or FTB) used as a termination point between feeder cable and drop cable in FTTx communication networks.
Q2: Is it an FDB, ODB, FAT, or FTB?
A: It can be classified as any of these: FDB (Fiber Distribution Box), ODB (Optical Distribution Box), FAT (Fiber Access Terminal), or FTB (Fiber Termination Box). For outdoor FTTx applications, it is most commonly called an FDB or FAT.
Q3: What material is the enclosure made of?
A: ABS (Acrylonitrile Butadiene Styrene), which is RoHS compliant, wet-proof, water-proof, dust-proof, and anti-aging.
Q4: Is it RoHS compliant?
A: Yes. It meets RoHS environmental standards, making it suitable for European and North American projects with strict compliance requirements.
Q5: What is the protection level?
A: IP65. It protects against dust and low-pressure water jets, suitable for most outdoor FTTx deployments.
Q6: What is the maximum capacity?
A: Up to 8 fibers (1 splice tray with 8 cores per tray), with up to 8 SC adapters.
Q7: What cable types are compatible?
A: It supports 2×3mm indoor FTTH drop cables and outdoor figure-8 self-supporting drop cables, with 5-10mm cable ports.
Q8: What is the box size and weight?
A: Box size 230×195×54.5mm; weight 0.55kg.
Q9: What is included in the accessory kit?
A: 4× screws (4mm×40mm), 4× expansion bolts (M6), 6× cable ties (3mm×10mm), 8× heat-shrink sleeves (1.0mm×3mm×60mm), 3× hose clamps, 1× key, 1× user manual, and 1× accessories bag.
Q10: Does it support cup-joint cable placement?
A: Yes, the feeder cable can be placed in a cup-joint way.
Q11: Is it suitable for outdoor use?
A: Yes. It has IP65 protection and supports wall-mounted or pole-mounted installation for both indoor and outdoor use.
Q12: What ports does it have?
A: It features a 3-in / 8-out port configuration.
