HS008-16 FDB ODB FAT FTB 8-Core Outdoor Fiber Distribution Box IP66 FTTx Terminal myhopshun
Product Description
Why is the 8-core IP66 outdoor FDB the premier choice for FAT deployments in North America?
In North American FTTH deployments, the term FAT (Fiber Access Terminal) typically refers to outdoor access terminals, while FDB/ODB (Fiber/Optical Distribution Box) are the standard industry terms. The HS008-16 is an 8-core IP66 terminal box specifically designed for outdoor FTTx scenarios.
Compared to IP65, the IP66 rating offers superior protection against powerful water jets (such as heavy rain or high-pressure washing), making it ideal for long-term outdoor deployment. With three configuration options—8 SC, 8 LC, or 8 PLC—operators can use a single box model to support various network topologies. Features such as “cup-style” feeder cable routing and a flip-style distribution panel ensure highly efficient installation and maintenance.
Smart Design Features

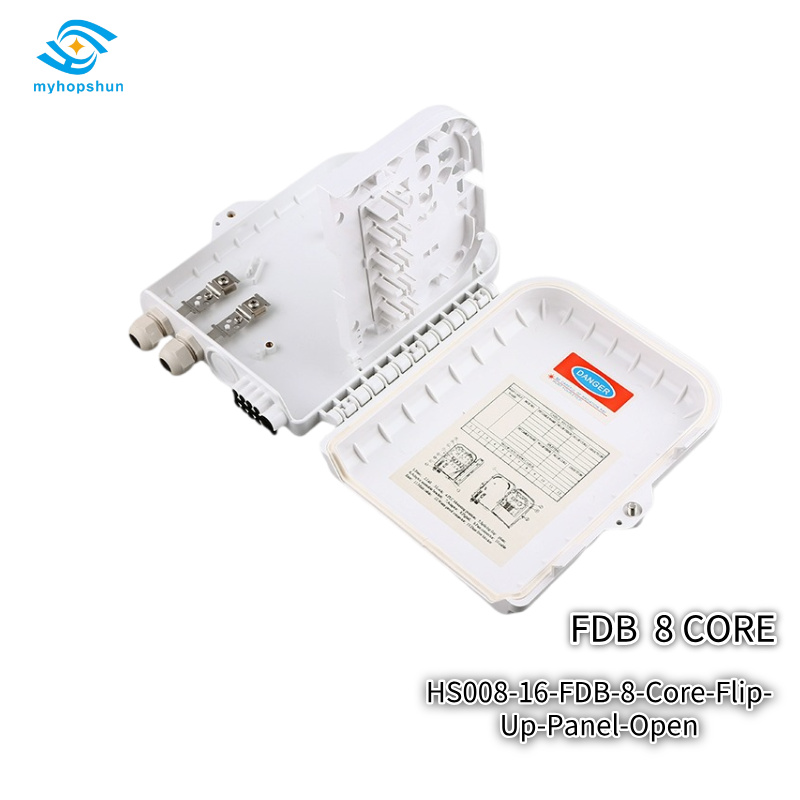

Flip-style distribution panel: Upon opening the lid, the white distribution panel can be flipped upward to reveal the feeder cable storage area at the bottom. Feeder cables can be routed using a dedicated “cup-style” entry port.

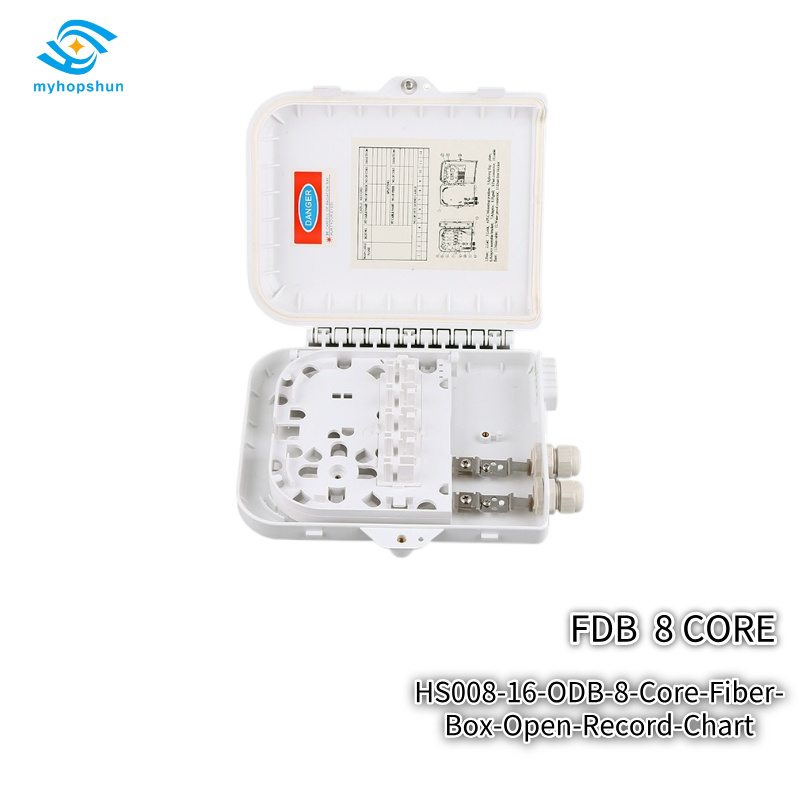

Installation log & DANGER warning label: The inside of the lid features an installation log (tracking subscriber ID, date, installer, and fiber number) alongside a red “DANGER” laser safety label.

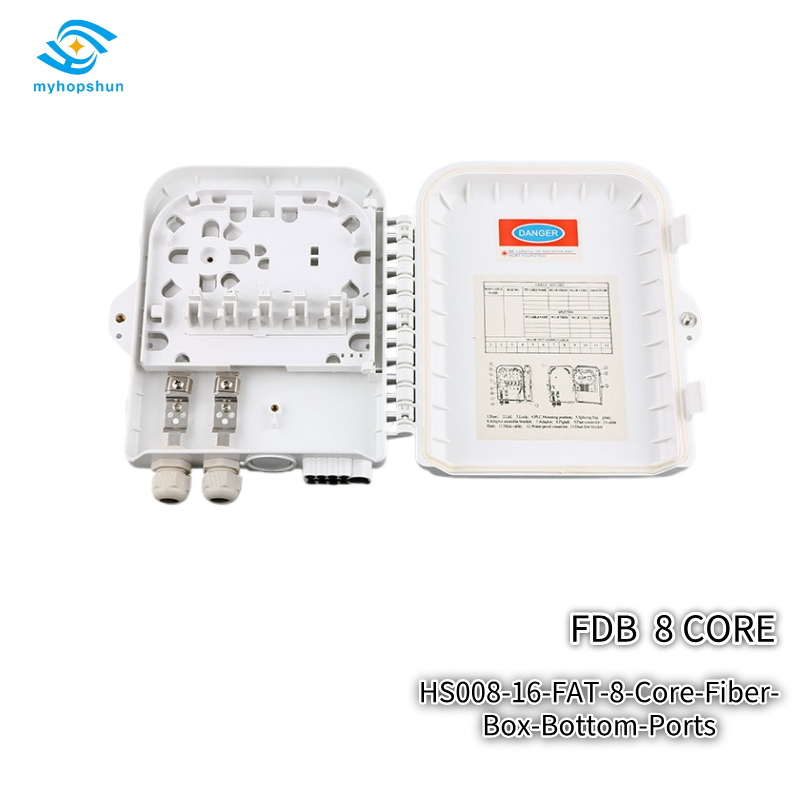

Bottom waterproof connectors: The unit is equipped with waterproof connectors and dust plugs at the bottom, allowing for independent cable entry for feeder and drop cables.
SC snap-in adapters: Designed for snap-in SC adapters, allowing for replacement without the need for splicing or complex tools.

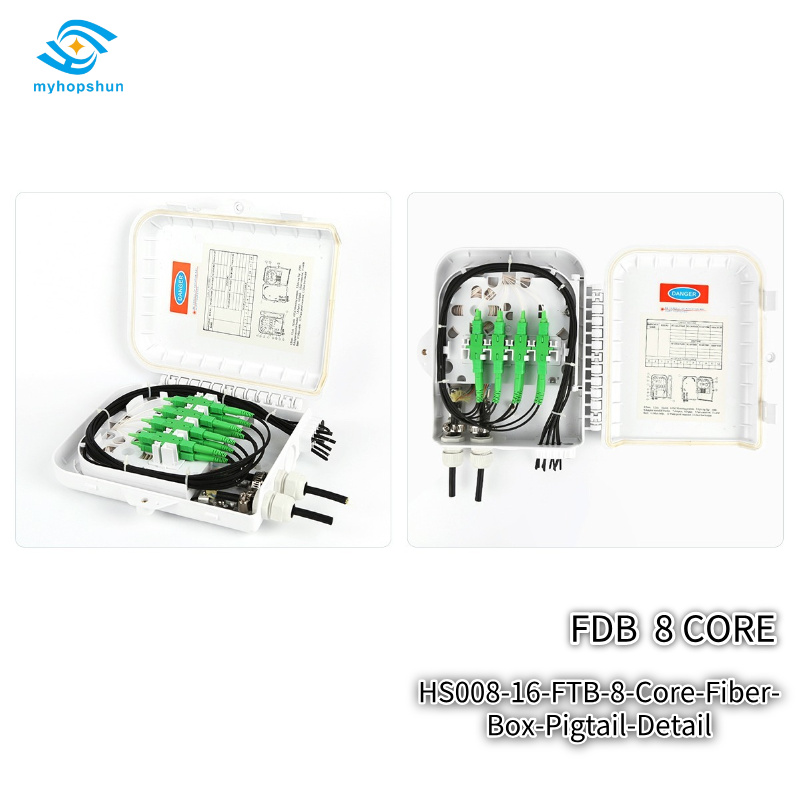

Independent routing for cables, pigtails, and patch cords: Each component has a dedicated routing path to prevent interference and ensure proper fiber bend radii.
Metal cable anchors: Internal metal fixtures securely lock the cable’s strength member in place, withstanding the strain caused by strong outdoor winds.
Dual mounting options: Supports both wall-mounted and pole-mounted configurations, suitable for indoor and outdoor use. Environmental and Optical Specifications
Dimensions: 227 × 181 × 54.5 mm
Mounting Dimensions: 145 × 120 mm
Max. Capacity (SC): 8 cores
Max. Capacity (LC): 8 cores
Max. Capacity (PLC): 8 (LC)
Protection Rating: IP66 ⭐
Material: PC+ABS (moisture-proof, waterproof, dustproof, and aging-resistant)
Key Application Scenarios
Outdoor FTTx splitting nodes (8-core SC / 8-core LC / 8 PLC).
FTTH home/office drop points (typical FAT application).
Outdoor environments requiring IP66-rated protection.
Indoor/outdoor wall-mounting or pole-mounting.
Specification
| Parameter | Technical Specification |
|---|---|
| Model | HS008-16 |
| Product Type | 8-Core Outdoor Fiber Distribution Box (FDB / ODB / FAT / FTB) |
| Dimensions (A×B×C) | 227 × 181 × 54.5 mm |
| Installation Size (D×E) | 145 × 120 mm |
| Max Capacity (SC) | 8 Cores |
| Max Capacity (LC) | 8 Cores |
| Max Capacity (PLC) | 8 (LC) |
| Material | PC + ABS (Wet-proof, water-proof, dust-proof, anti-aging) |
| Protection Level | IP66 |
| Adapter Type | Cassette Type SC |
| Installation Method | Wall-mounted / Pole-mounted (Indoor & Outdoor) |
| Cable Routing Type | Cup-joint supported |
| Lock Type | Side Lock |
| Accessories | User Manual ×1, Accessories Bag ×1 |
Faq
Q1: What is the HS008-16 used for?
A: It is an 8-core outdoor fiber distribution box (also known as FDB, ODB, FAT, or FTB) used as a termination point between feeder cable and drop cable in FTTx communication networks.
Q2: Is it an FDB, ODB, FAT, or FTB?
A: It can be classified as any of these: FDB (Fiber Distribution Box), ODB (Optical Distribution Box), FAT (Fiber Access Terminal), or FTB (Fiber Termination Box). For outdoor FTTx applications, it is most commonly called an FDB or FAT.
Q3: What is the protection level?
A: IP66. It protects against strong water jets (e.g., heavy rain or high-pressure washing), making it suitable for long-term outdoor deployment.
Q4: What is the maximum capacity?
A: Up to 8 SC, 8 LC, or 8 PLC (LC) fibers, depending on the adapter configuration.
Q5: What is the box size and installation size?
A: Box size 227×181×54.5mm; installation size 145×120mm.
Q6: Does it support cup-joint cable placement?
A: Yes, the feeder cable can be placed in a cup-joint way.
Q7: What adapter type does it support?
A: Cassette type SC adapters, easy to install and replace.
Q8: Is it suitable for outdoor use?
A: Yes. It has IP66 protection and supports wall-mounted or pole-mounted installation for both indoor and outdoor use.
Q9: Does it come with an installation record chart?
A: Yes. A “Fiber Cable Record” chart and a DANGER laser warning label are affixed to the inside of the lid.
Q10: What accessories are included?
A: User Manual ×1 and Accessories Bag ×1.
