HS008-5 8-Core Fiber Distribution Box IP65 Wall Mount FTTx Terminal Box | myhopshun

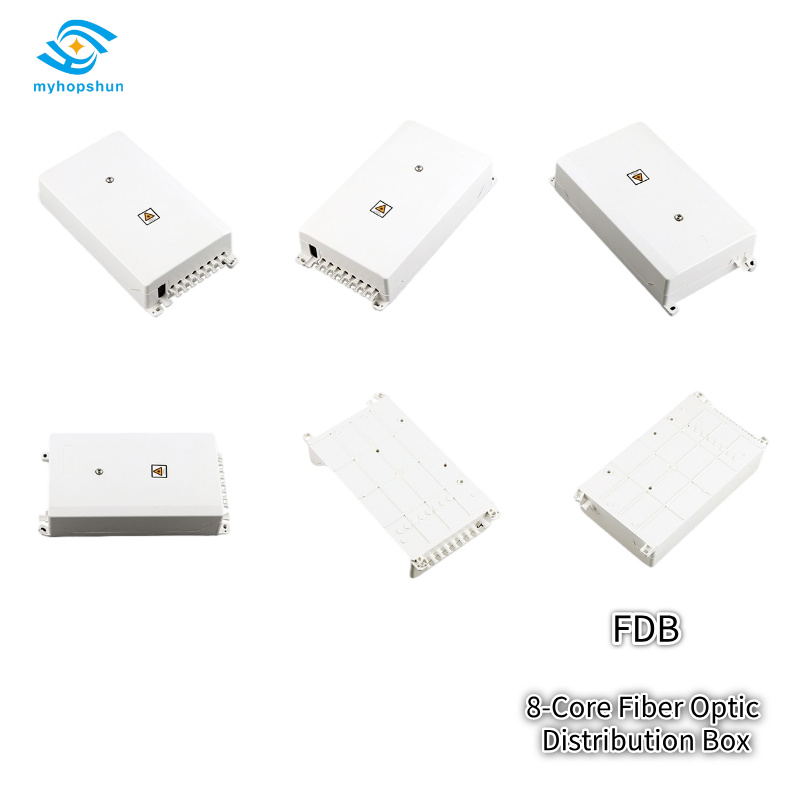

Product Description
A Perfect Blend of Compact Design and Industrial-Grade Lightning Protection
Unlike bulky outdoor distribution boxes, the HS008-5 packs a full 8-core capacity into an ultra-compact footprint of just 231×125×50mm. This makes it an ideal choice for wall-mounted installations where space is limited and a slim profile is required.
What truly sets the HS008-5 apart is its industrial-grade lightning protection. It boasts an insulation resistance of ≥2×10⁴ MΩ/500V (DC) between the grounding mechanism and metal components, and withstands voltages of ≥3000V (DC)/min without breakdown or flashover. Such a high level of electrical safety is rare in compact FTTx terminal boxes, making the HS008-5 a reliable choice for areas prone to thunderstorms or locations near power infrastructure.

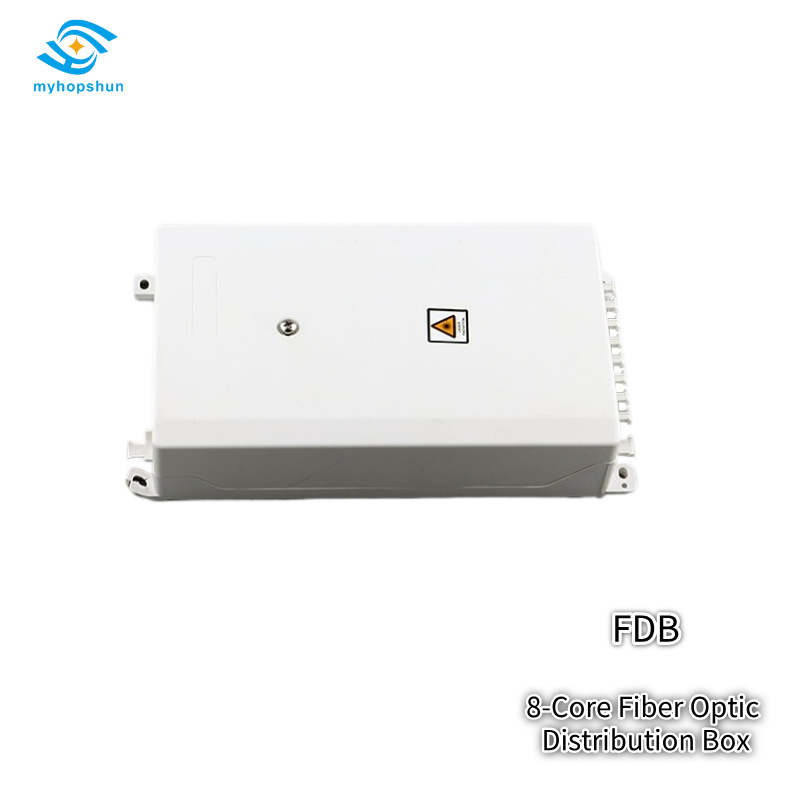

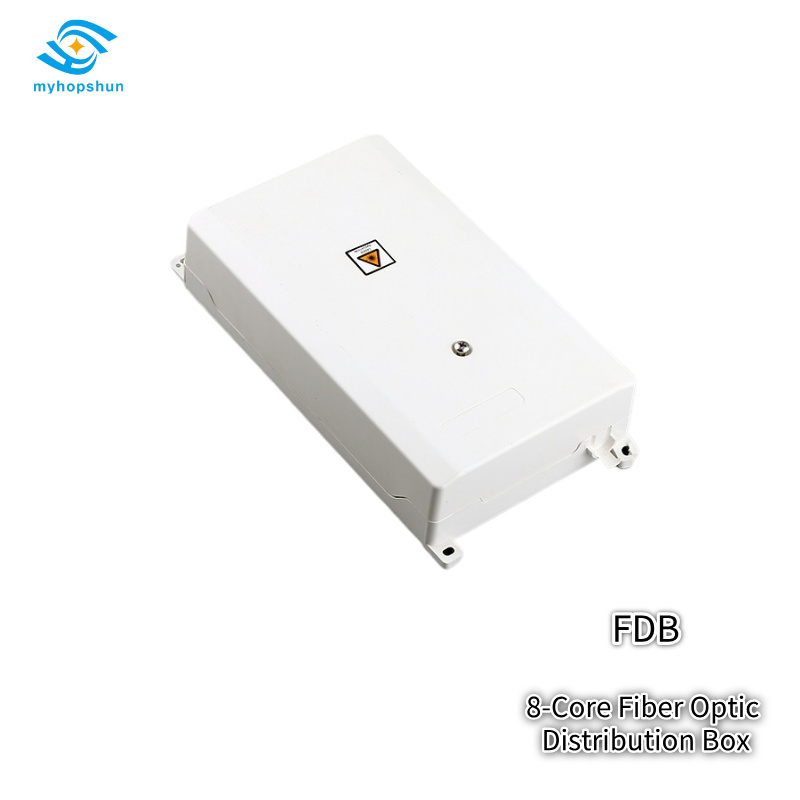

Ultra-slim wall-mount design: Featuring a low-profile design and dimensions of 231×125×50mm, it is perfectly suited for installation on walls or utility poles where space is at a premium.

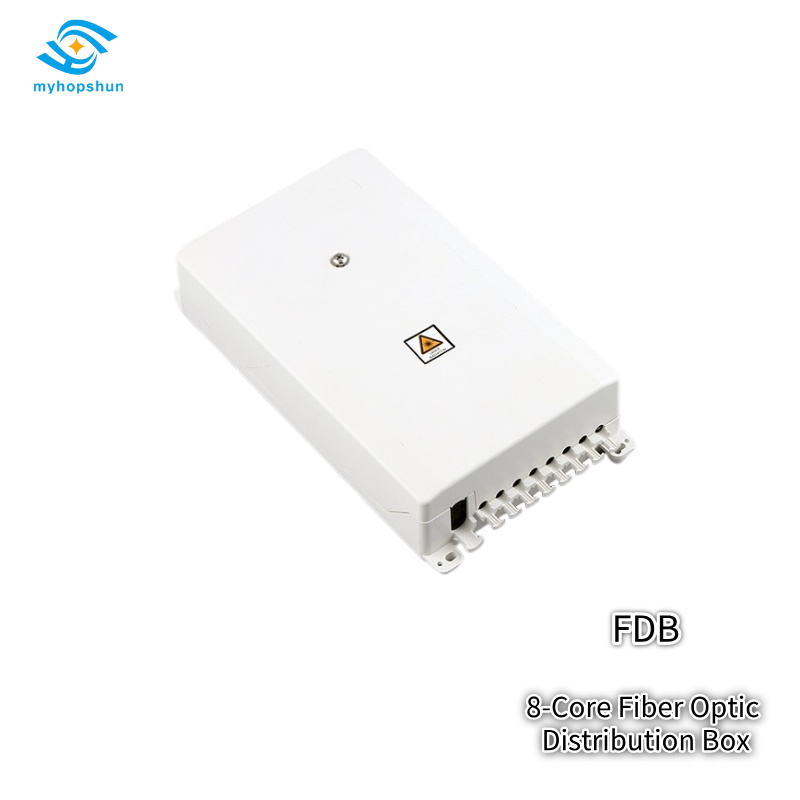

Waterproof SC/APC adapters: Supports up to 8 waterproof SC/APC adapters; the adapters share the same protection rating as the box itself, ensuring stable long-term outdoor operation.

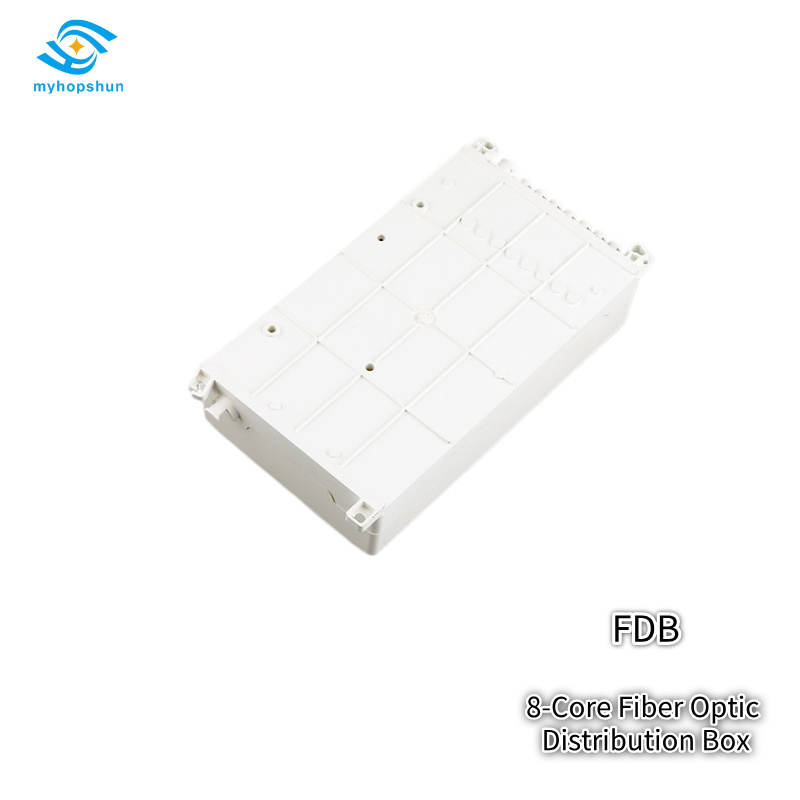

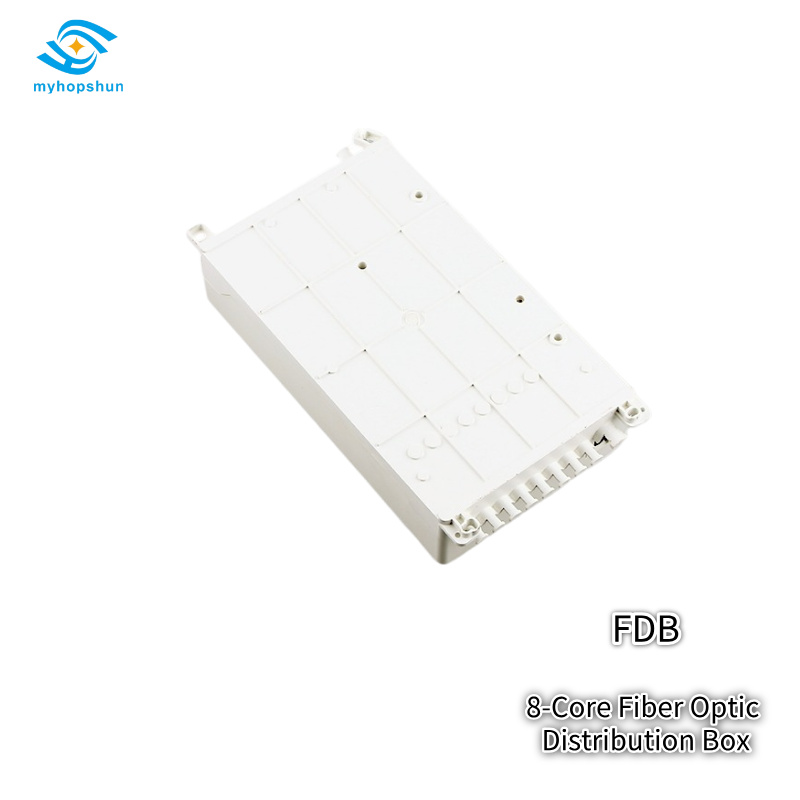

Optimized cable entry: The bottom features cable entry ports accommodating diameters of 6–10mm and branch ports up to 10mm, supporting various specifications of feeder and drop cables.
Internal flip-style structure: Equipped with a flip-out splicing flap plate; feeder cables can be routed through dedicated ports, facilitating easy maintenance and installation.
Micro-type PLC splitter installation: Supports the installation of micro-type PLC splitters, making it suitable for FTTx nodes requiring signal splitting capabilities. Environmental and Optical Specifications
Operating temperature: -40°C to +85°C
Relative humidity: ≤85% (at +30°C)
Atmospheric pressure: 70 kPa to 106 kPa
Insertion loss: ≤0.2 dB
UPC return loss: ≥50 dB
APC return loss: ≥60 dB
Key Application Scenarios
FTTx wall-mounted terminal nodes with limited space.
Outdoor fiber optic termination in areas prone to lightning storms (thanks to a 3000V withstand voltage design).
Low-density splitting nodes requiring micro-type PLC splitters.
Indoor/outdoor fiber splicing, distribution, and storage (8-fiber capacity).
Specification
| Parameter | Technical Specification |
|---|---|
| Model | HS008-5 |
| Product Type | 8-Core Fiber Distribution Box |
| Dimensions (A×B×C) | 231 × 125 × 50 mm |
| Max Capacity | 8 Cores |
| Waterproof SC/APC Adapters | 8 pcs (Max) |
| Installation Size (D×E×F) | 230 × 105 mm |
| Cable Entry Diameter | ≤ 6~10 mm |
| Max Branch Hole Size | ≤ 10 mm |
| Material | PC + ABS (Wet-proof, water-proof, dust-proof, anti-aging) |
| Protection Level | IP65 |
| Installation Method | Wall-mounted / Pole-mounted (Indoor & Outdoor) |
Environmental & Optical Performance
| Parameter | Technical Specification |
|---|---|
| Working Temperature | -40℃ ~ +85℃ |
| Relative Humidity | ≤85% (+30℃) |
| Atmospheric Pressure | 70KPa ~ 106Kpa |
| Insertion Loss | ≤0.2 dB |
| UPC Return Loss | ≥50 dB |
| APC Return Loss | ≥60 dB |
Thunder-Proof Technical Data
| Parameter | Technical Specification |
|---|---|
| Insulation Resistance | ≥2×10⁴ MΩ / 500V (DC) |
| Withstand Voltage | ≥3000V (DC)/min, no puncture, no flashover |
Faq
Q1: What is the HS008-5 used for?
A: It is an 8-core fiber distribution box used as a termination point for feeder cable and drop cable in FTTx communication networks.
Q2: What makes the HS008-5 different from other 8-core boxes?
A: It offers industrial-grade lightning protection (≥3000V DC withstand voltage) in a compact 231×125×50mm design, plus support for up to 8 waterproof SC/APC adapters.
Q3: What is the maximum capacity of the HS008-5?
A: 8 cores, with up to 8 waterproof SC/APC adapters and a micro-type PLC splitter installation option.
Q4: Is it suitable for outdoor use?
A: Yes. It has an IP65 protection rating and supports wall-mounted or pole-mounted installation for both indoor and outdoor use.
Q5: What is the optical performance?
A: Insertion loss ≤0.2dB, UPC return loss ≥50dB, APC return loss ≥60dB.
Q6: What is the working temperature range?
A: -40℃ to +85℃, with relative humidity ≤85% (+30℃).
Q7: What cable sizes are supported?
A: Cable entry diameter ≤6~10mm, max branch hole size ≤10mm.
