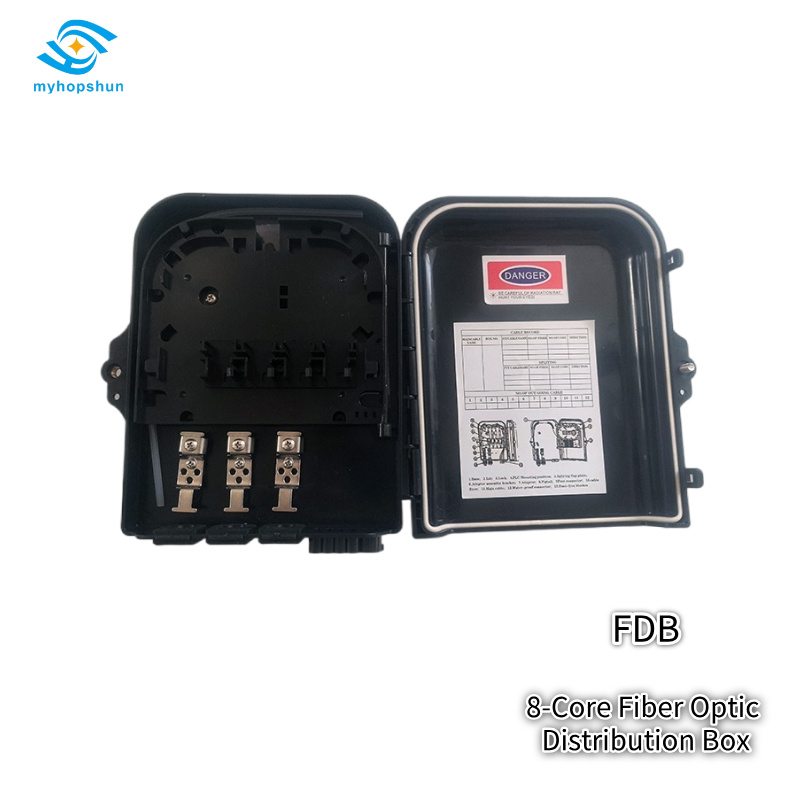

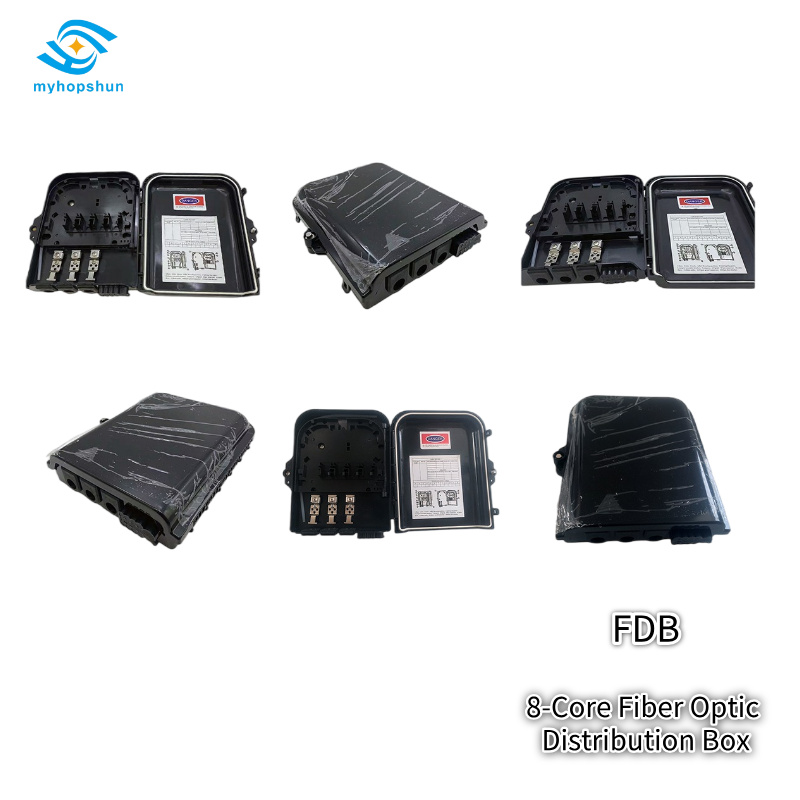

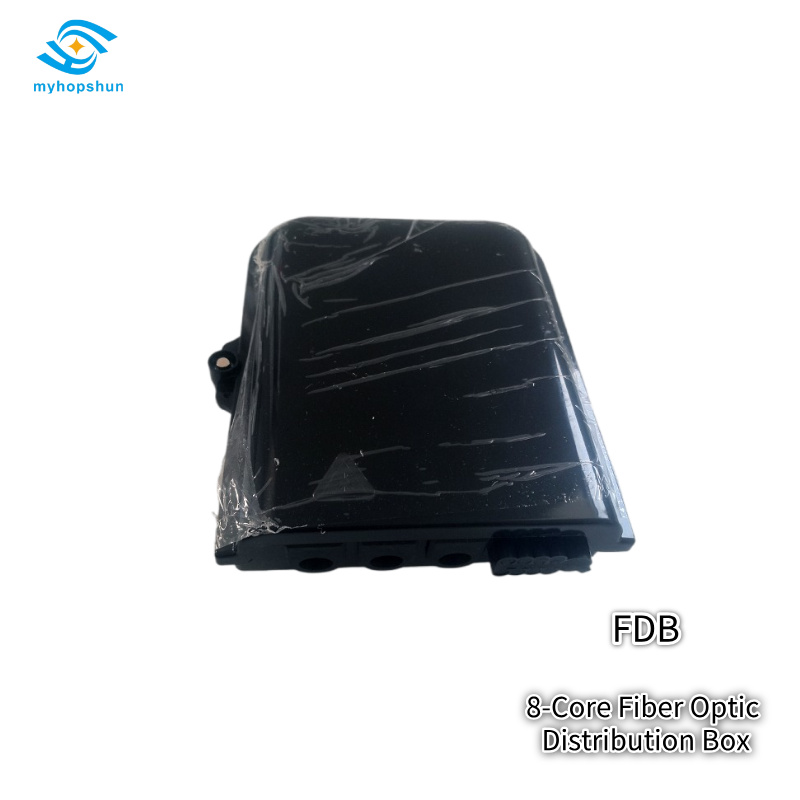

Black 8 Core Fiber Optic Distribution Box – High-Strength Industrial-Grade Version
Product Description
Why are “comprehensive accessory coverage” and “cable compatibility” key to efficient installation?
In FTTx network deployment, the most time-consuming tasks often involve sourcing matching installation hardware and accommodating fiber optic cables with varying outer diameters. Designed with practical field requirements in mind, the HS008-3 is more than just a rugged distribution box; it is a complete termination solution.
Installation Advantages
The HS008-3 comes standard with a comprehensive accessory kit: four 4mm x 40mm screws, four M6 expansion bolts, six 3mm x 10mm cable ties, eight 60mm heat-shrink sleeves, three hose clamps, and a dedicated key. This eliminates the need for installers to source additional parts, allowing for immediate installation upon arrival at the site.

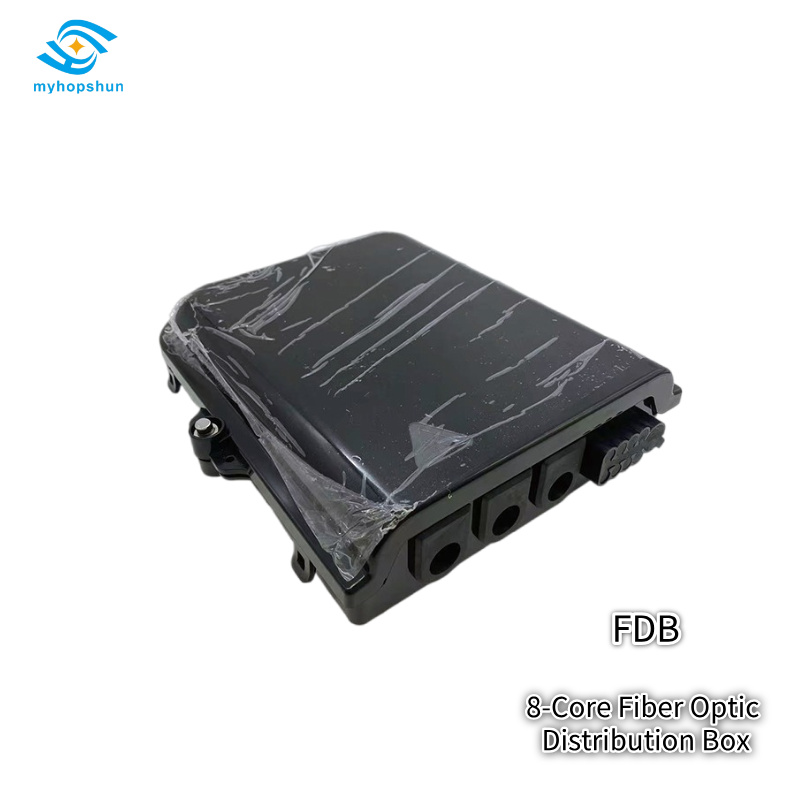

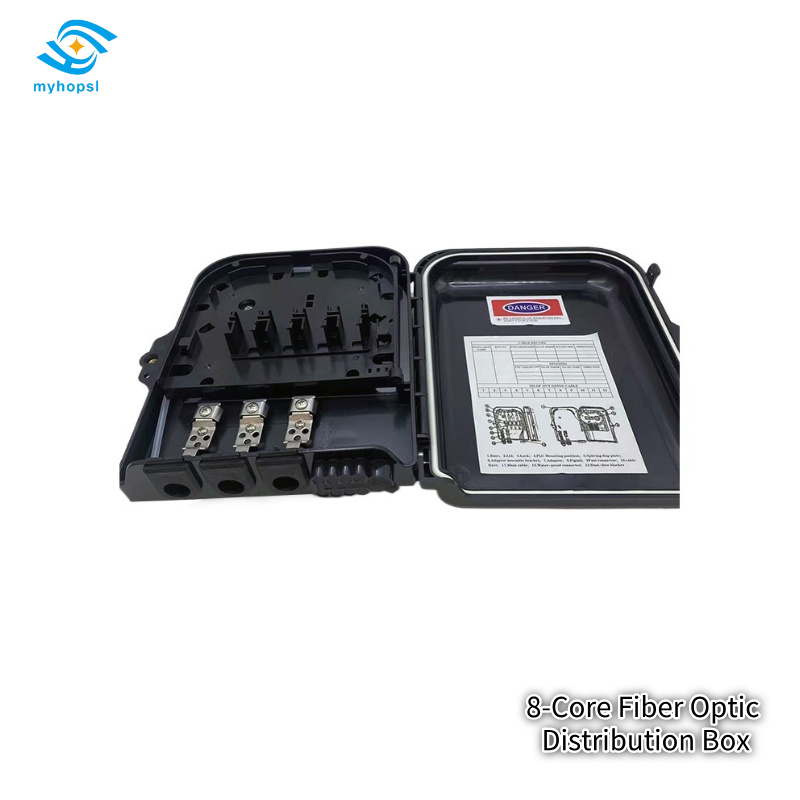

Field-Ready Cable Compatibility: The unit features cable entry/exit ports at the bottom accommodating diameters of 5–10mm. It supports standard 2x3mm indoor FTTH drop cables and is fully compatible with outdoor figure-8 self-supporting drop cables. Integrated dust plugs ensure that unused ports remain tightly sealed.
Key Application Scenarios
Pre-installation and on-site installation for FTTH (Fiber to the Home) networks.
Outdoor nodes requiring connections for figure-8 self-supporting drop cables.
Overseas projects requiring cost-effective, ABS-material units that comply with RoHS environmental standards.
Specification
| Parameter | Technical Specification |
|---|---|
| Model | HS008-3 |
| Product Type | 8-Core Splitting / Distribution Box |
| Dimensions (A×B×C) | 230 × 195 × 54.5 mm |
| Max Capacity | 8 Cores (1 tray, 8 core/tray) |
| Max Adaptors | 8 pcs of SC (Max) |
| Weight | 0.55 kg |
| Material | High-Strength ABS (Wet-proof, water-proof, dust-proof, anti-aging, RoHS compliant) |
| Cable Ports | 5-10 mm |
| Cable Compatibility | 2x3mm indoor FTTH drop cable & outdoor figure 8 FTTH self-supporting drop cable |
| Installation Method | Wall-mounted / Pole-mounted (Suitable for indoor and outdoor use) |
