8+1 Port PoE Switch 120W | SFP Uplink | 250m Long Range | myhopshun
Product Description
Why Choose a 120W 8+1 PoE Switch?
Compared with the 96W version, this 120W model offers a higher power budget, making it suitable for deployments with more PoE devices or higher-power devices such as PTZ speed domes and Wi-Fi 6 access points. It combines 8 PoE ports with a dedicated SFP fiber uplink, so you can connect to a distant network backbone without occupying a copper uplink port.
The 250m long-range PoE mode extends both power and data well beyond the standard 100m limit, making it ideal for large yards, parking lots, warehouses, and industrial sites. The watchdog auto-reset function automatically reboots the switch if it freezes, ensuring stable operation for heavy-load applications like HD IP cameras.
Key Design Highlights
-
8× 10/100M PoE Ports + 1× 100M SFP Fiber Uplink
Direct fiber uplink saves copper ports and supports long-distance backbone connections. -
120W PoE Power Budget
Supports more PoE devices or higher-power devices compared with 96W models. -
IEEE 802.3af/at PoE Support
Intelligently detects and powers compliant devices without damaging them. -
250m Long-Range PoE (Link Extension Mode)
Extends power and data up to 250 meters (speed becomes 10M in this mode). -
Watchdog Auto-Reset
Automatically reboots the switch if it freezes, ensuring stable operation for heavy-load applications. -
Plug-and-Play with Auto MDI/MDIX
Auto-negotiates 10/100Mbps and supports full/half duplex. No configuration required. -
IP30 Metal Housing & Excellent Heat Dissipation
Fanless design for quiet, reliable operation in industrial and commercial environments.
Applications
-
IP surveillance (up to 8 cameras, including PTZ)
-
Wireless AP coverage (small to medium areas)
-
VoIP telephony
-
Small-to-medium enterprise access networks
-
Long-distance camera deployments (up to 250m)
Specification
| Parameter | Technical Specification |
|---|---|
| Product Type | Fast Ethernet PoE Switch |
| Model | GW-P801FID-A / GW-P801FID-B |
| Ports | 8× PoE 10/100M RJ45 + 1× 100M SFP Fiber Uplink |
| PoE Standard | IEEE 802.3af / 802.3at |
| Max PoE Distance | Up to 250m (link extension mode) |
| Power Consumption | < 120W (full load) |
| Input Voltage | AC 176V–264V |
| Power Supply | Built-in DC 52V 2.3A |
| Switching Capacity | 2.6Gbps |
| Forwarding Rate | 1.9344Mpps |
| MAC Address Table | 4K |
| Network Standards | IEEE 802.3, 802.3u, 802.3x |
| Network Topology | Ring, star, bus, tree |
| Switching Mode | Store-and-forward |
| Polarity Reversal | Supported |
| Flow Control | Supported |
| Duplex | Full-duplex & half-duplex |
| Auto Features | Auto MDI/MDIX, auto-negotiation |
| Watchdog | Auto-reset for freeze prevention |
| LED Indicators | PWR, POE (red), Link/Act (blue), SYN |
| Protection Rating | IP30 |
| Housing | High-quality metal, fanless |
| MTBF | 100,000 hours |
| Operating / Storage Temp. | -10℃ ~ +70℃ |
| Relative Humidity | 5% ~ 95% (non-condensing) |

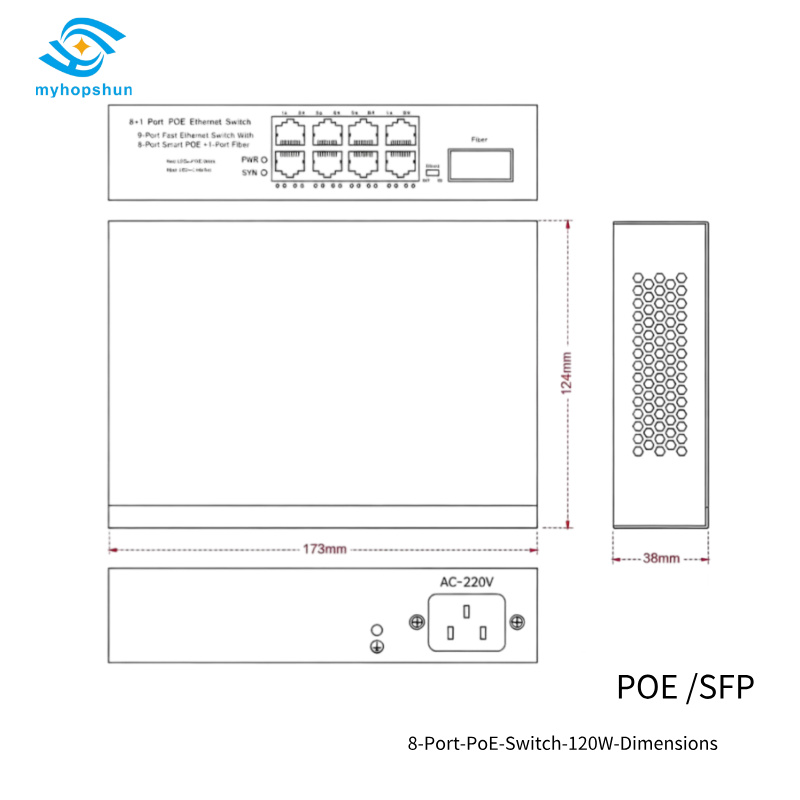

| Dimensions (W×D×H) | 173 × 124 × 38 mm (excluding protrusions) |
| Weight | 0.9 kg/unit |
| Package | 40 units/carton |
| Package Contents | Switch ×1, Power Cord ×1, User Manual ×1, Certificate ×1, Warranty Card ×1 |
Faq
Q1: What is an 8+1 Fast Ethernet PoE switch 120W?
A: It is a Fast Ethernet PoE switch with 8 PoE ports, 1 SFP fiber uplink, and a 120W power budget. It delivers power and data over a single Ethernet cable.
Q2: How many PoE ports does this switch have?
A: 8× 10/100M PoE ports.
Q3: What is the difference between the 120W and 96W versions?
A: The 120W version offers a higher power budget, allowing it to support more PoE devices or higher-power devices such as PTZ cameras and Wi-Fi 6 APs.
Q4: What is the maximum PoE distance?
A: Up to 250 meters in link extension mode (speed becomes 10M in this mode).
Q5: What PoE standards are supported?
A: IEEE 802.3af and IEEE 802.3at.
Q6: What is the total power consumption?
A: Less than 120W at full load.
Q7: Does it have a fiber uplink?
A: Yes. It has 1× 100M SFP fiber uplink port.
Q8: Is it plug-and-play?
A: Yes. It supports auto MDI/MDIX and auto-negotiation.
Q9: What is the watchdog function?
A: It automatically resets the switch if it freezes, ensuring stable operation for heavy-load applications like HD IP cameras.
Q10: What is the operating temperature range?
A: -10℃ to +70℃.
Q11: What is the MTBF?
A: 100,000 hours.
Q12: What is the dimensions and weight?
A: 173×124×38mm (excluding protrusions); weight 0.9kg.
Q13: What is included in the package?
A: Switch ×1, Power Cord ×1, User Manual ×1, Certificate ×1, Warranty Card ×1.
Q14: What are the typical applications?
A: IP surveillance, wireless AP coverage, VoIP, small-to-medium enterprise networks, and long-distance camera deployments.
Q15: What is the switching mode?
A: Store-and-forward.
Q16: Does it support VLAN?
A: No, this is an unmanaged switch.
Q17: What is the MAC address table size?
A: 4K.
Q18: What is the switching capacity and forwarding rate?
A: 2.6Gbps switching capacity and 1.9344Mpps forwarding rate.
