8-Port Gigabit PoE Web Managed Switch 2 Uplink 96W MTK Chipset myhopshun
Product Description
Why Choose an 8+2 Web Managed PoE Switch?
Standard unmanaged PoE switches lack the flexibility and control required for growing networks. This 8-port Gigabit PoE Web Managed Switch combines 8 PoE ports + 2 uplink ports with Web-based management, allowing you to configure VLANs, QoS, port mirroring, and security policies directly from a browser.
Powered by an MTK chipset, it delivers reliable switching performance with a 20Gbps switching capacity and 14.888Mpps forwarding rate. The 96W PoE budget provides sufficient power for IP cameras, wireless APs, VoIP phones, and other PoE devices.
Key Design Highlights
-

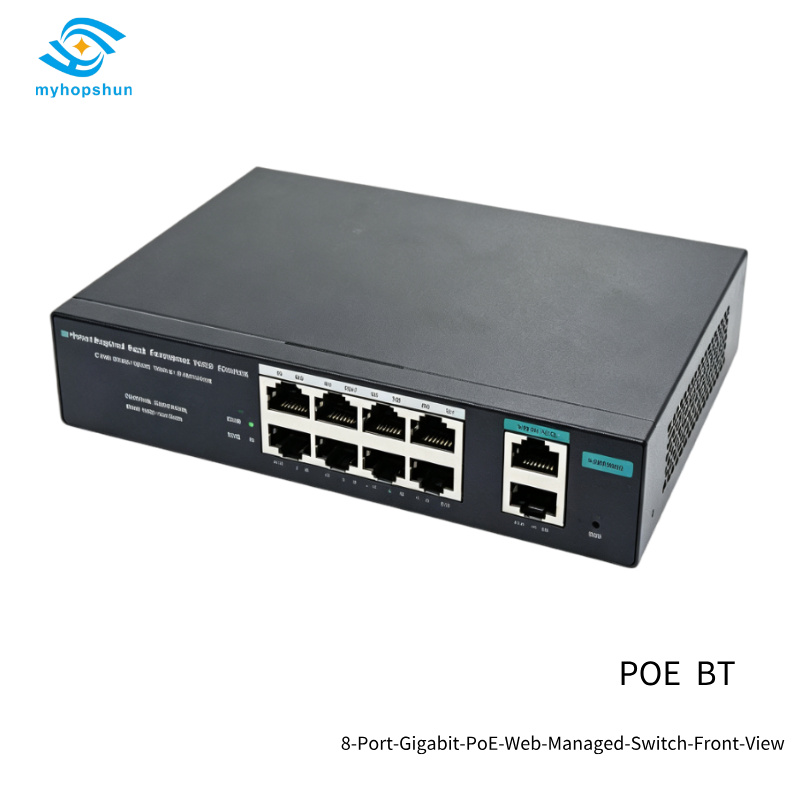

8× Gigabit PoE Ports + 2× Gigabit Uplink Ports
Flexible connectivity for access and aggregation. -
Web Managed with MTK Chipset
Supports system information, IP settings, account settings, port management, and firmware upgrade. -
Advanced VLAN Support
MTU VLAN, Port VLAN, 802.1Q VLAN, Voice VLAN, and Surveillance VLAN. -
QoS & Security
QoS basic/advanced configuration, MAC management, storm suppression, traffic monitoring, cable detection, and DHCP Snooping. -
Reliable Network Protocols
IGMP Snooping, link aggregation, loop protection, port mirroring, port rate limiting, jumbo frame, EEE, SNMP, and RSTP. -
IP30 Metal Housing
High-quality metal case with excellent heat dissipation for stable operation. -
Plug-and-Play with Web Management
Default IP: 192.168.2.254; default username/password: admin. -
Compact & Lightweight
Dimensions: 173×124×38mm (excluding protrusions); weight: 0.67kg.
Applications
-
Small-to-medium IP surveillance networks
-
Wireless AP coverage
-
VoIP telephony
-
Enterprise access/aggregation layers
-
Smart home and industrial automation
Specification
| Parameter | Technical Specification |
|---|---|
| Product Type | Managed Full Gigabit PoE Ethernet Switch |
| Model | ZSTX-IND9208Wp-DF |
| Ports | 8× PoE 10/100/1000M RJ45 + 2× 100/1000M RJ45 Uplink |
| PoE Budget | 96W |
| Power Consumption | < 200W (full load) |
| Input Voltage | AC 176V–264V |

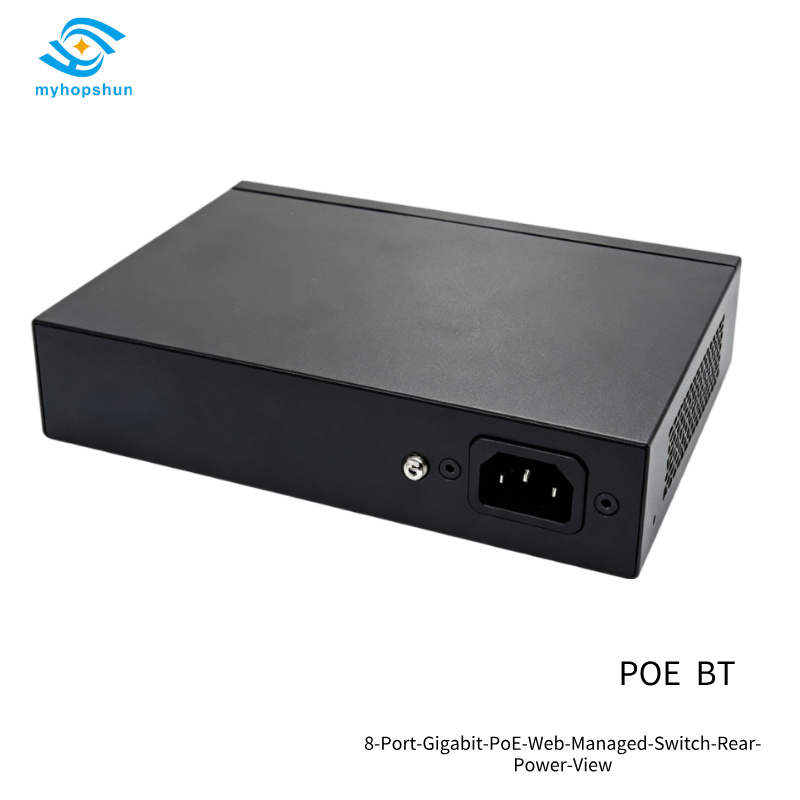

| Power Supply | Built-in DC 52V 1.85A |
| Switching Capacity | 20Gbps |
| Forwarding Rate | 14.888Mpps |
| MAC Address Table | 8K |
| Network Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x |
| Network Topology | Ring, star, bus, tree |
| VLAN | MTU VLAN, Port VLAN, 802.1Q VLAN, Voice VLAN, Surveillance VLAN |
| QoS | Basic & advanced QoS configuration |
| Management | Web management, SNMP, IGMP Snooping, RSTP, link aggregation, port mirroring, port rate limiting, jumbo frame, EEE |
| Security | MAC management, storm suppression, traffic monitoring, cable detection, DHCP Snooping |
| Tools | System upgrade, Ping, backup/restore, system recovery, configuration save, system reboot |
| Reset | Long press 7s to restore factory settings |
| LED Indicators | PWR, POE (red), Link/Act (blue), SYS |
| Protection Rating | IP30 |
| Housing | High-quality metal |
| MTBF | 100,000 hours |
| Operating / Storage Temp. | -10℃ ~ +70℃ |
| Relative Humidity | 5% ~ 95% (non-condensing) |
| Dimensions (W×D×H) | 173 × 124 × 38 mm (excluding protrusions) |
| Weight | 0.67 kg/unit |
| Package | 40 units/carton |
| Package Contents | Switch ×1, Power Cord ×1, User Manual ×1, Certificate ×1, Warranty Card ×1 |
| Default IP | 192.168.2.254 |
| Default Login | admin / admin |
Faq
Q1: What is an 8+2 Web Managed PoE switch?
A: It is a Gigabit PoE switch with 8 PoE ports and 2 uplink ports, featuring Web-based management for VLAN, QoS, security, and network monitoring.
Q2: How many PoE ports does this switch have?
A: 8× Gigabit PoE ports and 2× Gigabit uplink ports.
Q3: What is the PoE budget?
A: 96W total PoE budget.
Q4: What chipset does it use?
A: MTK chipset for reliable switching performance.
Q5: Is it Web managed?
A: Yes. You can access the Web interface via default IP 192.168.2.254 with username/password admin.
Q6: What VLAN features are supported?
A: MTU VLAN, Port VLAN, 802.1Q VLAN, Voice VLAN, and Surveillance VLAN.
Q7: What management protocols are supported?
A: SNMP, IGMP Snooping, RSTP, link aggregation, port mirroring, port rate limiting, jumbo frame, and EEE.
Q8: What security features are included?
A: MAC management, storm suppression, traffic monitoring, cable detection, and DHCP Snooping.
Q9: What is the switching capacity and forwarding rate?
A: 20Gbps switching capacity and 14.888Mpps forwarding rate.
Q10: What is the MAC address table size?
A: 8K MAC addresses.
Q11: What is the operating temperature range?
A: -10℃ to +70℃.
Q12: What is the protection rating and housing material?
A: IP30 protection rating with a high-quality metal housing.
Q13: What is the MTBF?
A: 100,000 hours.
Q14: What is included in the package?
A: Switch ×1, Power Cord ×1, User Manual ×1, Certificate ×1, Warranty Card ×1.
Q15: What is the default IP and login?
A: Default IP: 192.168.2.254; default username/password: admin/admin.
