8 CORE Fibre Distribution Box

Solving Challenges in FTTx Network Expansion and Maintenance
1. In the deployment of FTTx (Fiber-to-the-x) network terminals, how can capacity be seamlessly expanded as the user base grows without replacing the entire enclosure? The DHT008 8-core fiber distribution box provides the perfect solution through its modular structural design.
2. Modular Cable Entry/Exit Design: The unit features two waterproof cable glands and a row of eight black dust plugs at the bottom. This design allows for flexible cable connection based on actual requirements: unused ports remain tightly sealed with dust plugs to maintain an IP66 rating, while expansion simply involves removing a plug to insert a new drop cable—eliminating the need for drilling and significantly boosting installation efficiency.

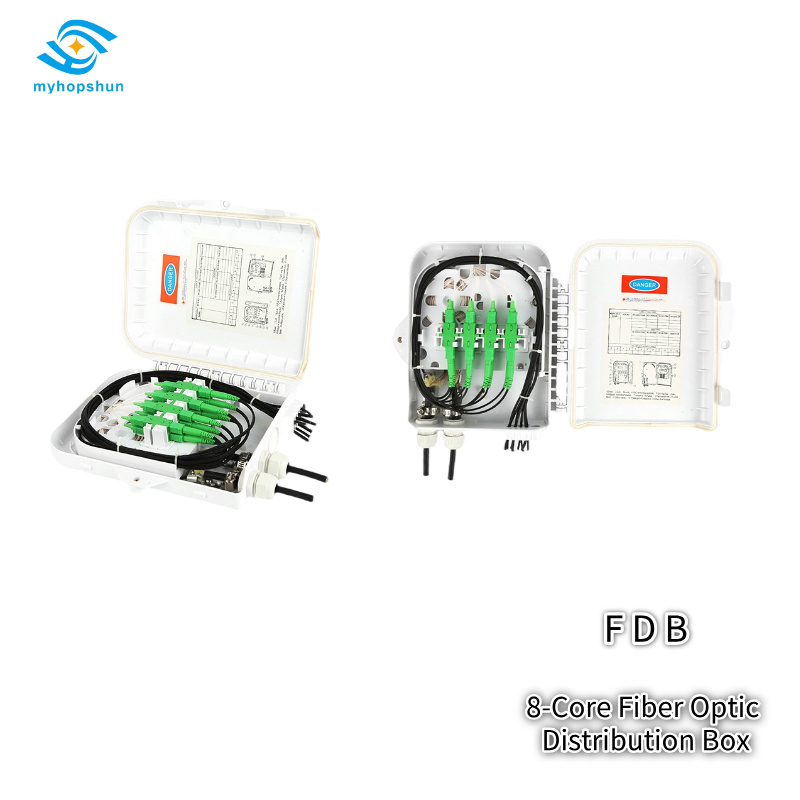

3. Security and Protection: A screw-lock mechanism (with a protective cover) is located in the center of the front panel. Unlike traditional padlocks, this design prevents unauthorized access while eliminating the operational hassles associated with lost keys. Inside the enclosure, a thick white waterproof gasket is clearly visible; this is the key component ensuring IP66-rated protection against dust and powerful water jets.

Key Application Scenarios
High-density FTTH nodes requiring 8-core SC connectivity or 8-core LC/PLC splitting.
FTTx drop points mounted on outdoor poles or building facades, particularly suitable for harsh environments with high wind and dust levels.
Carrier-grade fiber distribution boxes requiring frequent capacity expansion and strict post-installation maintenance management.
