HS008-7 8-Core Fiber Distribution Box IP65 Wall Mount FTTx Terminal Box with 8 Waterproof Ports
Product Description
Modular Waterproof Ports: A Real-World Advantage
Most 8-fiber distribution boxes feature a single large cable entry port, forcing installers to manually seal unused openings. The HS008-7 adopts a different design: its base plate is equipped with eight independent waterproof cable glands and one main feeder cable port. Each gland can be opened or sealed individually, ensuring that only the ports actually in use are exposed. This modular design maintains an IP65 protection rating even when connecting only two or three drop cables—a significant advantage for phased FTTx deployments where the number of subscribers grows over time.

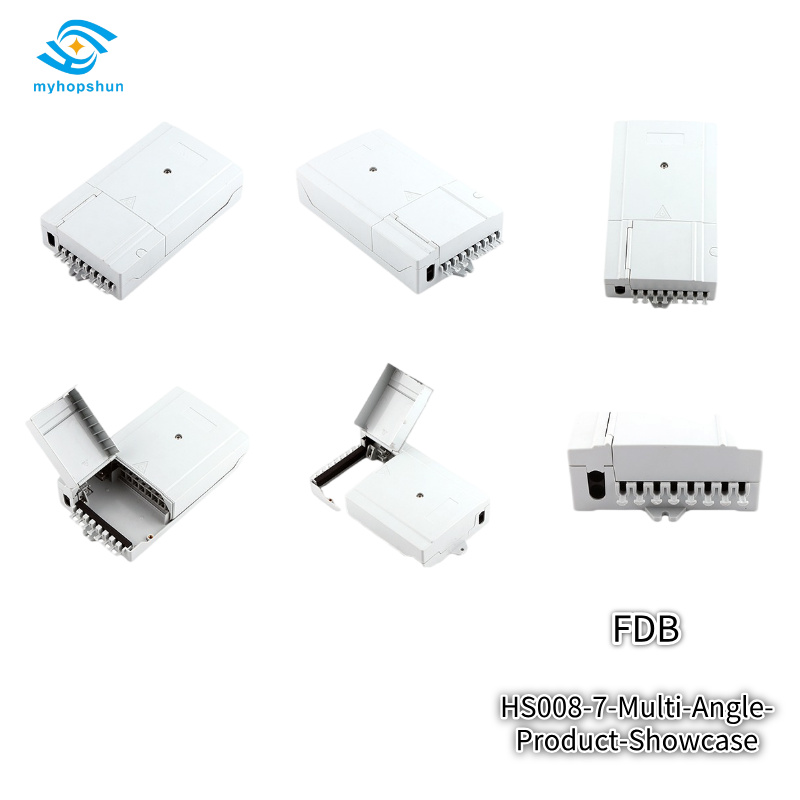

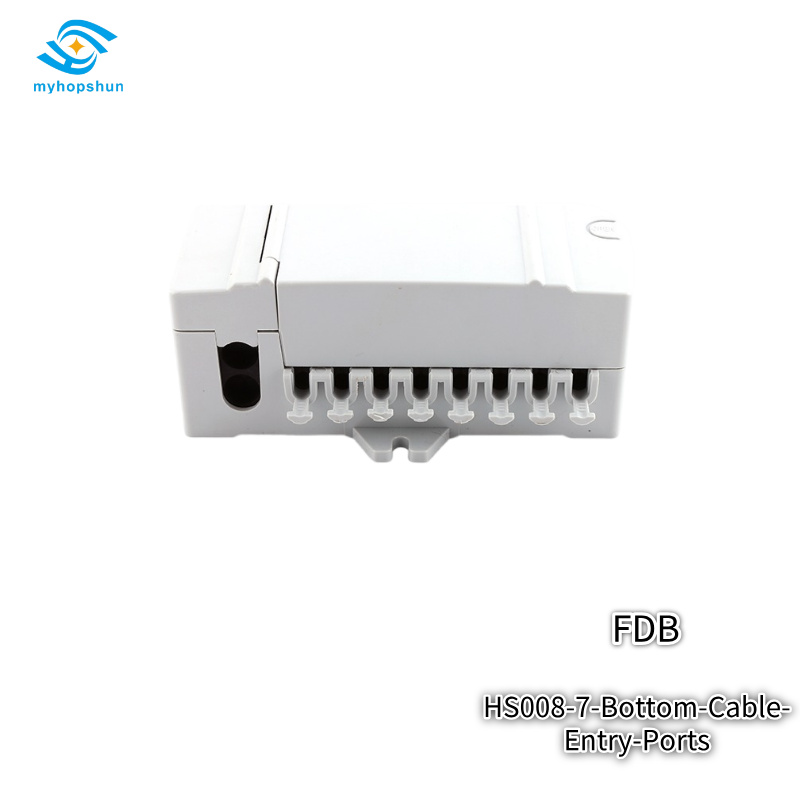

Eight Independent Waterproof Glands: A neat row of white waterproof glands lines the bottom, each sealed independently. Unused glands remain closed without needing to be cut open. This offers greater reliability and more consistent waterproofing performance compared to traditional designs that rely on a single large hole and dust plugs.

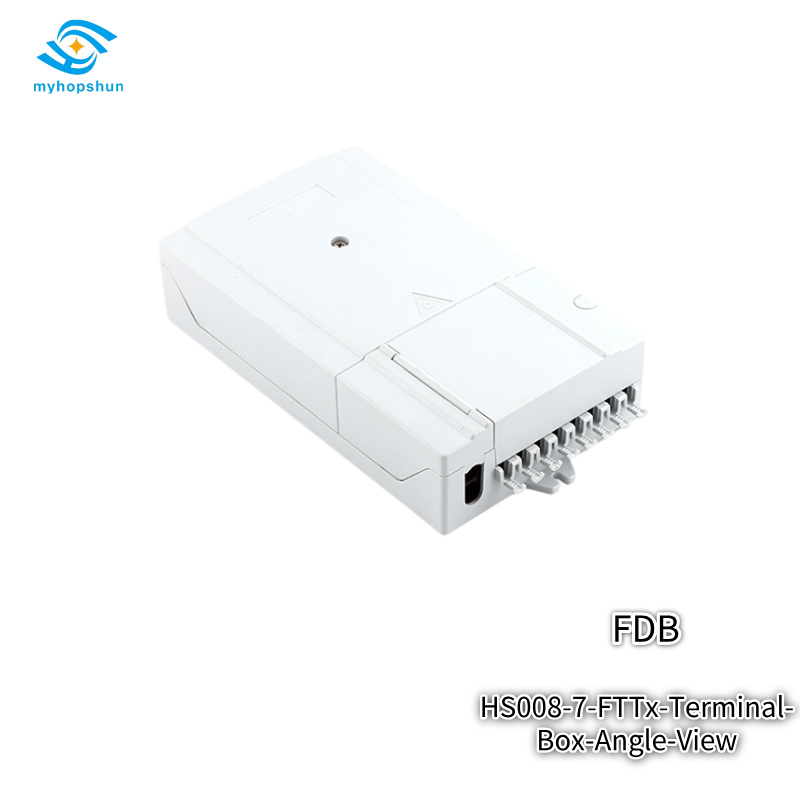

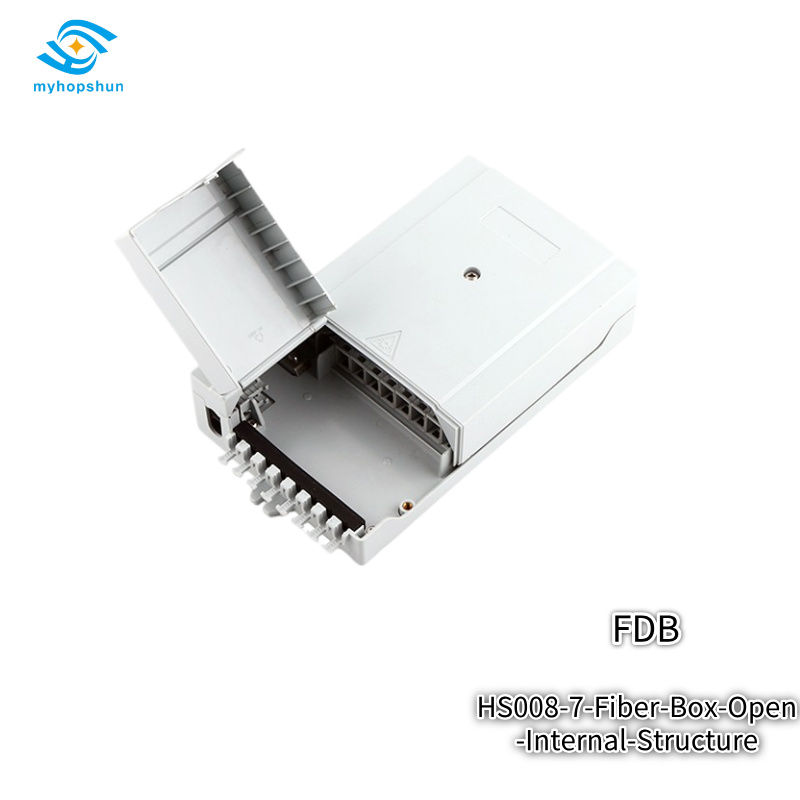

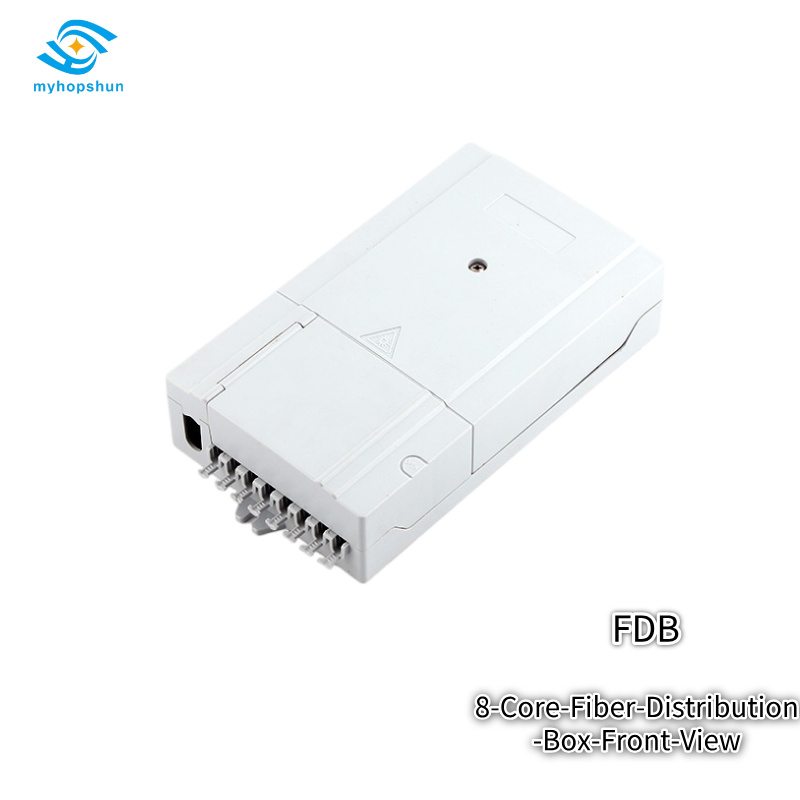

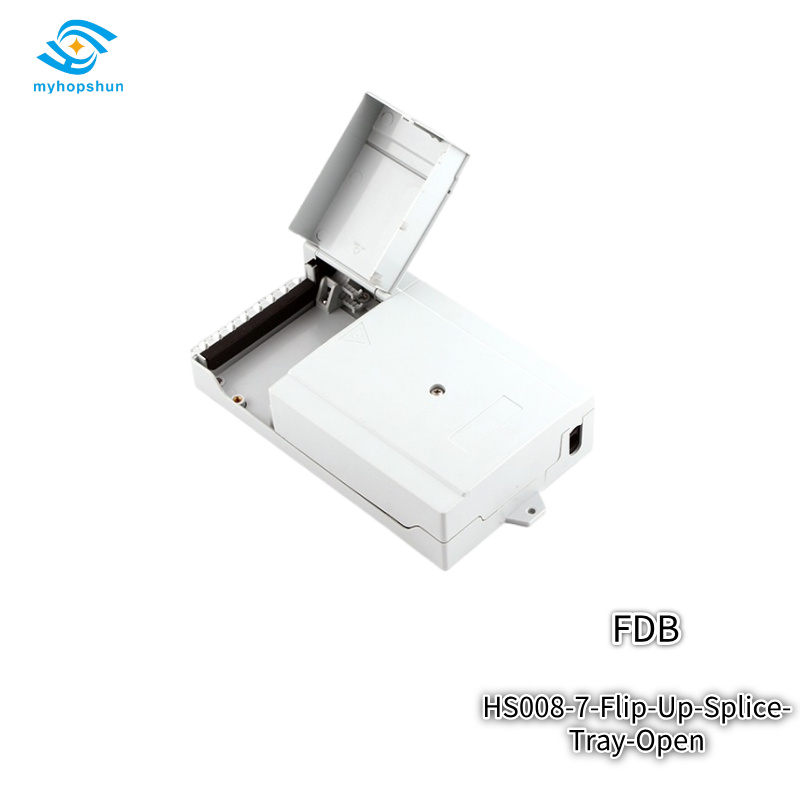

Flip-Style Splice Tray: Upon opening the lid, the white flip-style splice tray can be lifted to reveal the feeder cable storage area beneath. Feeder cables can be routed through a dedicated expression port, making maintenance and capacity expansion highly convenient.
Ultra-Slim Wall-Mount Design: With a low-profile form factor of 231 × 125 × 50 mm, it is suitable for installation on walls or utility poles where space is limited.
Laser Warning Label: A yellow triangular laser warning label on the front of the lid ensures compliance with international safety standards for FTTx equipment. Environmental and Optical Specifications
Operating temperature: -40°C to +85°C
Relative humidity: ≤85% (+30°C)
Atmospheric pressure: 70 kPa to 106 kPa
Insertion loss: ≤0.2 dB
UPC return loss: ≥50 dB
APC return loss: ≥60 dB
Lightning Protection Specifications
Insulation resistance: ≥2×10⁴ MΩ / 500V (DC) between the grounding device and metal enclosure components
Withstand voltage: ≥3000V (DC)/min between the grounding device and the enclosure/metal components (no breakdown or flashover)
Key Application Scenarios
Space-constrained FTTx wall-mounted terminal nodes.
FTTx projects with phased deployment and gradual subscriber growth (enabled by the independent waterproof connector design).
Outdoor fiber termination in lightning-prone areas (3000V withstand voltage design).
Low-density splitting nodes requiring micro-type PLC splitters.
Specification
| Parameter | Technical Specification |
|---|---|
| Model | HS008-7 |
| Product Type | 8-Core Fiber Distribution Box |
| Dimensions (A×B×C) | 231 × 125 × 50 mm |
| Max Capacity | 8 Cores |
| Waterproof SC/APC Adapters | 8 pcs (Max) |
| Cable Entry Ports | 1 Main Port + 8 Independent Waterproof Glands |
| Installation Size (D×E×F) | 230 × 105 mm |
| Cable Entry Diameter | ≤ 6~10 mm |
| Max Branch Hole Size | ≤ 10 mm |
| Material | PC + ABS (Wet-proof, water-proof, dust-proof, anti-aging) |
| Protection Level | IP65 |
| Installation Method | Wall-mounted / Pole-mounted (Indoor & Outdoor) |
Environmental & Optical Performance
| Parameter | Technical Specification |
|---|---|
| Working Temperature | -40℃ ~ +85℃ |
| Relative Humidity | ≤85% (+30℃) |
| Atmospheric Pressure | 70KPa ~ 106Kpa |
| Insertion Loss | ≤0.2 dB |
| UPC Return Loss | ≥50 dB |
| APC Return Loss | ≥60 dB |
Thunder-Proof Technical Data
| Parameter | Technical Specification |
|---|---|
| Insulation Resistance | ≥2×10⁴ MΩ / 500V (DC) |
| Withstand Voltage | ≥3000V (DC)/min, no puncture, no flashover |
Faq
Q1: What is the HS008-7 used for?
A: It is an 8-core fiber distribution box used as a termination point for feeder cable and drop cable in FTTx communication networks.
Q2: What makes the HS008-7 different from other 8-core boxes?
A: Its bottom panel features 8 independent waterproof cable glands plus one main feeder port, allowing installers to open only the ports they need while keeping the IP65 rating intact.
Q3: What is the maximum capacity?
A: 8 cores, with up to 8 waterproof SC/APC adapters and a micro-type PLC splitter option.
Q4: Is it suitable for outdoor use?
A: Yes. It has an IP65 rating and supports wall-mounted or pole-mounted installation for indoor and outdoor use.
Q5: What is the optical performance?
A: Insertion loss ≤0.2dB, UPC return loss ≥50dB, APC return loss ≥60dB.
Q6: What is the working temperature range?
A: -40℃ to +85℃, relative humidity ≤85% (+30℃).
Q7: What cable sizes are supported?
A: Cable entry diameter ≤6~10mm, max branch hole size ≤10mm.
