4+1+1 Port Fast Ethernet PoE Switch | SFP Uplink | 250m PoE | 52W | myhopshun
Product Description
Why Choose a Fast Ethernet PoE Switch with SFP Uplink?
Not every network needs Gigabit speeds. For IP cameras, wireless APs, and VoIP phones that only require 10/100M connectivity, this 4+1+1 Fast Ethernet PoE Switch offers the perfect balance of performance, long-range PoE, and fiber uplink flexibility—at a lower cost than Gigabit models.
The SFP fiber uplink allows you to connect the switch to a distant network backbone or another switch over fiber, eliminating the 100m copper limit. The 250m PoE long-range mode extends power and data to cameras located far from the power source, making it ideal for large yards, parking lots, and industrial sites.
Key Design Highlights
-
4× 10/100M PoE Ports + 1× 10/100M RJ45 Uplink + 1× 100M SFP Fiber Uplink
Flexible copper and fiber connectivity for access and uplink. -
IEEE 802.3af/at PoE Support
Intelligently detects and powers compliant devices without damaging them. -
250m Long-Range PoE
Extends PoE transmission up to 250 meters (with long-range mode) — ideal for remote cameras. -
Watchdog Auto-Reset
Automatically reboots the switch if it freezes, ensuring stable operation for heavy-load applications like HD IP cameras. -
Plug-and-Play with Auto MDI/MDIX
Auto-negotiates 10/100Mbps and supports full/half duplex. No manual configuration required. -
Built-in High-Power Supply & Excellent Heat Dissipation
Ensures long service life and stable performance.
Applications
-
IP surveillance (IP cameras, remote monitoring)
-
Wireless AP coverage (small to medium areas)
-
VoIP telephony
-
Small office / home office networks
-
Long-distance camera deployments (250m PoE)
Specification
| Parameter | Technical Specification |
|---|---|
| Product Type | Fast Ethernet PoE Switch |
| Model | 4+1+1 PoE Switch |
| Ports | 4× PoE 10/100M RJ45 + 1× 10/100M RJ45 Uplink + 1× 100M SFP Fiber Uplink |
| PoE Standard | IEEE 802.3af / 802.3at |
| Max PoE Distance | Up to 250m (long-range mode) |
| Power Consumption | < 52W (full load) |
| Input Voltage | AC 176V–264V |
| Network Standards | IEEE 802.3, 802.3u, 802.3x |
| Switching Mode | Store-and-forward |
| MAC Address | Auto-learning & auto-updating |
| Duplex | Full-duplex & half-duplex |
| Auto Features | Auto MDI/MDIX, auto-negotiation |
| Watchdog | Auto-reset for freeze prevention |
| LED Indicators | PWR, POE (red), Link/Act (blue) |
| MTBF | 100,000 hours |
| Operating / Storage Temp. | -10℃ ~ +70℃ |
| Relative Humidity | 5% ~ 95% (non-condensing) |

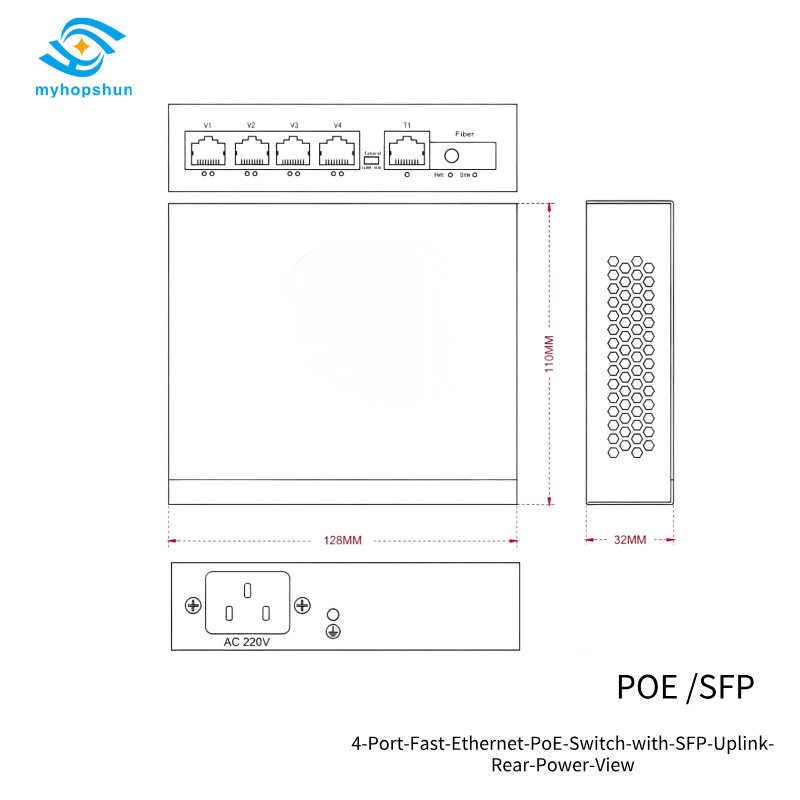

| Dimensions (W×D×H) | 128 × 110 × 32 mm (excluding protrusions) |
| Package Contents | Switch ×1, Power Cord ×1, User Manual ×1, Certificate ×1, Warranty Card ×1 |
Faq
Q1: What is a 4+1+1 Fast Ethernet PoE switch?
A: It is a Fast Ethernet PoE switch with 4 PoE ports, 1 RJ45 uplink, and 1 SFP fiber uplink. It delivers power and data over a single Ethernet cable.
Q2: How many PoE ports does this switch have?
A: 4× 10/100M PoE ports.
Q3: What is the maximum PoE distance?
A: Up to 250 meters in long-range mode.
Q4: What PoE standards are supported?
A: IEEE 802.3af and IEEE 802.3at.
Q5: What is the total power consumption?
A: Less than 52W at full load.
Q6: Does it have a fiber uplink?
A: Yes. It has 1× 100M SFP fiber uplink port.
Q7: Is it plug-and-play?
A: Yes. It supports auto MDI/MDIX and auto-negotiation.
Q8: What is the watchdog function?
A: It automatically resets the switch if it freezes, ensuring stable operation for heavy-load applications like HD IP cameras.
Q9: What is the operating temperature range?
A: -10℃ to +70℃.
Q10: What is the MTBF?
A: 100,000 hours.
Q11: What is the dimensions and weight?
A: 128×110×32mm (excluding protrusions).
Q12: What is included in the package?
A: Switch ×1, Power Cord ×1, User Manual ×1, Certificate ×1, Warranty Card ×1.
Q13: What are the typical applications?
A: IP surveillance, wireless AP coverage, VoIP, small office/home office networks, and long-distance camera deployments.
Q14: What is the switching mode?
A: Store-and-forward.
Q15: Does it support VLAN?
A: No, this is an unmanaged switch.
