HS016-8 16-Core Fiber Distribution Box | IP65 Outdoor FTTH Splitter Box | myhopshun
Product Description
Why is 16-core the “golden capacity” for FTTH terminal splitting?
In FTTH deployments, 8-core distribution boxes suit low-density scenarios, whereas units with more than 32 cores are often too bulky and suffer from low utilization rates. The 16-core configuration strikes the perfect balance for both new building construction and retrofitting projects in older residential areas: it meets the splitting requirements of a single building entrance or small building without resulting in wasted ports. The HS016-8 is a key ODN access point device specifically designed for this capacity range.

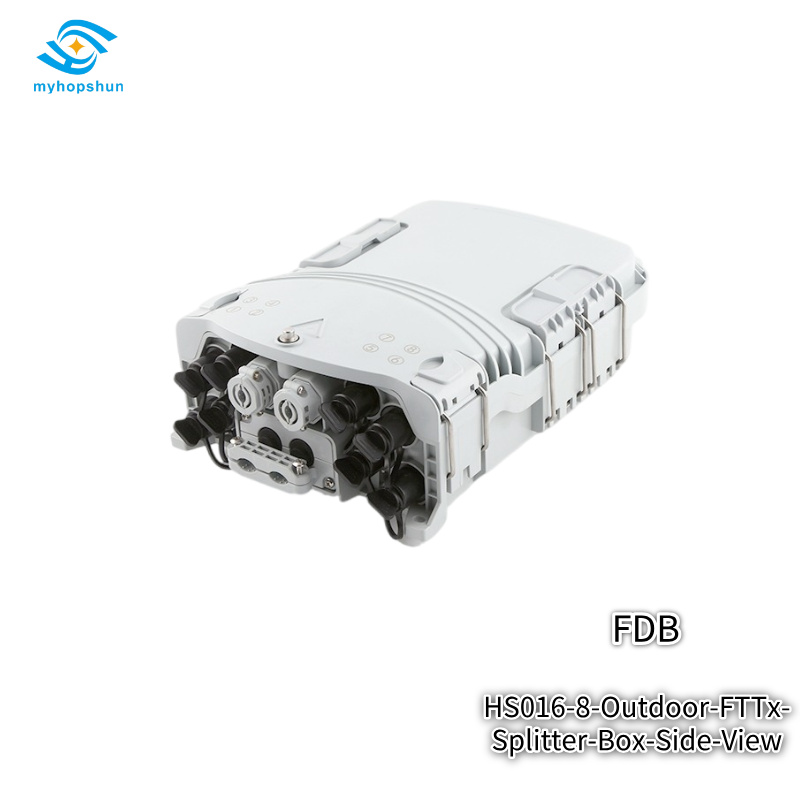

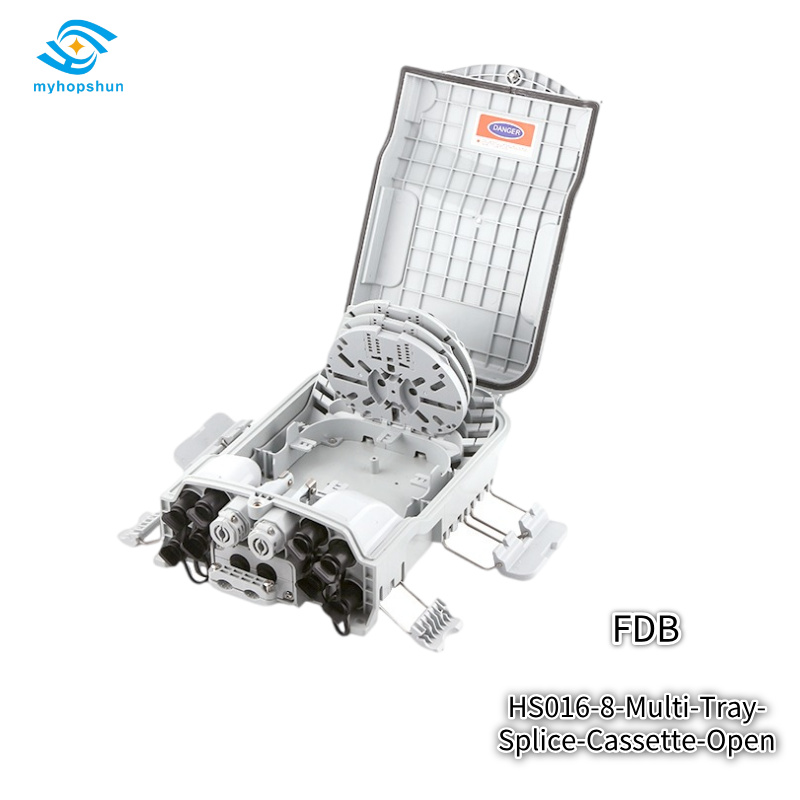

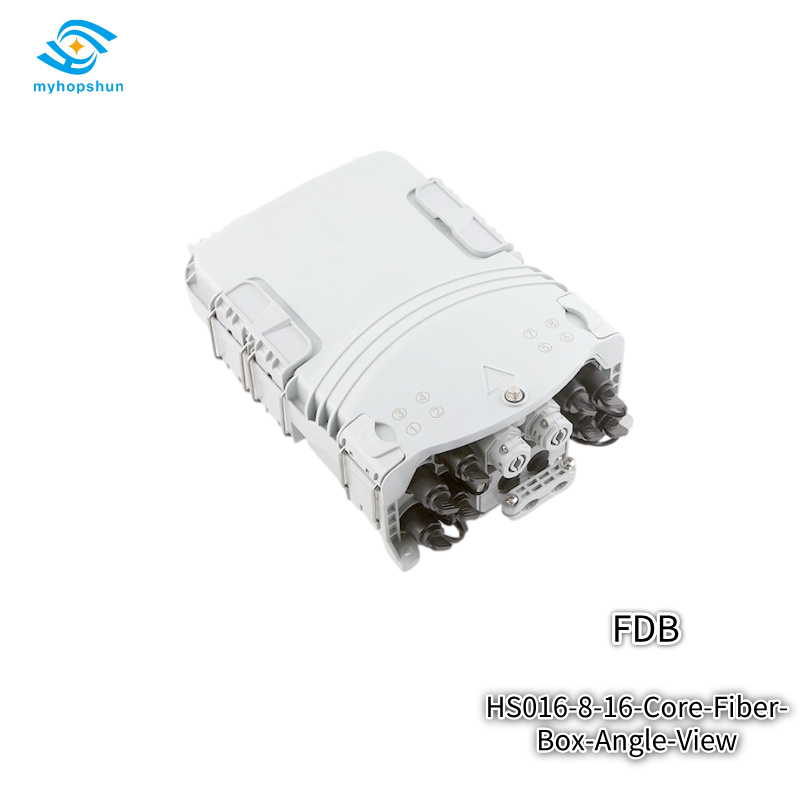

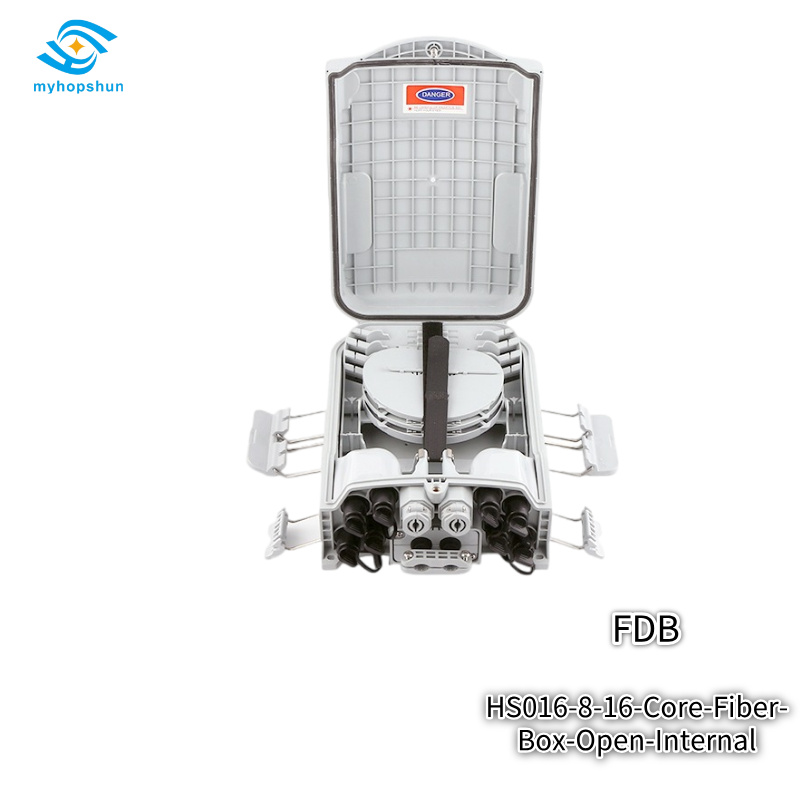

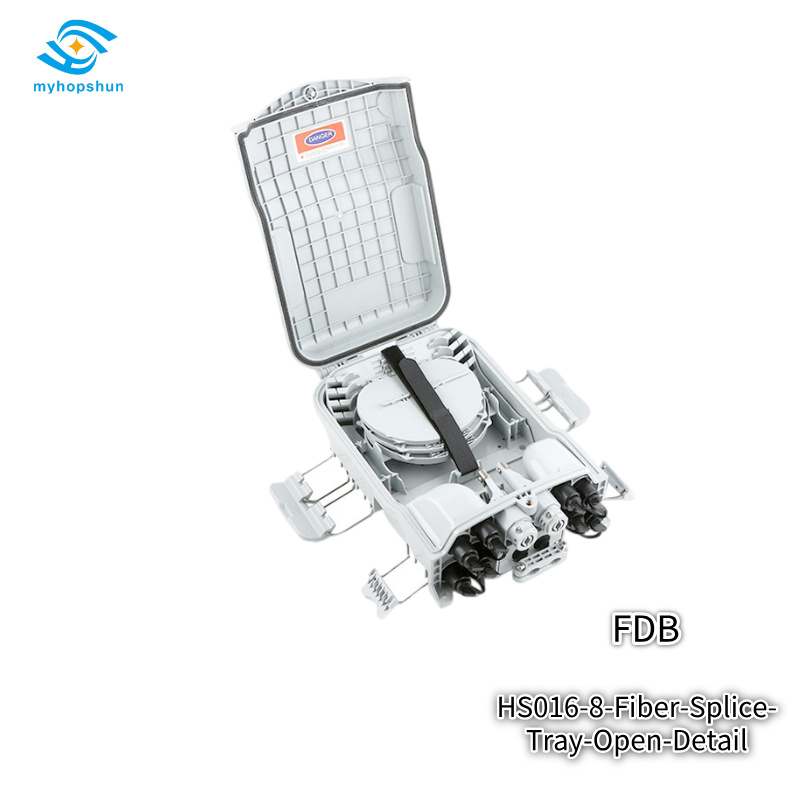

Multi-tray flip-style splicing structure: Upon opening the cover, multiple layers of white flip-style splicing trays are visible; each layer can be flipped and operated independently. This design prevents the 16 cores from being “crammed together,” allowing for more relaxed and efficient installation and maintenance.
Dedicated drop cable slots: Dedicated slots are provided for drop cables (butterfly-style cables), allowing them to be inserted directly into the box with connectors attached; this ensures reliable fixation and high deployment efficiency.
8 independent waterproof ports: A row of black waterproof ports at the bottom allows for independent sealing, ensuring that unused ports remain tightly sealed.
Factory-terminated pigtails: Supports factory-terminated drop cable pigtails, enabling high-quality, low-cost, and rapid deployment—ideal for large-scale construction projects.
Grounding withstand voltage ≥3000V (DC): The grounding busbar withstands ≥3000V (DC)/10mA/1min, offering industrial-grade lightning protection.
180° door opening angle: The cover opens a full 180°, facilitating two-handed operation for installers.
Environmental adaptability
Indoor operating temperature: -10°C ~ +40°C
Outdoor operating temperature: -40°C ~ +60°C
Indoor relative humidity: ≤85% (+30°C)
Outdoor relative humidity: ≤95% (+40°C)
Atmospheric pressure: 70kPa ~ 106kPa
Key application scenarios
Fiber access for new and existing buildings.
16-core splitting and distribution nodes in FTTH deployments.
ODN access points for indoor/outdoor wall-mounting or pole-mounting. Supports GB/T 7424 optical cables, ITU-T G.652/G.657 optical fibers, and YD/T 1997-2009 drop cables.
Specification
| Parameter | Technical Specification |
|---|---|
| Model | HS016-8 |
| Product Type | 16-Core Fiber Distribution Box (FTTH Splitter Box) |
| Dimensions (L×W×H) | 240 × 200 × 42 mm |
| Max Capacity | 16 Cores |
| Material | PC + ABS Alloy |
| Protection Level | IP65 |
| Installation Method | Wall-mounted / Pole-mounted (Indoor & Outdoor) |
| Door Opening Angle | 180° |
| Grounding Bar Withstand Voltage | ≥3000V (DC) / 10mA / 1min |
Environmental Performance
| Parameter | Indoor | Outdoor |
|---|---|---|
| Working Temperature | -10°C ~ +40°C | -40°C ~ +60°C |
| Relative Humidity | ≤85% (+30°C) | ≤95% (+40°C) |
| Atmospheric Pressure | 70kPa ~ 106kPa | 70kPa ~ 106kPa |
Cable & Fiber Compatibility
| Parameter | Specification |
|---|---|
| Compliant Cable Standard | GB/T 7424 |
| Compliant Fiber Standard | ITU-T G.652 & G.657 |
| Compliant Drop Cable Standard | YD/T 1997-2009 (Butterfly Drop Cable) |
Faq
Q1: What is the HS016-8 used for?
A: It is a 16-core fiber distribution box used as an optical access point in ODN networks, connecting distribution cables with butterfly drop cables in FTTH construction.
Q2: How many cores does the HS016-8 support?
A: Up to 16 cores, with multi-tray flip-style splice cassettes for easy fiber management.
Q3: What cable types are compatible?
A: It supports cables per GB/T 7424, fibers per ITU-T G.652 & G.657, and butterfly drop cables per YD/T 1997-2009.
Q4: Is it suitable for outdoor use?
A: Yes. It has an IP65 rating and supports both indoor (-10°C to +40°C) and outdoor (-40°C to +60°C) operation.
Q5: What is the grounding bar withstand voltage?
A: ≥3000V (DC) / 10mA / 1min.
Q6: What is the door opening angle?
A: 180°, allowing easy two-hand operation during installation and maintenance.
Q7: Does it support factory pre-terminated pigtails?
A: Yes. The HS016-8 supports factory pre-terminated leather wire pigtails for fast, high-quality, low-cost deployment.
Q8: What is the box size?
A: 240mm × 200mm × 42mm (L×W×H).
