HS012 Fiber Distribution Box IP65 FTTx Terminal with 12-Way Splitter 1000+ Mating Cycles myhopshun
Product Description
In FTTx networks, adapter ports in distribution boxes undergo frequent mating cycles—triggered by new subscriber activations, troubleshooting, or bandwidth upgrades. While standard distribution box adapters typically last for around 500 cycles, the HS012 supports over 1,000 cycles. This ensures low-loss connectivity over a 5–10 year operational lifespan—even with more than 10 operations per port annually—thereby significantly reducing long-term replacement costs.
Dual-Configuration Version: One Platform, Two Network Topologies
The HS012 is available in two versions:
HS012-A: Supports up to one 1×12 splitter and 16-core splicing; ideal for high-density splitting nodes.
HS012-B: Supports up to one 1×8 splitter and 8-core splicing; ideal for low-density, distributed access points.
Sharing the same form factor but offering two configurations, this unit allows operators to meet diverse deployment needs with a single enclosure model, simplifying inventory management.

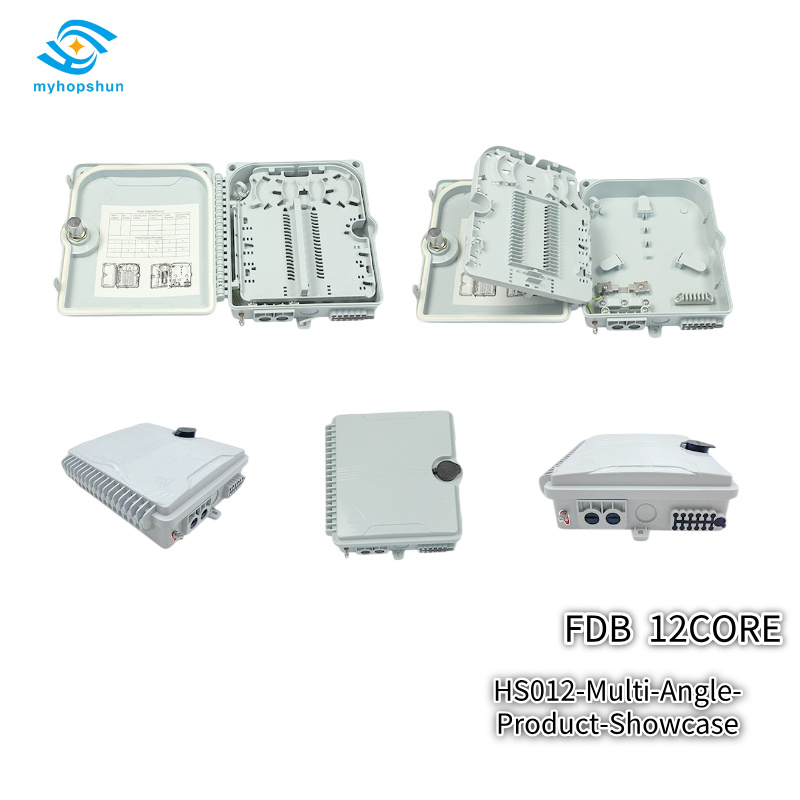

Design Highlights (Based on Actual Photos)

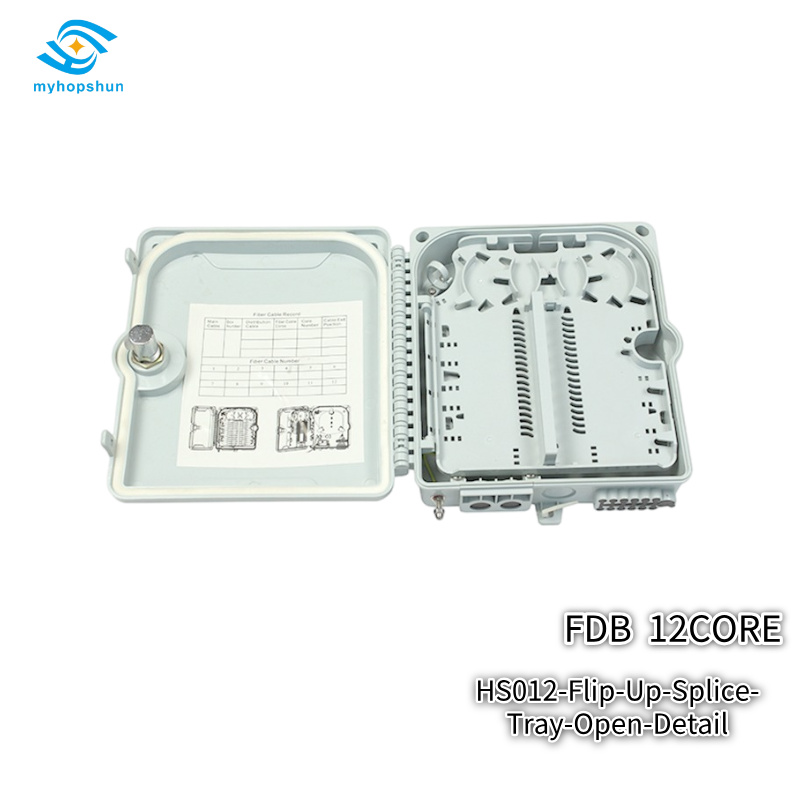

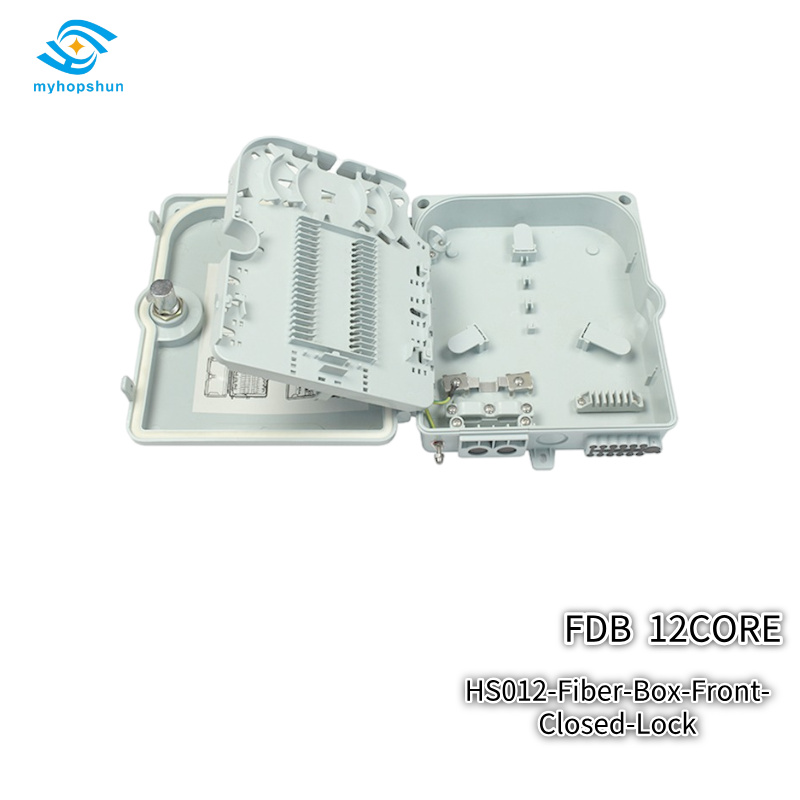

Flip-style Distribution Panel: Upon opening the lid, the white distribution panel can be flipped upward to reveal the feeder cable storage area beneath. Feeder cables can be routed via a dedicated “expression port” using the loop-through method, making maintenance and capacity expansion highly convenient.

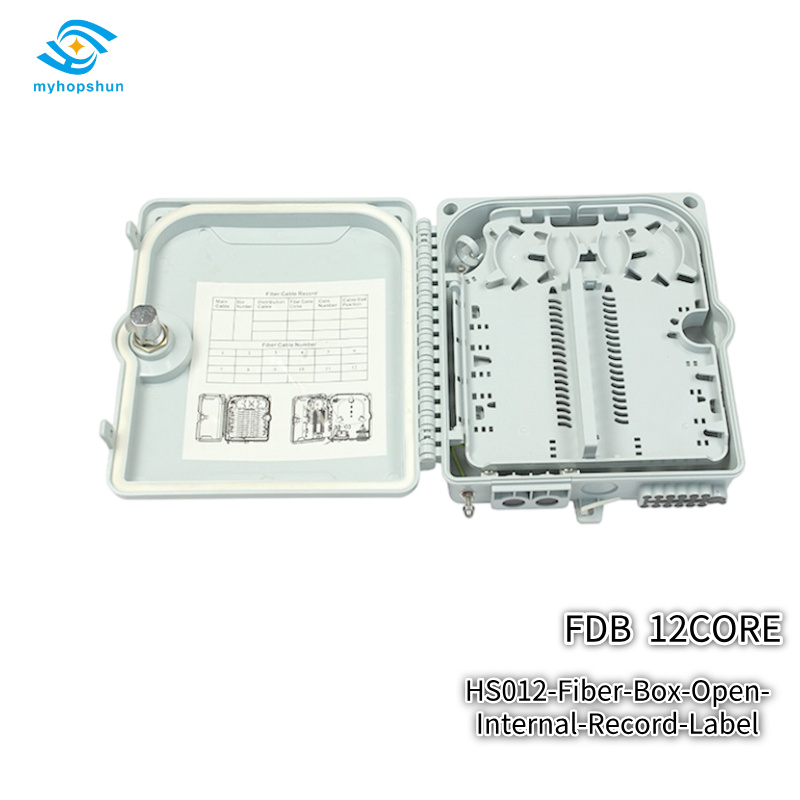

Installation Record Chart: A “Fiber Cable Record” chart is affixed to the inside of the lid. It includes fields for subscriber ID, date, installer name, and fiber number, facilitating easy network asset tracking.
SC Snap-in Adapters: Features a snap-in SC adapter design; adapters can be replaced without splicing or complex tools, ensuring high maintenance efficiency.
Independent Routing Channels: Separate routing paths for feeder cables, pigtails, and patch cords prevent interference and ensure proper fiber bend radius management.

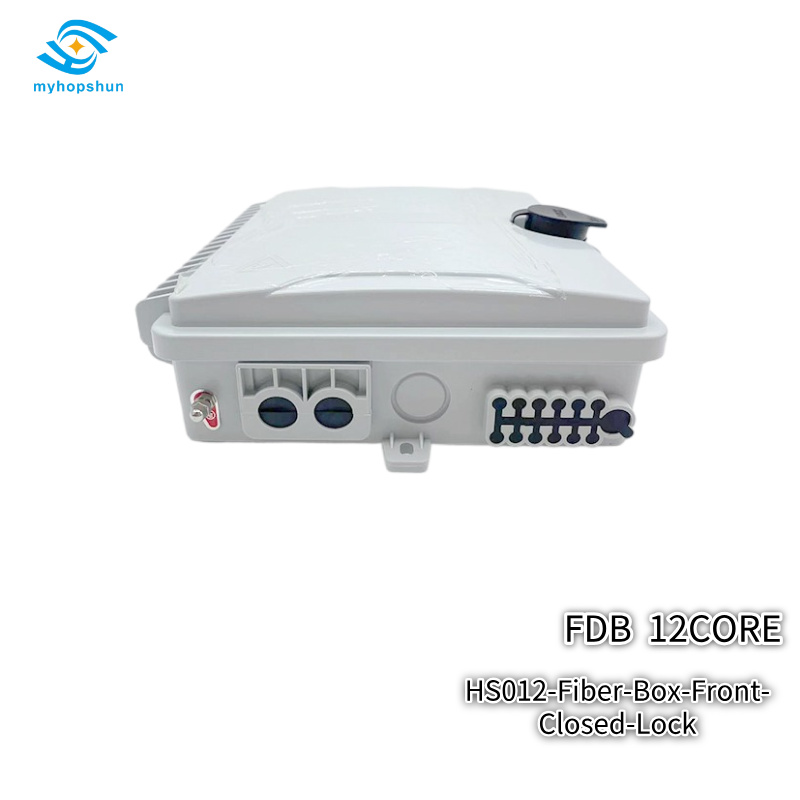

Independent Bottom Ports: The bottom panel features two large ports and a row of waterproof cable glands, allowing for flexible cable entry based on actual requirements.
Security Latch: A metal side latch prevents unauthorized access.
Optional Pole-Mounting Rings: Two “Easy pole rings” are available as optional accessories for pole-mounted installations. Environmental and Optical Specifications
Operating temperature: -40°C to +85°C
Relative humidity: ≤85% (+30°C)
Atmospheric pressure: 70 kPa to 106 kPa
Insertion loss: ≤0.2 dB
UPC return loss: ≥50 dB
APC return loss: ≥60 dB
Lightning Protection Specifications
Insulation resistance: ≥2 MΩ / 500 V (DC)
Withstand voltage: ≥3000 V (DC)/min; no breakdown or flashover
Key Application Scenarios
FTTH nodes requiring frequent subscriber activation or maintenance.
Carrier-grade FTTx termination points (requiring long service life and low maintenance costs).
Indoor/outdoor wall-mounted or pole-mounted drop connection points.
Projects requiring dual-configuration versions to simplify inventory management.
Specification
| Parameter | Technical Specification |
|---|---|
| Model | HS012 (Available in HS012-A and HS012-B) |
| Product Type | Fiber Distribution Box |
| Dimensions (A×B×C) | 225 × 200 × 65 mm |
| Installation Size (D×E) | 168 × 210 mm |
| Version A (HS012-A) | Max 1×12 Splitter + 16-Core Splice |
| Version B (HS012-B) | Max 1×8 Splitter + 8-Core Splice |
| Material | PC + ABS (Wet-proof, water-proof, dust-proof, anti-aging) |
| Protection Level | IP65 |
| Adapter Type | SC Cassette Type |
| Installation Method | Wall-mounted / Pole-mounted (Indoor & Outdoor) |
| Accessories | User Manual ×1, Key ×1, Accessories Bag ×1, Easy Pole Ring ×2 (Optional) |
Environmental & Optical Performance
| Parameter | Technical Specification |
|---|---|
| Working Temperature | -40℃ ~ +85℃ |
| Relative Humidity | ≤85% (+30℃) |
| Atmospheric Pressure | 70KPa ~ 106Kpa |
| Insertion Loss | ≤ 0.2 dB |
| UPC Return Loss | ≥ 50 dB |
| APC Return Loss | ≥ 60 dB |
| Mating Cycles | > 1000 times ⭐ |
Thunder-Proof Technical Data
| Parameter | Technical Specification |
|---|---|
| Insulation Resistance | ≥ 2 MΩ / 500V (DC) |
| Withstand Voltage | ≥3000V (DC)/min, no puncture, no flashover |
Faq
Q1: What is the HS012 used for?
A: It is a fiber distribution box used as a termination point for feeder cable and drop cable in FTTx communication networks.
Q2: What is the difference between HS012-A and HS012-B?
A: HS012-A supports up to 1×12 splitter + 16-core splice; HS012-B supports up to 1×8 splitter + 8-core splice. Both share the same enclosure.
Q3: What is the mating cycle life of the adapters?
A: >1000 times, significantly higher than typical 500-cycle boxes, making it ideal for nodes with frequent user activation and maintenance.
Q4: What adapter type does it support?
A: SC cassette type adapters, easy to install and replace.
Q5: What is the insertion loss?
A: ≤0.2dB.
Q6: What is the grounding withstand voltage?
A: ≥3000V (DC)/min between the grounding device and enclosure, no puncture or flashover.
Q7: What is the box size and installation size?
A: Box size 225×200×65mm; installation size 168×210mm.
Q8: Is it suitable for outdoor use?
A: Yes. It has IP65 protection and supports wall-mounted or pole-mounted installation for both indoor and outdoor use.
Q9: Does it come with pole mounting accessories?
A: Easy pole rings (×2) are available as an option.
Q10: What is the working temperature range?
A: -40℃ to +85℃, relative humidity ≤85% (+30℃).
